AAC vs NAAC Block Production Line: What Is the Difference?

Choosing between an AAC and a NAAC block production line depends primarily on the building materials your customers require, the applicable product standards, your available investment, and your expected production volume. If your market requires certified autoclaved aerated concrete (AAC), a conventional AAC production line is necessary; if non-autoclaved lightweight aerated blocks meet local building requirements, a NAAC line may offer a more practical starting point by eliminating the high-pressure autoclave stage. Before requesting equipment quotations, manufacturers should compare the complete production process, curing requirements, output, finished-block performance, and total project cost. For equipment options, explore the Hengde NAAC Block Production Line and compare configurations against your target market.

What Is the Main Difference Between an AAC and NAAC Block Production Line?

The main difference is the curing process. AAC stands for autoclaved aerated concrete, while NAAC stands for non-autoclaved aerated concrete. Although both technologies produce lightweight, porous concrete blocks, they do not produce automatically interchangeable building materials.

According to ASTM C1693-11R25, the specification for AAC identifies high-pressure steam curing as part of the manufacturing process. NAAC production, by contrast, uses a different curing approach without a high-pressure autoclave.

AAC vs NAAC: Production Line Comparison

The table describes general process differences rather than a universal cost or performance guarantee. Actual plant configuration depends on the selected production technology and project requirements.

For buyers, the important distinction is that removing the autoclave does not simply make an AAC line cheaper. It changes the curing process and the product being manufactured, so the finished blocks must be evaluated against their intended applications.

Which Production Process Should You Choose for Your Factory?

The two production lines share several upstream operations, but their curing systems require different equipment planning.

How Does an AAC Production Line Work?

A conventional AAC production line typically follows these stages:

1. Raw material preparation: Cement, lime, gypsum, siliceous materials, water and an aerating agent are prepared according to the production formula.

2. Batching and mixing: The ingredients are measured and mixed to create a consistent slurry.

3. Molding and aeration: The slurry is poured into molds and expands through the aeration process.

4. Pre-curing: The green body develops enough stability for subsequent handling and cutting.

5. Cutting: Cutting equipment produces the required block dimensions.

6. Autoclave curing: The blocks undergo high-pressure steam curing to develop the required material structure.

7. Finished-product handling: The blocks are inspected, transferred and prepared for storage or shipment.

ASTM C1693 identifies high-pressure steam curing as a defining part of AAC production. Therefore, buyers should include the autoclave, steam system, handling equipment and related installation requirements when requesting an AAC quotation.

How Does a NAAC Production Line Work?

A typical NAAC production line includes:

1. Raw material batching and preparation.

2. Mixing and aeration.

3. Mold pouring and forming.

4. Pre-curing and green-body stabilization.

5. Cutting to the required dimensions.

6. Demolding and material handling, where applicable.

7. Controlled non-autoclaved curing.

8. Quality inspection, storage and dispatch.

The most significant change is the curing stage. Instead of relying on high-pressure steam autoclaving, NAAC production depends on a suitable mix design, appropriate curing conditions and sufficient time for the material to develop its required properties.

For equipment buyers, this affects the number of molds needed, curing-area capacity, work-in-process inventory and production scheduling. A line advertised at a certain daily capacity should not be evaluated solely by its mixing or cutting speed.

Procurement recommendation: Ask suppliers to provide a complete process flow diagram and identify the equipment required at every stage. Confirm whether the quoted capacity represents theoretical equipment output, green-block volume or finished, quality-approved production.

Is a NAAC Production Line Cheaper Than an AAC Production Line?

A NAAC line can reduce initial equipment investment by removing the autoclave and its associated steam-generation system. However, the actual savings depend on the plant configuration, production capacity, curing requirements, local energy prices and construction costs.

The right comparison is the total installed project cost, not the price of the main machine alone.

Which Costs Should Buyers Compare?

NAAC should not automatically be assumed to have the lowest total operating cost. Longer curing periods can increase work-in-process inventory and space requirements, while an AAC plant may benefit from a production schedule designed around established autoclave cycles.

How Can Buyers Calculate the Actual Investment Difference?

Request itemized quotations for both technologies and calculate:

Total project investment = Equipment + Installation + Civil works + Utilities + Commissioning + Initial operating capital

Then compare the estimated cost per cubic meter of saleable blocks:

Unit production cost = Total production cost ÷ Saleable output

Use the same accounting period and production assumptions for both quotations. Include raw materials, labor, electricity, fuel, maintenance, rejected products, curing inventory and packaging.

A supplier's quoted daily capacity is not necessarily its guaranteed saleable output. Ask for the operating assumptions behind the capacity estimate, including working hours, curing time, product dimensions and expected production losses.

Which Production Capacity Is Suitable for Your Business?

Production capacity should match realistic sales demand rather than an ambitious future target. An oversized line can tie up capital and create excess inventory, while an undersized line may restrict growth once orders increase.

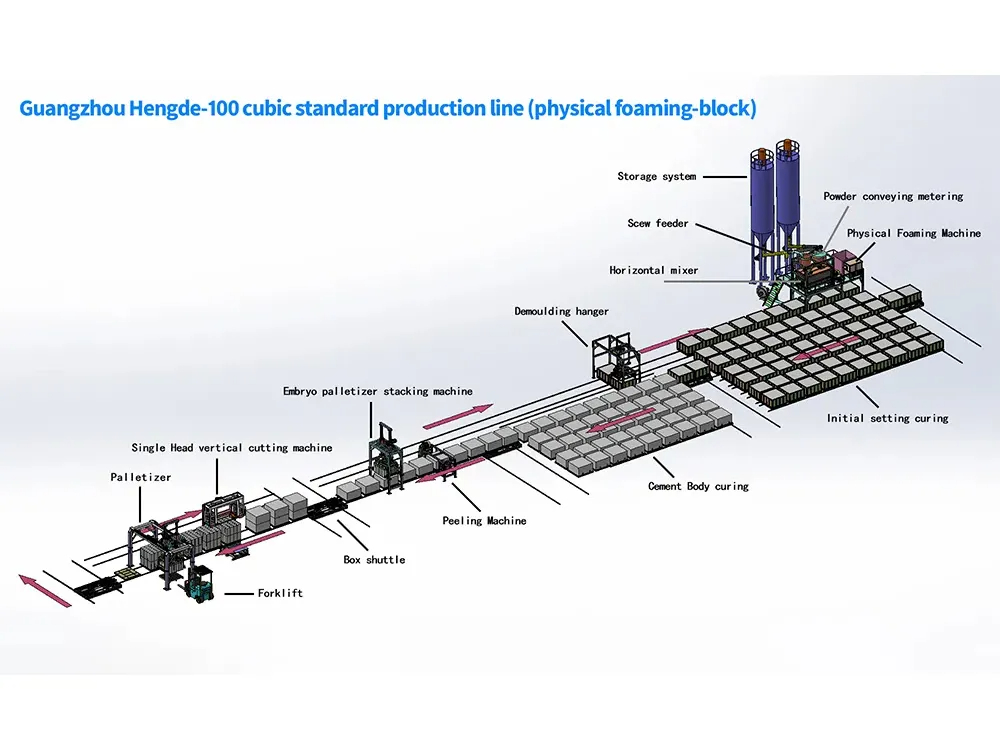

Hengde publishes NAAC and lightweight block production line configurations at several nominal daily capacities.

These are published nominal capacity options, not independent guarantees of actual production. Confirm the precise configuration and guaranteed output in the supplier's technical proposal.

For example, a manufacturer targeting 50 m³ of saleable blocks per working day should not purchase a line based solely on its 50 m³/day label. The buyer should confirm whether that figure accounts for curing, rejected products, planned downtime and the specific block dimensions.

How Much Curing Space Does a NAAC Factory Need?

The answer depends on the daily production volume and the time required before blocks can be released from curing.

As a preliminary planning calculation:

Required curing inventory = Daily production × Curing days

For illustration, if a plant produces 50 m³/day and its validated process requires 7 days of curing before release, the theoretical curing inventory is 350 m³. This calculation excludes additional space for access routes, handling, rejected blocks and safety clearances.

The seven-day period is an illustrative assumption, not a universal NAAC curing requirement. Actual curing time must be established through the selected formulation, test results and applicable product specifications.

This is an important purchasing consideration because a line without an autoclave may still require substantial floor space and working capital.

Do AAC and NAAC Blocks Have the Same Strength and Quality?

No. Buyers should not assume that blocks made by the two processes have identical compressive strength, dimensional stability, shrinkage, water absorption or other performance characteristics.

AAC undergoes high-pressure steam curing, while NAAC relies on a different curing process. The resulting properties depend on the raw materials, mix proportions, density, curing conditions, manufacturing controls and testing methods.

Which Technical Parameters Should Be Included in a Purchase Specification?

Avoid relying on generic strength ranges or claims that one process is always stronger. The acceptable values depend on the product specification and application.

What Are the Risks of Choosing the Wrong Production Technology?

There are several risks that can outweigh an apparent saving on machinery:

• Regulatory non-compliance: A non-autoclaved block may not satisfy a specification that explicitly requires AAC.

• Insufficient strength: Blocks may fail to meet the requirements of the intended wall system.

• Dimensional inconsistency: Poor cutting accuracy or unstable green bodies can increase waste and installation costs.

• Curing-related defects: An unsuitable curing regime may lead to inadequate strength development or cracking.

• Unexpected working capital: Longer curing periods can delay shipment and increase inventory requirements.

Before approving a machine order, define the intended block application, required test values and applicable local standards. If the blocks will be used in load-bearing walls or regulated construction systems, obtain confirmation from the relevant engineer or approval authority before selecting NAAC.

Which Production Line Is Better for Different Applications?

The appropriate technology depends on what customers are buying and which performance requirements they must meet.

When Should You Choose an AAC Production Line?

AAC is generally the appropriate choice when:

• Customers explicitly require autoclaved aerated concrete.

• The project specification references an AAC standard.

• The product must meet defined performance and certification requirements for an established building system.

• The investment plan supports the required pressure-curing infrastructure.

• The factory has sufficient demand to justify the complete production system.

The main limitation is the additional equipment, installation, utility and compliance requirements associated with autoclaving.

When Should You Consider a NAAC Production Line?

NAAC is worth evaluating when:

• Local regulations permit the proposed non-autoclaved lightweight blocks.

• Customers accept the product based on verified performance rather than an AAC designation.

• Avoiding autoclave equipment is an important investment consideration.

• The factory can accommodate the required curing inventory.

• The production formula and curing process can consistently meet the target specifications.

NAAC is not automatically suitable for every lightweight-block application. Buyers must verify product performance, market acceptance and regulatory requirements before committing to the technology.

How Can Hengde Help You Evaluate a NAAC Equipment Configuration?

Hengde provides non-autoclaved aerated concrete and lightweight block production line solutions. Its published equipment information covers multiple capacity configurations, including 30 m³/day, 50 m³/day, 100 m³/day, 200 m³/day and 300 m³/day options.

For a project-specific quotation, we recommend identifying the intended product, target daily output, raw material availability, block dimensions, target density and factory space before finalizing the equipment configuration.

Review the Hengde Lightweight Block Production Line to explore available options.

When comparing supplier proposals, request a complete equipment list, plant layout, utility requirements, expected curing schedule, technical specifications, commissioning scope and warranty terms. These details help determine whether the proposed line is suitable for your actual manufacturing conditions.

FAQs About AAC and NAAC Production Lines

Q1. Can I Produce AAC Blocks Without an Autoclave?

Not if the product must be manufactured and specified as conventional autoclaved aerated concrete. A non-autoclaved line can produce lightweight aerated concrete blocks, but the resulting product must be evaluated under the appropriate specification rather than automatically sold as AAC.

Q2. Is a NAAC Block Production Line Suitable for a Small Factory?

It can be suitable when the local market accepts non-autoclaved blocks and the factory can meet the required product specifications. Hengde publishes a 30 m³/day configuration, but buyers should confirm the actual equipment scope, staffing needs and saleable output before purchasing.

Q3. Does NAAC Equipment Require Less Factory Space Than AAC Equipment?

Removing the autoclave and steam-generation system can simplify part of the factory layout. However, NAAC may require considerable curing and storage space, so the total site-area difference depends on curing time, handling arrangements and production capacity.

Q4. How Do I Compare AAC and NAAC Machine Prices Fairly?

Request itemized quotations that include equipment, installation, civil works, utilities, commissioning and initial operating requirements. Then compare the estimated cost per cubic meter of saleable blocks using the same capacity, product and operating assumptions.

Q5. Can NAAC Blocks Be Used for Load-Bearing Walls?

Only when the specific product has demonstrated the required performance and is permitted by the applicable building regulations and engineering design. Buyers should not assume that every NAAC formulation is suitable for load-bearing applications; verify compressive strength, durability and relevant approvals before ordering production equipment.

Q6. What Information Should I Send a Supplier to Obtain an Accurate Quotation?

Provide your target daily output, intended block dimensions, target density and strength, raw materials, factory dimensions, automation preference and destination market. Also specify whether your customers require certified AAC or will accept non-autoclaved lightweight blocks, because this decision determines the appropriate production technology.

Conclusion: Make the Product Specification the First Purchasing Decision

AAC and NAAC production lines differ most significantly in their curing systems, infrastructure requirements and the products they manufacture. AAC is the appropriate route when high-pressure steam-cured AAC is required, while NAAC can be a practical alternative when non-autoclaved blocks meet the intended application's technical and regulatory requirements.

For investors comparing equipment, the most reliable decision process is to establish the required product standard first, calculate realistic saleable output second, and compare complete project costs third. This approach helps avoid purchasing a low-cost production line that cannot manufacture the product your customers or local regulations require.

To discuss a suitable non-autoclaved lightweight block production configuration, contact Hengde at hengdegz@gmail.com or visit www.hengdemachine.com.
