Scene Description
This standard version of the 100 cubic meter block production line is highly automated and suitable for small-scale block production needs.
Basic Parameters

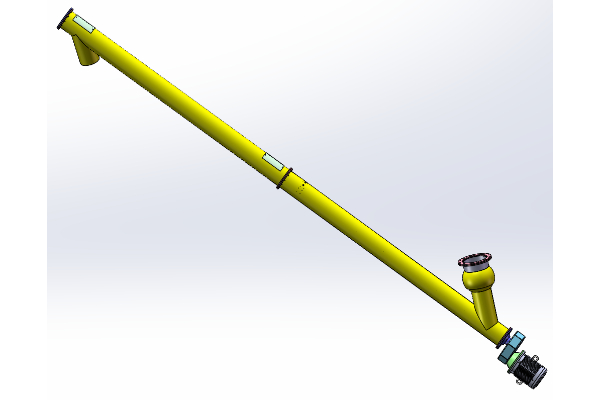

| 1-1 | Screw feeder | HDSL-001: Size: 8000*350*1100 | 22P | HaiZhiHui Machine |  |

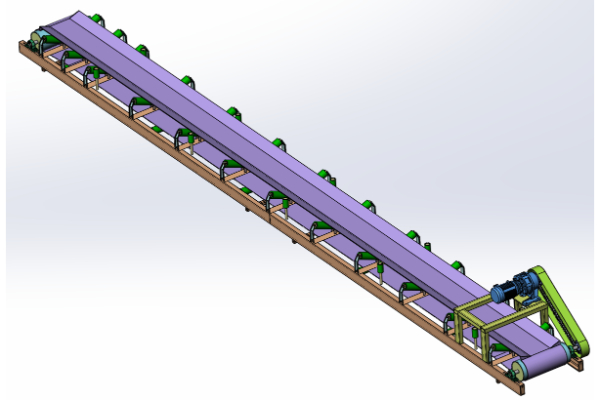

| 1-2 | Belt Conveyor | HDPDA-001: Size: 9000*800*800 | 2.20 | HaiZhiHui Machine |  |
| 1-3 | Power Metering System | HDFL-001: Size: φ1310*H1950 | 0.55 | HaiZhiHui Machine |  |

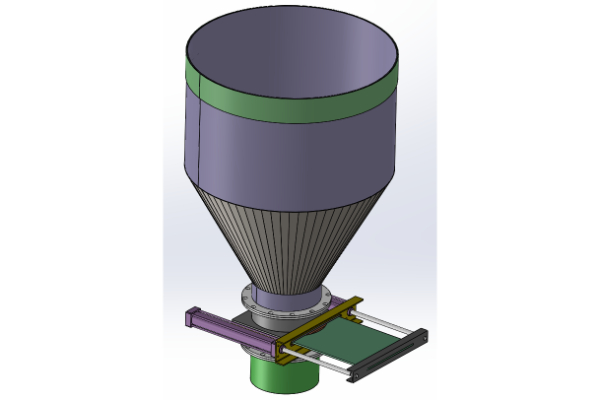

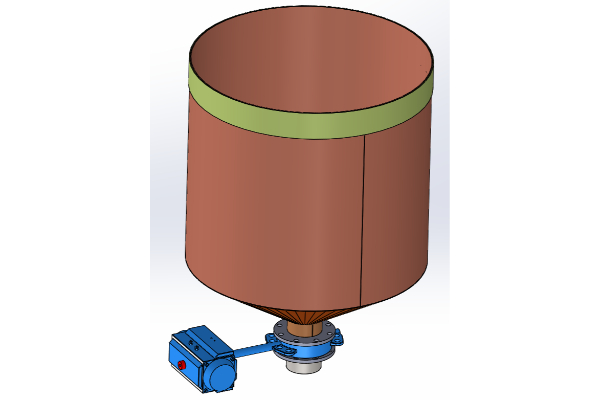

| 1-4 | Matching Metering for Conveyor | HDSS-001hopper，size: φ1000*1500 | 0.55 | HaiZhiHui Machine |  |
| 1-5 | Water Metering System | HDSL-001: Size: φ1100*H1140 | 0.55 | HaiZhiHui Machine |  |

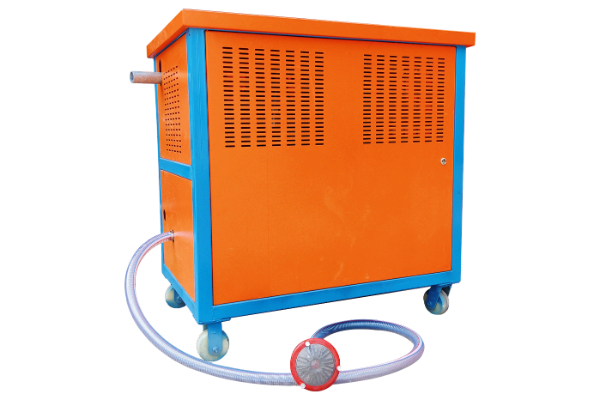

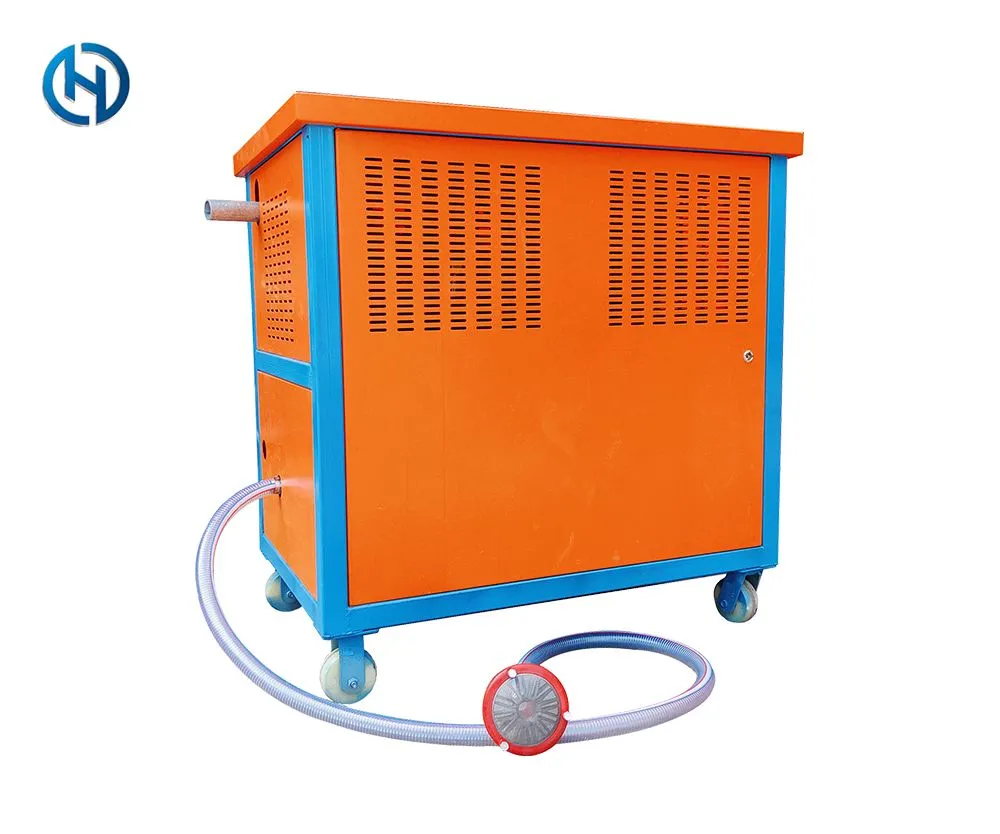

| 1-6 | Physical Foaming Machine | HDKWF1-001: Size: 1150*750*1140 | 7.50 | HaiZhiHui Machine |  |

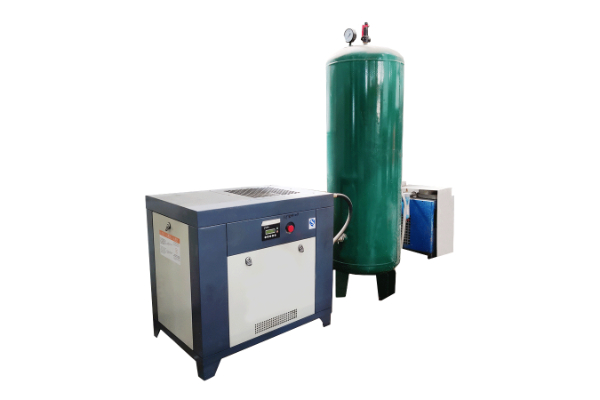

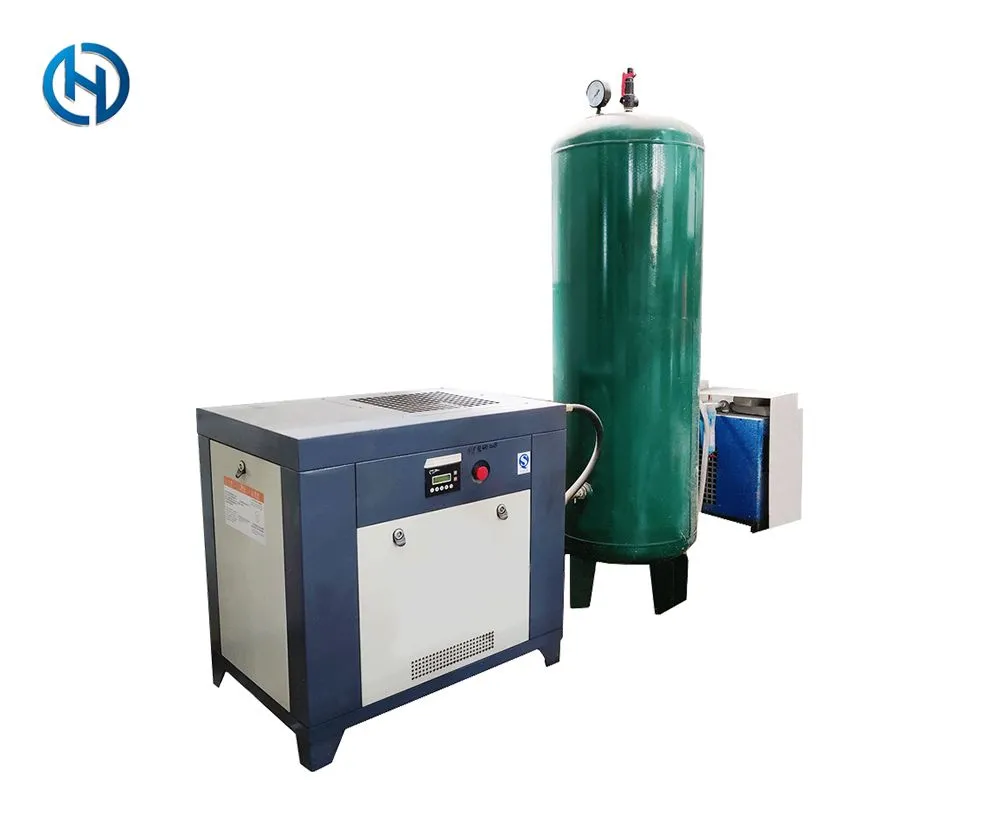

| 1-7 | air compressor | HDKY-001 Size: 1500*500*2000mm， gas tank0.8cubics*1 | 15.00 | HaiZhiHui Machine |  |
| 1-8 | Operation Platform (DO NOT Supply) | Size: 6000*6400*2600 | Customers provide drawings from manufacturers |  | |

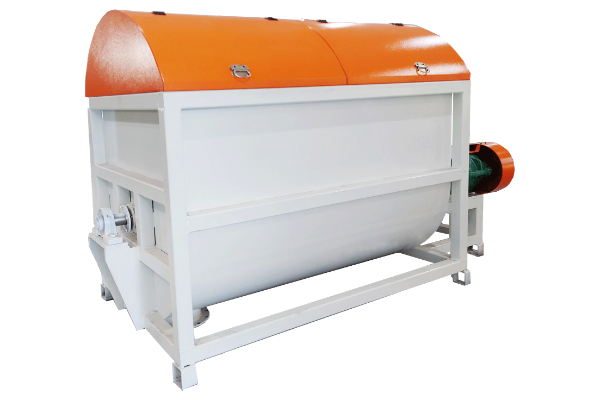

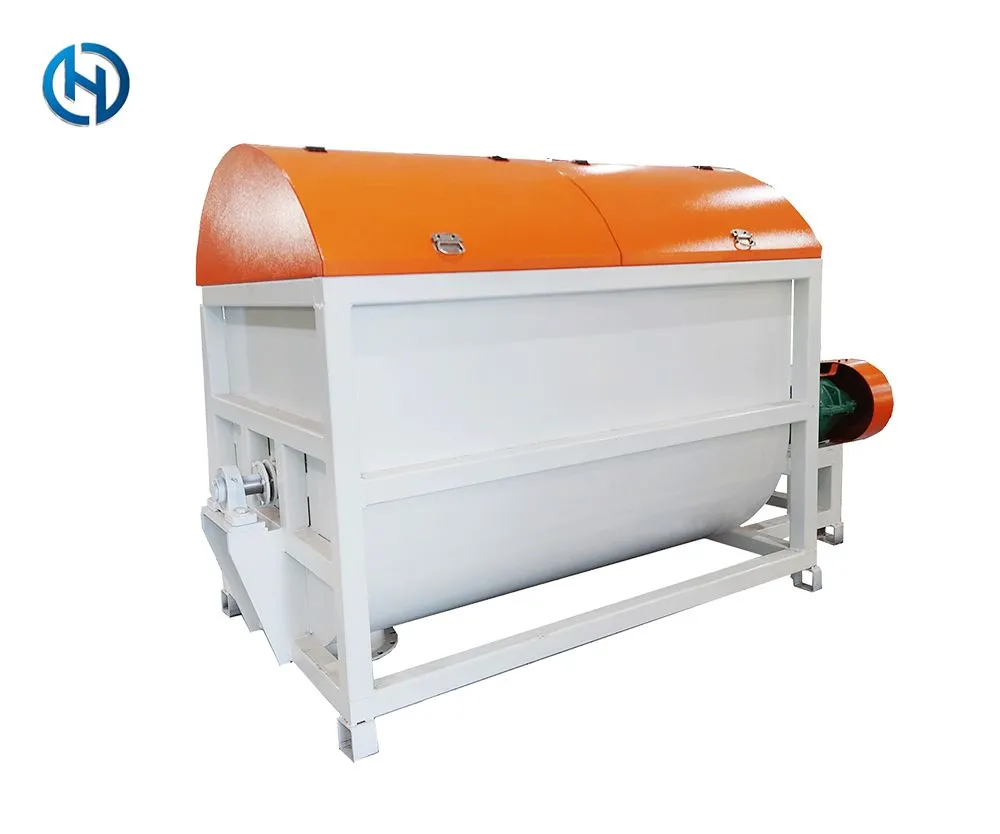

| 1-9 | Special mixer | EPSA-1 Size: 2000*1200*1200 | 22.00 | HaiZhiHui Machine |  |

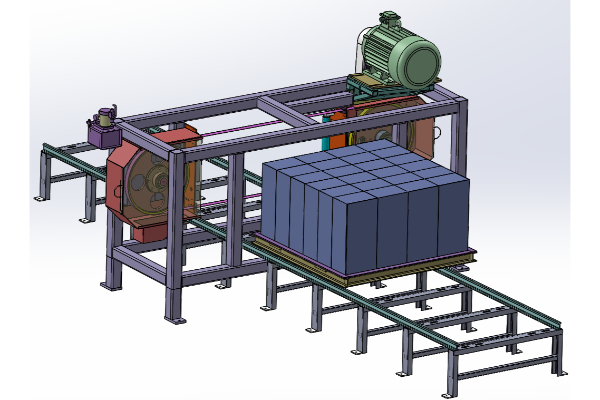

| 2-1 | Single-Heads Vertical cutting machine | HDSHM01-01 Size: 4350*3300*3650（High precision belt rotation) | 11.10 | HaiZhiHui Machine |  |
| 2-2 | Peeling Machine | HDOSD1-001 Size: 3000＊1000＊2100(including power line) | 22.00 | HaiZhiHui Machine |  |

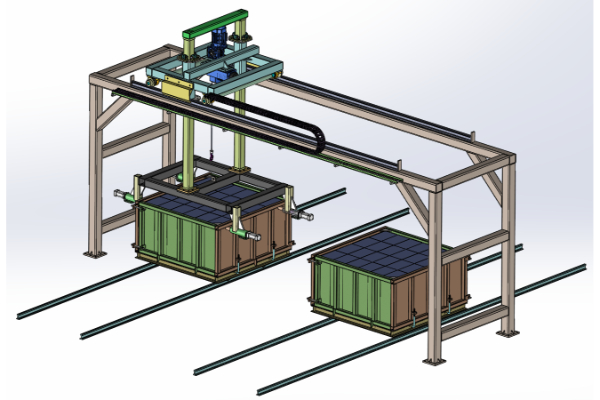

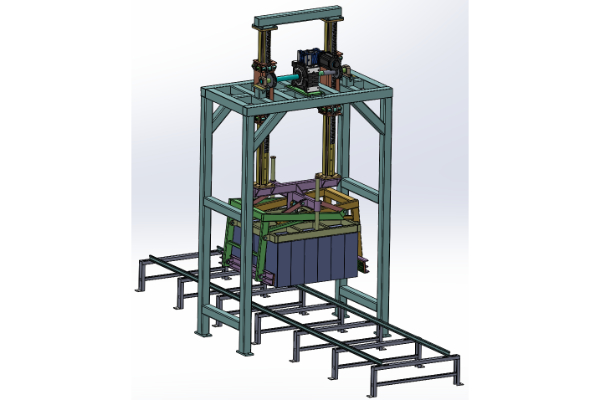

| 3-1 | Demoulding hanger (1200 wide block square mould box) | HDTH-003 Dimensions: 5600*1530*3100 | 3.00 | HaiZhiHui Machine |  |

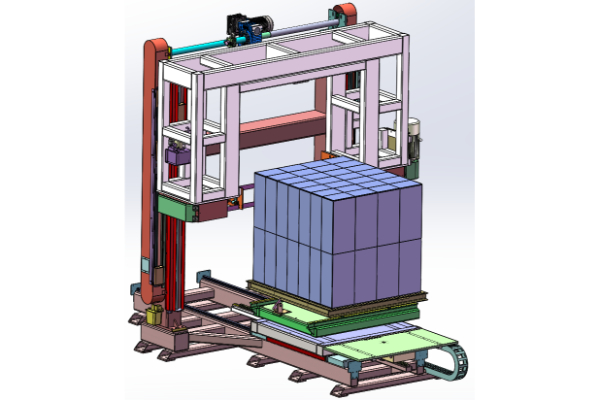

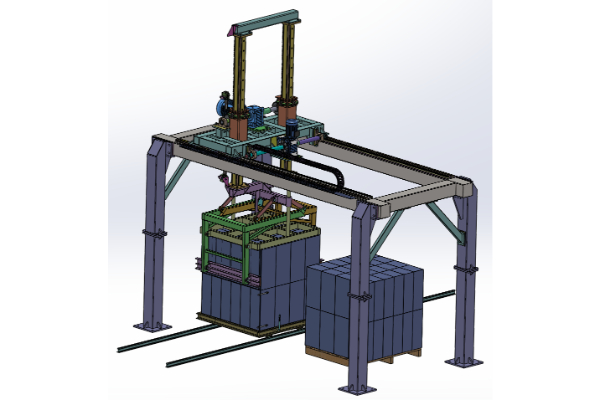

| 3-2 | Auto-Palletizing machine | HDTH-006 Dimensions: 4800*2600*3800 | 6.20 | HaiZhiHui Machine |  |
| 3-3 | Embryo Stacking machine | HDTH-005 Dimensions: 2430*1330*3900 | 7.50 | HaiZhiHui Machine |  |

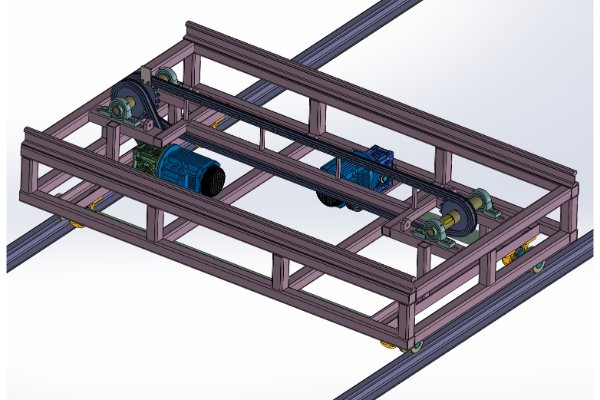

| 4-1 | Ferry car | HDBD2-001 Size: 1800*1080*400 | 15P | HaiZhiHui Machine |  |

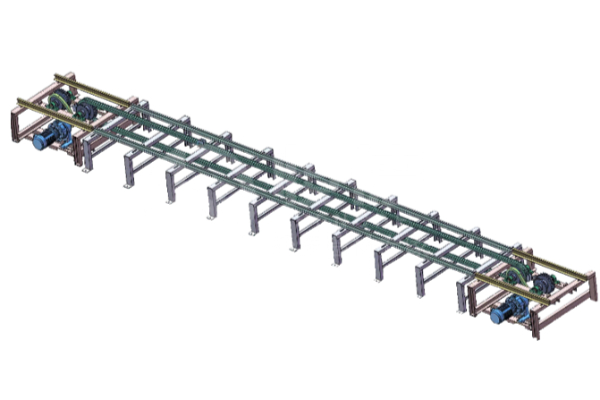

| 4-2 | Demolding line | HDZD-001 Size: 6000*1080*470 | 2.2P | HaiZhiHui Machine |  |
| 4-3 | Return mold production line | HDZD-001 Size: 6000*1080*470 | 1.5P | HaiZhiHui Machine |  |
| 4-4 | Pouring line | HDZD-001 Size: 6000*1080*470 | 1.5P | HaiZhiHui Machine |  |
| 4-5 | Automatic feeding line | HDZD-001 Size: 4m*1.1m | 0.3P | HaiZhiHui Machine |  |
| 4-6 | Automatic discharging line | HDZD-002 Size: 4m*1.1m | 0.3P | HaiZhiHui Machine |  |

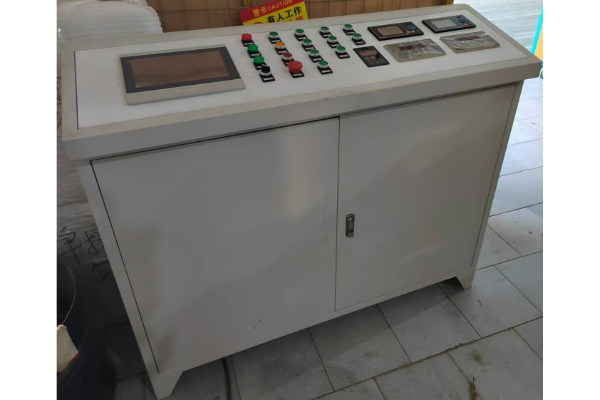

| 5-1 | Platform PLC main control cabinet | HDKZ1-001 Size: 1300*1100*400 | HaiZhiHui Machine |  | |

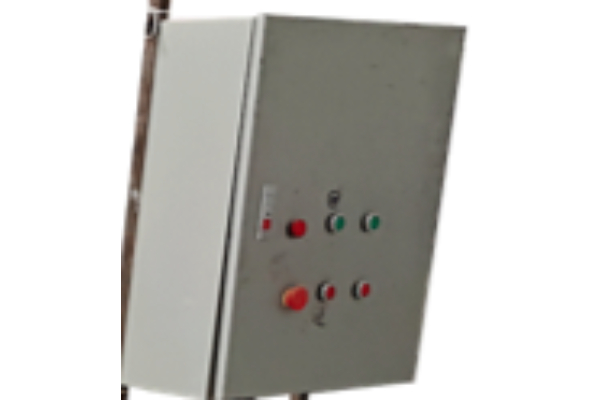

| 5-2 | Foaming Electrical cabinet | HDCBD1-001 Size: 700*500*400 | HaiZhiHui Machine |  | |

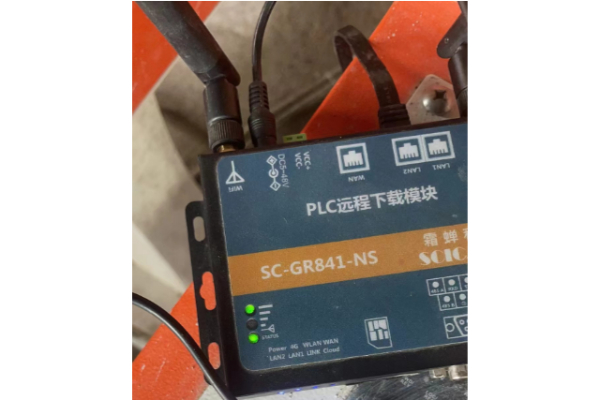

| 5-3 | Remote moudule | Pouring raw material into the square container. | HaiZhiHui Machine |  | |

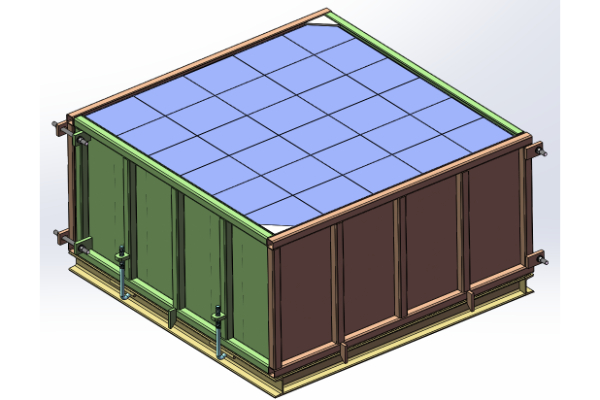

| 5-4 | Mold | HDCM1-002 Cake Size: 1220*1220*630（Complete Set） | HaiZhiHui Machine |  |
The 100m³/Day NAAC Block Production Line is designed for medium-scale lightweight block manufacturers who need stable output, improved production efficiency and a practical non-autoclaved block production solution. As a Medium Non-Autoclaved Aerated Concrete Plant, this line is suitable for producing lightweight aerated concrete blocks without autoclave curing.
Hengde provides customized 100m³/Day NAAC Block Production Line solutions for building material factories, regional block suppliers and construction material manufacturers. The production line can be configured according to raw materials, block size, target density, workshop layout, labor conditions and automation requirements.
The Medium Non-Autoclaved Aerated Concrete Plant is suitable for customers who need higher output than a small 30m³/day or 50m³/day line, but do not require a large-scale high-capacity plant. With a 100m³/day production capacity, this line helps manufacturers build a more stable supply capacity for local and regional construction markets.
The 100m³/Day NAAC Block Production Line can support continuous lightweight block production with a balanced equipment configuration. It is a practical choice for customers who want to improve productivity while keeping plant investment and operation complexity manageable.
A complete 100m³/Day NAAC Block Production Line includes batching, mixing, foaming, pouring, cutting, demolding, curing support, handling and stacking equipment. Hengde can match the equipment according to the required capacity, automation level and factory conditions.
The batching system is used for accurate weighing and feeding of raw materials. Stable batching helps improve formula consistency, block density control and final product quality.
The mixing and foaming system prepares lightweight aerated concrete slurry. Uniform mixing and stable foaming are important for producing porous lightweight blocks with consistent structure and performance.
The pouring system transfers the prepared slurry into molds for forming. Hengde can customize mold dimensions according to the required block size and local building material demand.
The cutting system processes the formed green body into required block sizes. Accurate cutting helps improve dimensional consistency, reduce waste and support easier wall installation.
The demolding system helps separate formed blocks from molds efficiently. For a medium-capacity NAAC plant, stable demolding is important for keeping the production process continuous.
As a Medium Non-Autoclaved Aerated Concrete Plant, this production line does not require high-pressure autoclave curing. Hengde can provide curing process suggestions based on formula design, local climate and plant layout.
The handling and stacking system supports block transfer, curing arrangement, storage and finished product delivery. The configuration can be adjusted based on labor availability and required automation level.
Raw material preparation and batching
Mixing, foaming and slurry preparation
Pouring into molds
Pre-curing and green body forming
Cutting into required block sizes
Demolding and non-autoclaved curing support
Stacking, storage and finished product delivery
Blocks produced by the 100m³/Day NAAC Block Production Line can be used in many lightweight wall material projects. The finished products are suitable for applications requiring lower wall weight, thermal insulation, easy handling and efficient construction.
Interior partition walls
Non-load-bearing exterior walls
Lightweight concrete wall blocks
Thermal insulation wall materials
Residential housing projects
Commercial building partitions
Industrial building wall materials
Regional construction material supply
Energy-saving building material projects
The 100m³/day capacity is suitable for manufacturers who need stable daily output and stronger market supply ability. It is a good option for factories moving from small-scale production to medium-scale lightweight block manufacturing.
This Medium Non-Autoclaved Aerated Concrete Plant is designed for NAAC block production without autoclave curing. It helps reduce autoclave-related equipment investment and simplify the plant configuration.
The 100m³/Day NAAC Block Production Line provides a balanced solution between production capacity, equipment cost and factory operation. It is suitable for customers who need reliable output without immediately investing in a large plant.
Hengde can customize molds, cutting systems and production layout according to required block size, density, strength target and local construction standards.
The production line can be configured with different automation levels according to labor cost, production requirements and investment budget. This allows customers to build a plant that matches their actual operation conditions.
| Item | Reference Configuration |
|---|---|
| Product Name | 100m³/Day NAAC Block Production Line |
| Plant Type | Medium Non-Autoclaved Aerated Concrete Plant |
| Daily Capacity | Approx. 100m³/day |
| Finished Product | NAAC lightweight aerated concrete blocks |
| Curing Method | Non-autoclaved curing support |
| Automation Level | Customized according to project requirements |
| Application | Partition walls, non-load-bearing walls, lightweight wall materials |
| Customization | Block size, mold system, cutting system, layout and handling system |
Hengde provides complete support for each 100m³/Day NAAC Block Production Line, including equipment selection, layout planning, process communication, installation guidance and operator training.
Before providing a production line proposal, our team can discuss your raw materials, target capacity, required block specifications, factory area, labor conditions and future expansion plan. This helps ensure the Medium Non-Autoclaved Aerated Concrete Plant is matched to your real production needs.
Solution

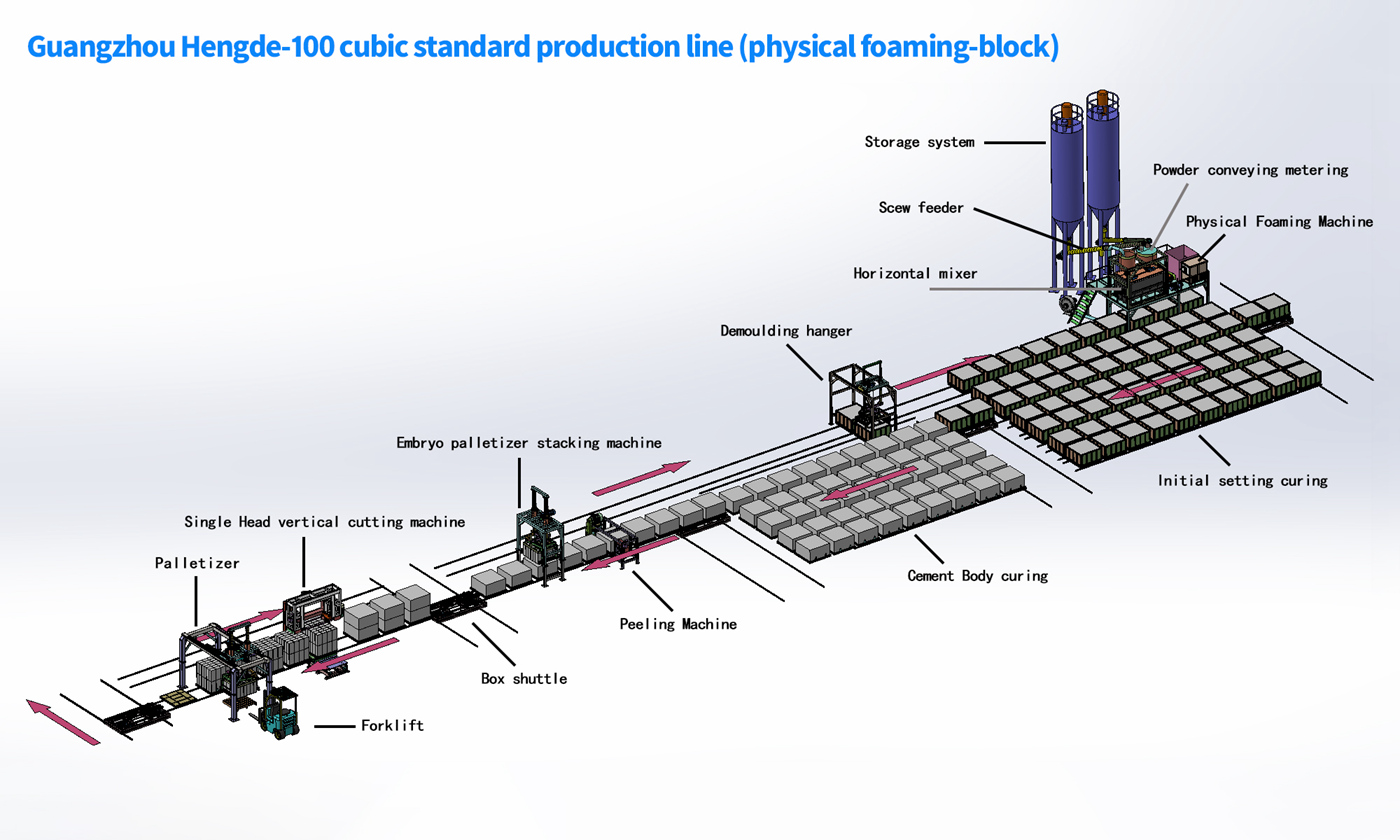

The production line includes a feeding and metering system, foaming machine, automatic demolding system, single-pass vertical saw, and packaging and palletizing machine, ensuring a highly efficient production process. It requires only 5-7 workers to meet production needs.
This production line is designed for approximately 100m³/day NAAC block production, suitable for medium-scale lightweight block manufacturing projects.
No. This is a non-autoclaved aerated concrete block production line and does not require high-pressure autoclave curing.
It is suitable for regional block manufacturers, building material factories and construction material suppliers that need stable medium-capacity lightweight block production.
Yes. Hengde can customize molds, cutting systems and production layout according to the required block dimensions and local market demand.
Yes. Depending on the initial workshop layout and equipment configuration, Hengde can help plan future upgrades for higher capacity or improved automation.
To recommend a suitable configuration, Hengde usually needs your required capacity, raw materials, block size, factory area, automation preference and project location.
If you are looking for a 100m³/Day NAAC Block Production Line or a Medium Non-Autoclaved Aerated Concrete Plant, Hengde can provide a customized equipment configuration based on your production target, raw materials and factory layout.
Contact Hengde to discuss your lightweight block production project and get a suitable NAAC block production line solution for medium-scale manufacturing.

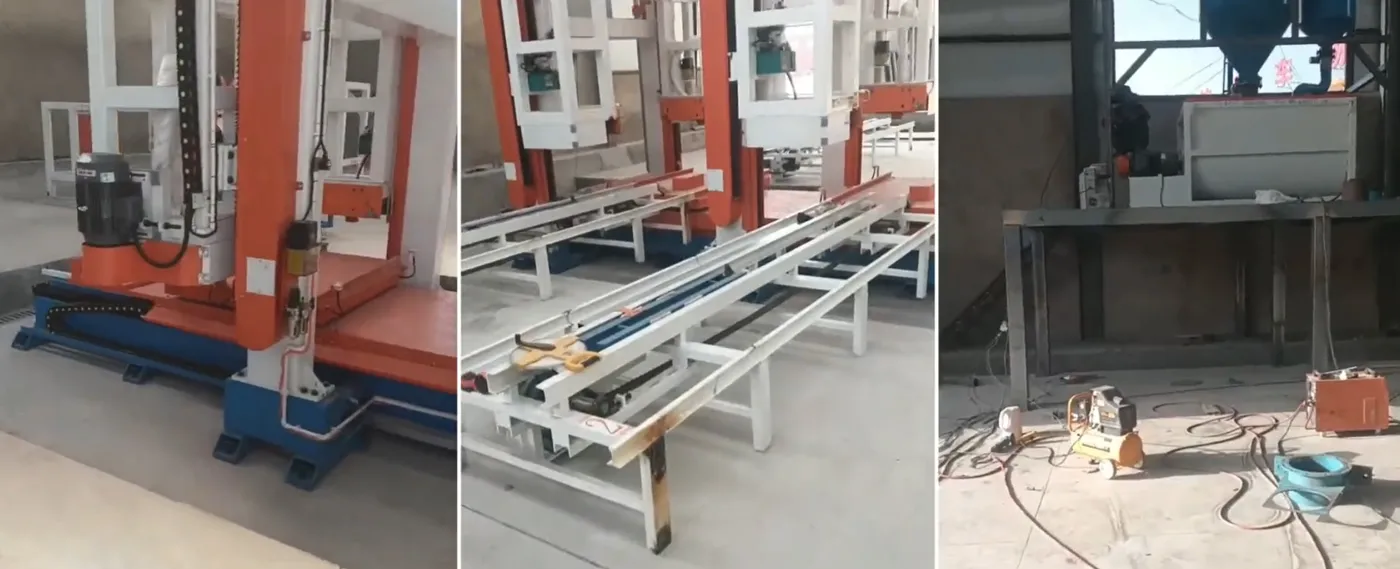

Actual Effect
The equipment is easy to operate and maintain. This production line can produce various products such as aerated concrete blocks, homogeneous self-insulating blocks, and expanded clay blocks. It has a daily output of 100 cubic meters, with high dimensional accuracy and a tolerance of only about 1mm. It requires a small footprint, accommodating a production workshop of 800-1000 square meters. A cutting system can be added later to increase output.
