Do AAC Blocks Always Need an Autoclave? A Buyer Guide

AAC blocks, in the strict technical sense, do require autoclave curing because autoclaving is part of the definition of autoclaved aerated concrete (AAC). ASTM C1693-11R25 specifies AAC as a cementitious material whose curing is carried out using high-pressure steam. However, if a buyer actually needs lightweight aerated concrete blocks rather than a product that must be certified as AAC, a NAAC (non-autoclaved aerated concrete) production line can be an alternative—provided the local standards, strength requirements and intended application allow it.

Do AAC Blocks Technically Require an Autoclave?

Yes—if the product is being marketed and specified as autoclaved aerated concrete, high-pressure steam curing is a defining part of the production process.

ASTM C1693-11R25 describes AAC as a low-density cementitious product in which the cured material is transformed into a hard calcium-silicate product through steam curing under pressure inside autoclaves. The standard also identifies typical raw materials such as cement, quartz sand, water, lime, gypsum or anhydrite, and an aerating agent.

This distinction matters when purchasing equipment:

Therefore, “Can I make lightweight aerated blocks without an autoclave?” and “Can I make AAC without an autoclave?” are not exactly the same question.

The first may be answered with NAAC; the second depends on how AAC is defined by the applicable standard.

What Happens Inside an AAC Autoclave?

In conventional AAC production, the autoclave is not simply an optional heating chamber. It provides the high-pressure steam curing stage that forms the required hardened calcium-silicate structure.

ASTM's current C1693-11R25 specification specifically identifies high-pressure steam curing as part of AAC production.

For an equipment buyer, this means an AAC project normally needs to account for more than the autoclave vessel itself:

· Steam-generation equipment

· Autoclave system

· Supporting piping and valves

· Autoclave loading/unloading

· Appropriate foundations and plant layout

· Safety and regulatory requirements for pressure equipment

This is why an AAC quotation should not be evaluated by comparing only the main block-making machinery.

What Is the Key Purchasing Difference Between AAC and NAAC?

The curing stage creates a major difference in plant configuration.

Hengde's NAAC production systems are specifically designed to manufacture aerated lightweight blocks without high-pressure autoclave curing. Its published configurations range from 30 m³/day and 50 m³/day to 100 m³/day, 200 m³/day and 300 m³/day.

For a buyer, this means the technology decision should be made before the equipment list is finalized.

Can You Produce Aerated Blocks Without an Autoclave?

Yes. This is where NAAC enters the discussion.

NAAC stands for Non-Autoclaved Aerated Concrete. Unlike conventional AAC, it does not depend on high-pressure autoclave curing. The production sequence can still include batching, mixing, foaming, pouring, forming, cutting, demolding and controlled curing, but the curing stage uses a different process.

This can make NAAC worth evaluating for investors who:

· Have a smaller initial production target

· Want to avoid autoclave-related infrastructure

· Serve a local or regional lightweight-block market

· Produce approved non-load-bearing wall materials

· Need a production line that can be configured around available factory space

However, NAAC should not automatically be treated as an interchangeable substitute for certified AAC.

The final product still needs to meet the requirements of its intended market and application.

When Does NAAC Make More Sense Than Conventional AAC?

The answer depends on what the buyer is actually trying to manufacture.

Hengde's current NAAC production information states that its equipment can be configured according to raw materials, target block density, block size, daily capacity, factory space and automation level.

The key limitation is product acceptance, not simply equipment availability.

If a local authority, engineer or customer requires a product specifically classified as AAC, a NAAC line cannot simply be relabeled as an AAC plant to satisfy that requirement.

How Much Capacity Should You Buy?

Capacity should be determined from your sales plan and product requirements.

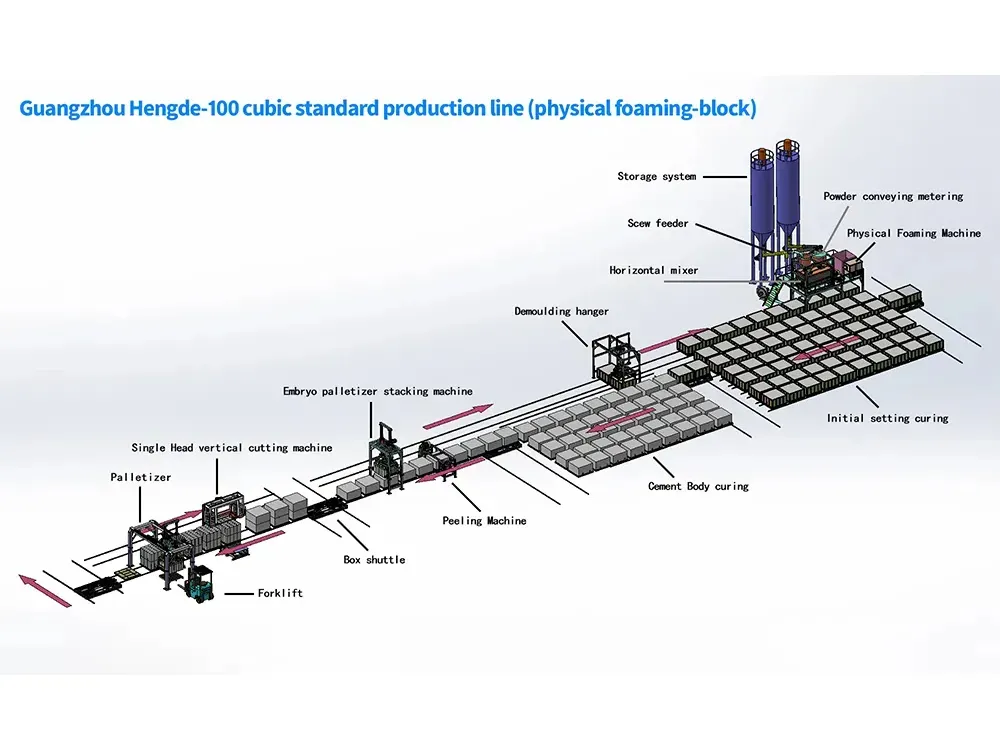

Hengde currently publishes NAAC configurations at 30, 50, 100, 200 and 300 m³/day. Its published 100 m³/day configuration includes batching, mixing, foaming, pouring, cutting, demolding, curing support, handling and stacking equipment.

For example:

These are equipment configuration options, not recommendations for every buyer. Actual capacity should be calculated against expected orders, operating days, product size, curing cycle, storage capacity and available labor.

What Factory Space Should You Check Before Ordering?

Factory space should be evaluated together with the complete production process.

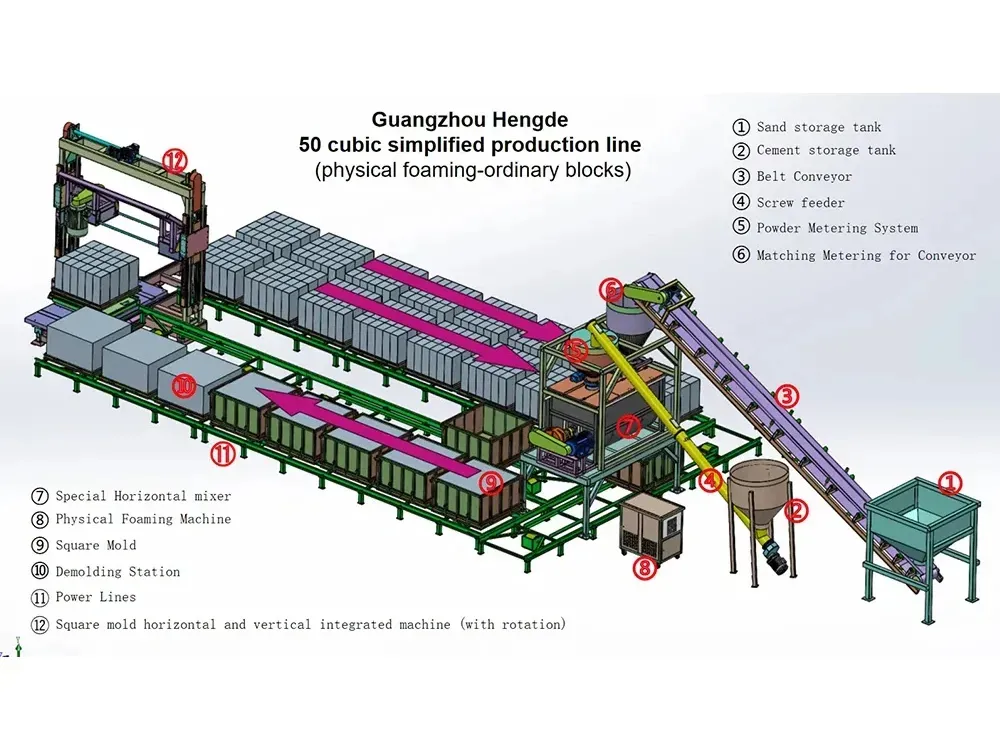

Hengde lists its 30 m³/day configuration as occupying approximately 200–500 m², depending on the output and configuration. Its published 100 m³/day line indicates a production workshop requirement of approximately 800–1,000 m².

The buyer should therefore ask for a complete layout showing:

1. Raw-material storage

2. Batching

3. Mixing

4. Foaming

5. Molding

6. Pre-curing

7. Cutting

8. Demolding

9. Curing

10. Finished-product storage

A production line that fits on paper may still be unsuitable if there is insufficient space for material movement, curing or finished-block storage.

What Product Parameters Should Be Confirmed Before Choosing AAC or NAAC?

The equipment should follow the product specification—not the other way around.

At minimum, the buyer should confirm:

For AAC, ASTM C1693 specifically addresses properties and production requirements associated with autoclaved aerated concrete.

For NAAC, the same principle applies: the machine itself does not guarantee that the finished block meets a particular building standard. Product performance needs to be verified using the selected raw materials, formulation, process and applicable local testing requirements.

What Are the Main Risks of Removing the Autoclave?

Removing the autoclave can simplify plant infrastructure, but it also changes the production process and should not be treated as a free substitution.

Risk 1: Assuming NAAC Is Automatically Equivalent to AAC

AAC and NAAC have different curing processes.

ASTM's AAC specification explicitly identifies high-pressure steam curing, while NAAC is designed around non-autoclaved curing.

Purchasing response: determine the legally and commercially accepted product classification before selecting the equipment.

Risk 2: Ignoring the Curing Process

A NAAC plant does not need an autoclave, but it still requires controlled curing.

Hengde's published NAAC process includes pre-curing, cutting, demolding and curing support rather than simply removing the autoclave from an AAC process.

Purchasing response: ask the supplier to provide the curing process, expected cycle, required space and operating conditions as part of the quotation.

Risk 3: Choosing Equipment Before Confirming Product Strength

A buyer may focus on daily capacity while overlooking the required density and compressive strength.

Purchasing response: specify the target product first, then ask the supplier to configure the equipment and process around those requirements.

Risk 4: Comparing Only Equipment Prices

A conventional AAC plant and a NAAC plant have different infrastructure requirements, so comparing only the machinery quotation can give a misleading impression of total project requirements.

Purchasing response: compare the complete project scope, including auxiliary equipment, installation, layout, utilities, curing, handling and commissioning.

What Should You Ask the Equipment Supplier Before Buying?

A serious quotation request should include at least the following information:

· Target daily capacity

· Block dimensions

· Target density

· Required compressive strength

· Intended application

· Available raw materials

· Factory dimensions

· Local power conditions

· Preferred automation level

· Target country and applicable standards

Hengde states that it can configure NAAC production lines according to raw materials, density, block size, daily capacity, factory space and automation requirements, and provides production-line planning, layout guidance, installation support and technical communication.

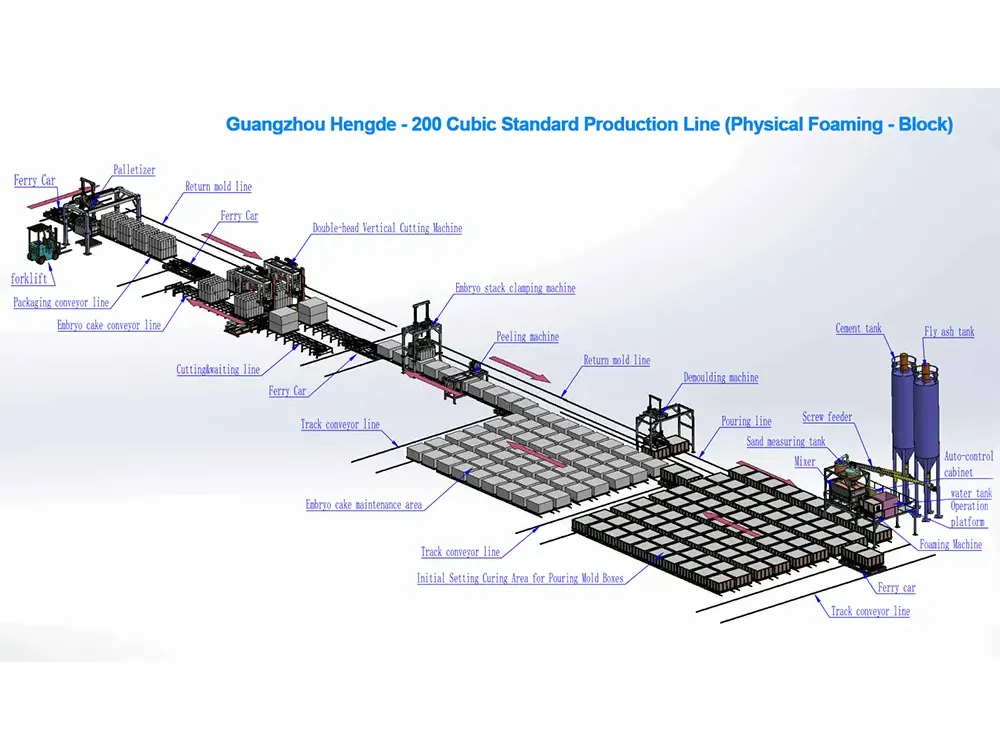

For example, Hengde's published 200 m³/day NAAC line lists a 1100 × 700 × 1000 mm physical foaming machine rated at 7.5 kW, illustrating why equipment comparisons should examine individual machine specifications rather than relying only on a headline capacity.

AAC vs NAAC: Which One Should You Buy?

There is no single answer independent of the product specification.

The most important purchasing rule is:

Do not start with “Which machine is cheaper?” Start with “What product am I legally and commercially required to manufacture?”

Once the product standard, application, density, strength and capacity are confirmed, the choice between autoclaved and non-autoclaved technology becomes much clearer.

Frequently Asked Questions

Can AAC blocks be made without an autoclave?

If the product must meet the technical definition of autoclaved aerated concrete, the answer is no because high-pressure steam curing is part of the AAC specification. If the market accepts non-autoclaved aerated concrete, however, a NAAC production line can manufacture lightweight aerated blocks without an autoclave.

What is the difference between AAC and NAAC blocks?

The defining difference is the curing process: conventional AAC uses high-pressure steam curing in an autoclave, while NAAC does not use high-pressure autoclave curing. The two should therefore be evaluated against their applicable product standards rather than treated as identical products.

Does a 30 m³/day NAAC plant need an autoclave?

No. Hengde's NAAC configurations are specifically designed without high-pressure autoclave curing, and its published capacity options start at 30 m³/day. The required curing area and process still need to be included in the plant design.

Can Hengde customize a NAAC production line?

Yes. We can configure the production line according to the required capacity, raw materials, target density, block dimensions, factory space and automation level. We also provide production planning, layout guidance, installation support and technical communication for NAAC projects.

What information is needed to quote an AAC or NAAC plant?

At minimum, buyers should provide the target capacity, block size, density, required compressive strength, raw materials, factory area and intended application. These details allow us to determine whether an autoclaved or non-autoclaved process is more appropriate and configure the equipment accordingly.

Request an AAC or NAAC Production Line Configuration

If you are unsure whether your project needs a conventional AAC plant with an autoclave or a NAAC production line without high-pressure steam curing, Hengde can evaluate the project based on your product specification, capacity target, raw materials, factory conditions and local market requirements.

We can provide equipment configuration and production-line planning for lightweight block projects, including published NAAC capacities from 30 m³/day to 300 m³/day.
