Scene Description

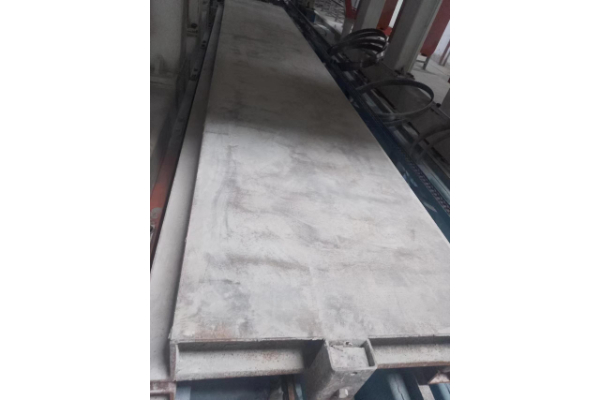

This basic 80 cubic meter wall panel production line is suitable for projects newly entering the wall panel production field with small order volumes.
The production line configuration includes: a screw air compressor, powder metering system, water metering system, physical foaming machine, No. 2 horizontal mixer, operating platform, single-channel gantry CNC flat-cutting saw, wall panel clamping machine, multi-sheet grooving machine, demolding hoist, turning machine, insertion and extraction machine, and basic assembly line systems for pouring, demolding, mold return, and cutting.
The entire line is centrally controlled by a PLC main control cabinet and supports remote module access.
This configuration uses a single-channel flat-cutting structure to meet the continuous cutting requirements of basic wall panels;
It is equipped with an 850mm wide wall panel mold system to support the production of wall panels of various specifications.
Daily output approximately 80 cubic meters. The equipment has a clear structure, is easy to maintain, and is suitable for small-scale, stable production.
Basic Parameters
| Serial number | Name | Equipment model, specifications and related parameters | Number of devices | Unit power (kw) | Total Power (kw) | Image |

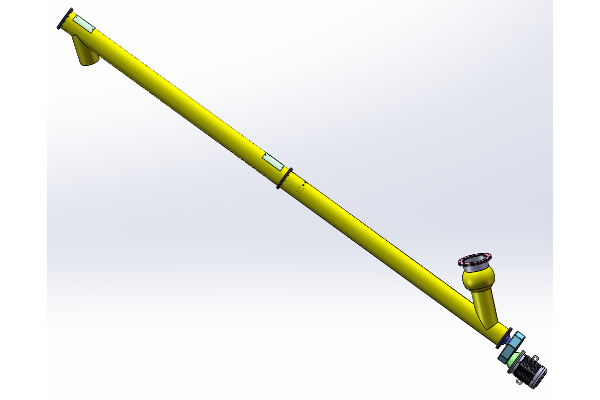

| 1-1 | Screw feeder | HDSL-001: Size: 8640*350*1100 | 2 | 11.00 | 22.00 |  |

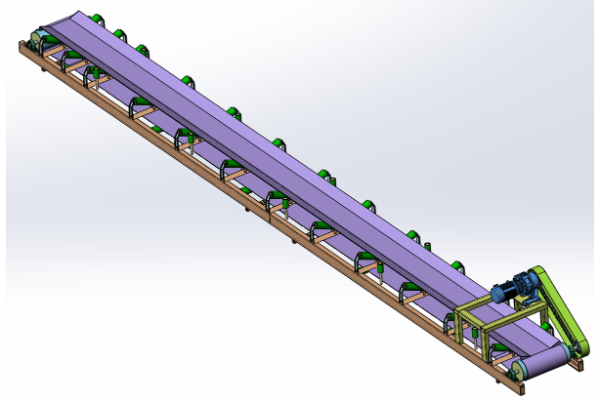

| 1-2 | Belt conveyor | HDPDA-001: Size: 9000*800*800 | 1 | 2.20 | 2.20 |  |

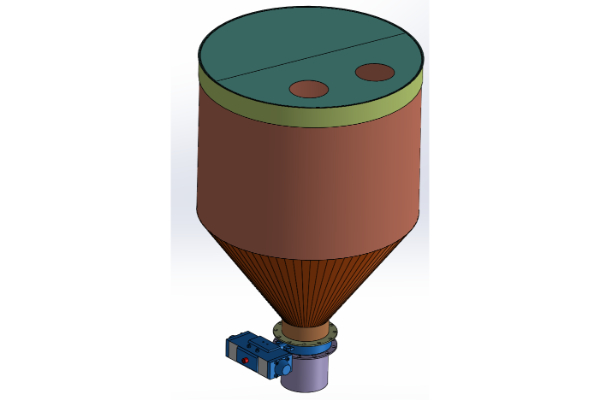

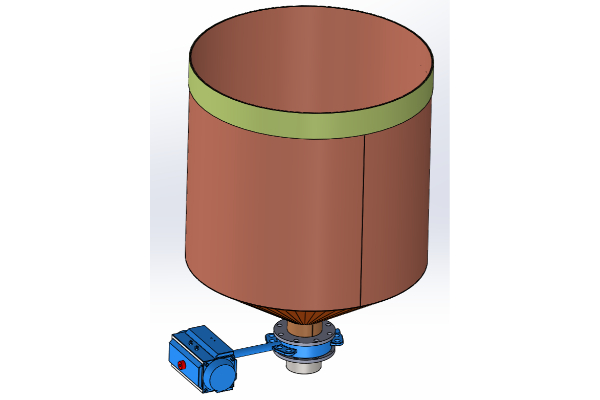

| 1-3 | Powder metering system | HDFL-001 size: 1.2m*1.5m*1.4m | 1 | 0.55 | 0.55 |  |
| 1-4 | Conveyor supporting metering | HDFL-001: Size: Diameter 1310*Height 1950 | 1 | 0.55 | 0.55 |  |
| 1-5 | Water metering system | HDSL-001: Size: Diameter 1100*Height 1140 | 1 | 0.55 | 0.55 |  |

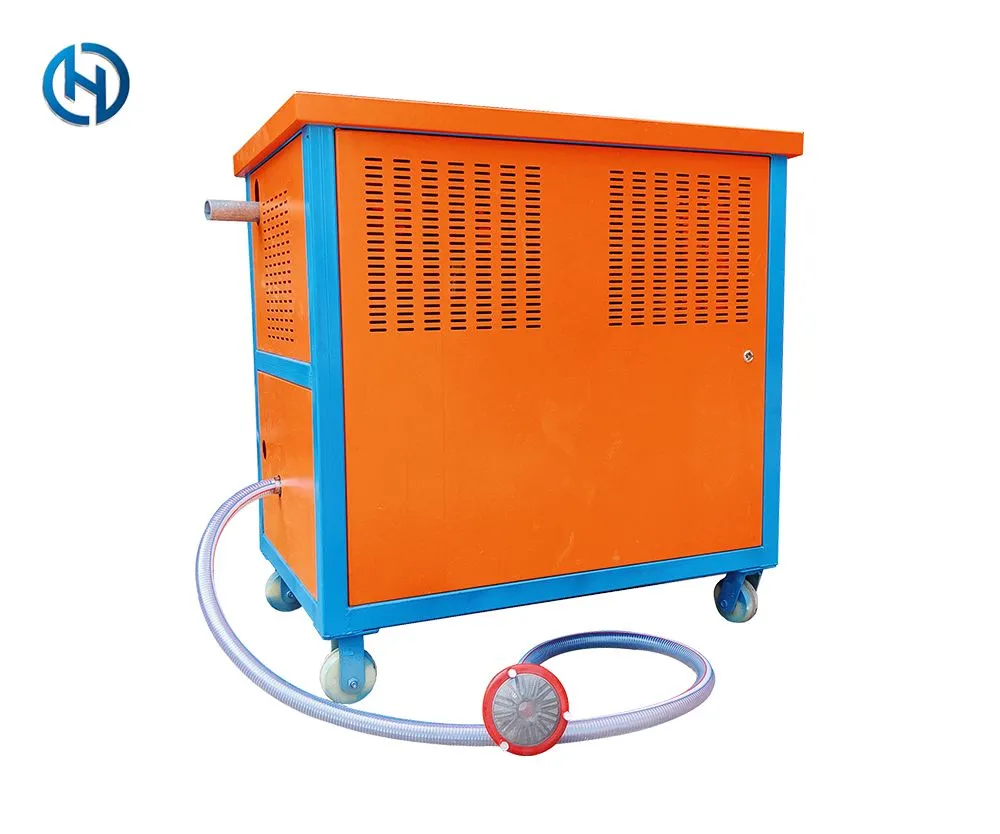

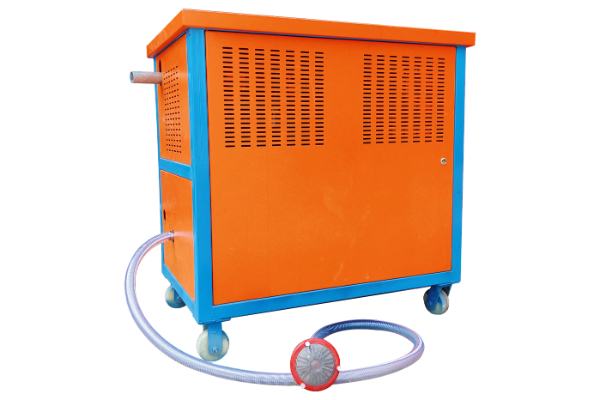

| 1-6 | Physical foaming machine | HDKWF1-001: Size: 1150*750*1140 | 1 | 7.50 | 7.50 |  |

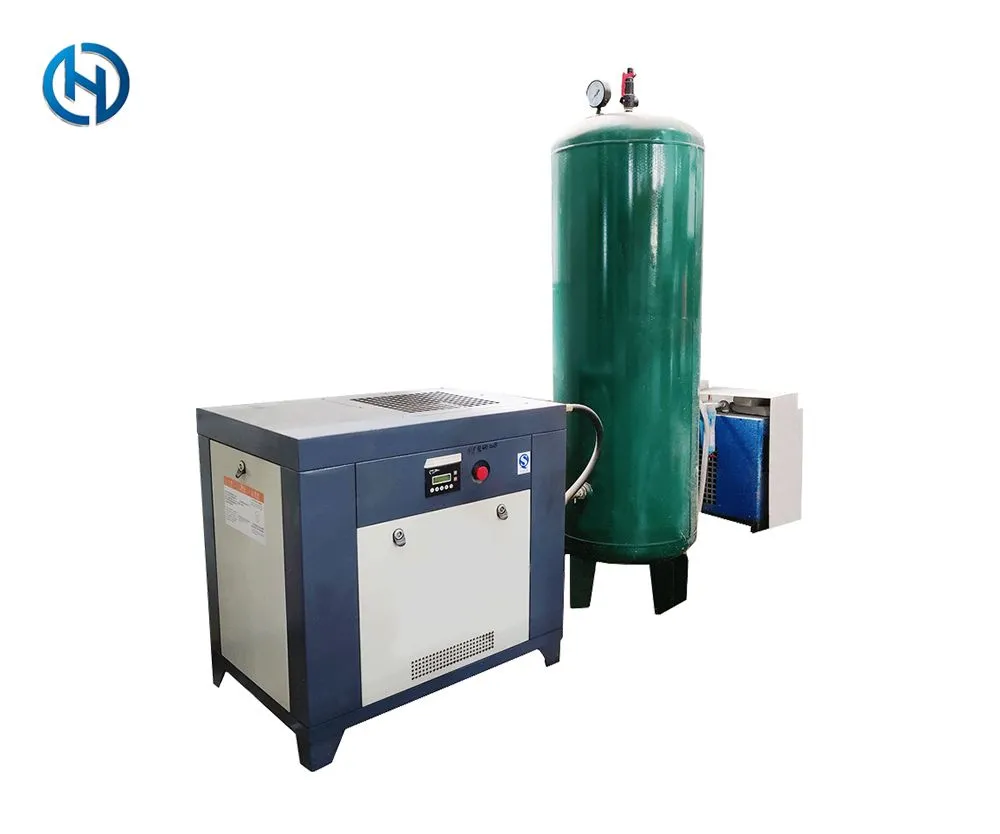

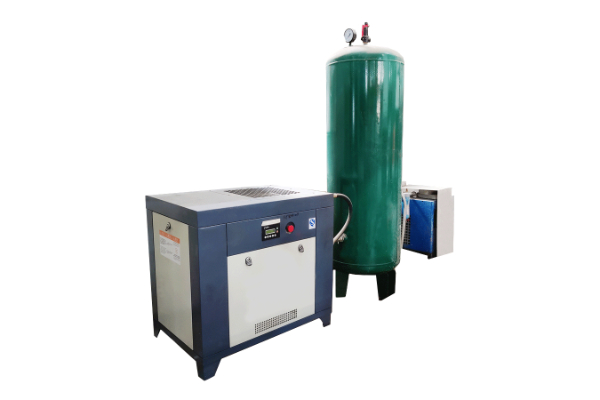

| 1-7 | Screw air compressor | HDKY-001 size: length 1500*width 500*height 2000mm, gas storage tank 0.8 cubic * 1 | 1 | 15.00 | 15.00 |  |
| 1-8 | Operating platform | Size: 5000*3500*1500 | 1 |  | ||

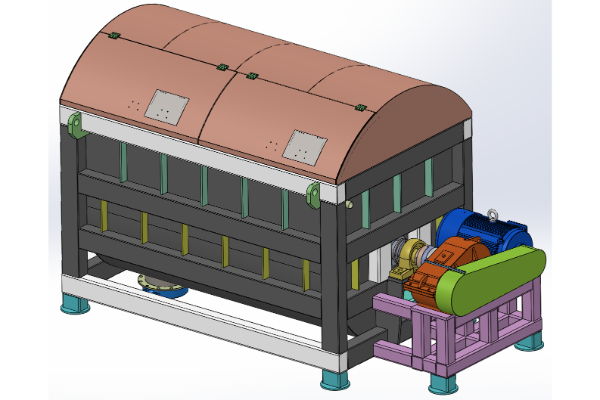

| 1-9 | No. 2 horizontal mixer | EPSJB-02 Dimensions: 3300*1700*1950 Hollow Dimensions: 2184*1288*1400 | 1 | 22.00 | 22.00 |  |

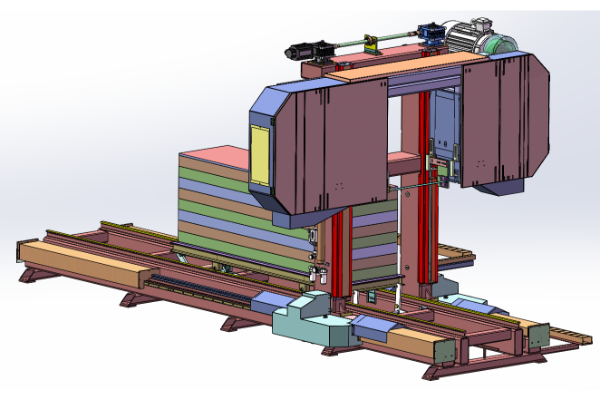

| 2-1 | Single Gantry Flat Cutting Saw (CNC) | HDSQ-007 Dimensions: 6000*3400*3000 | 1 | 20.90 | 20.90 |  |
| 2-2 | Wall panel clamping machine | HDDKG-N01 Dimensions: 6000*3600*4700 | 1 | 8.50 | 8.50 |  |
| 2-3 | Multi-plate slotting machine | HDKG-C02 Dimensions: 6250*3100*2400 | 1 | 22.00 | 22.00 |  |

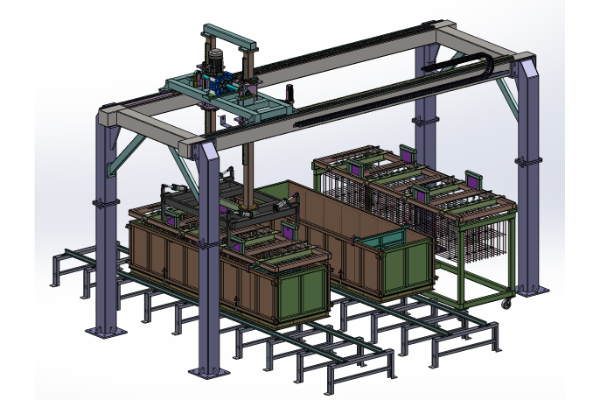

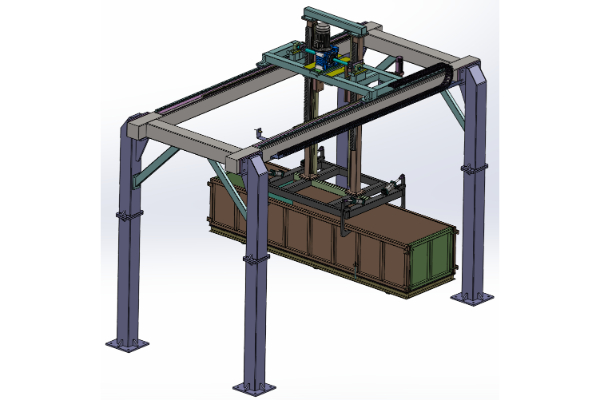

| 2-4 | Demolding spreader (850 wide wall plate mold box) | HDTH-001 Dimensions: 4800*2600*3700 | 1 | 6.20 | 6.20 |  |
| 2-5 | Flip the machine | HDWEGH1-001 Dimensions: 3800*3350*2250 | 1 | 10.00 | 10.00 |  |
| 2-6 | Plug and unplug brazing machine | HDTH-004 Dimensions: 6000*2600*4100 | 1 | 6.20 | 6.20 |  |
| 3-1 | Shuttle bus (wall panel) | HDBD-001 Size: 3m*1.5m | 5 | 1.20 | 6.00 |  |
| 3-2 | Release line | TM-001 Size: 12m*1.1m | 1 | 2.20 | 2.20 |  |
| 3-3 | Return to the mold assembly line | HM-001 Size: 12m*1.1m | 1 | 2.20 | 2.20 |  |
| 3-4 | Pouring assembly line | JZ-001 Size: 12m*1.1m | 1 | 2.20 | 2.20 |  |
| 3-5 | Cutting power lines | HDZD-001 Size: 12m*1.1m | 1 | 3.00 | 3.00 |  |

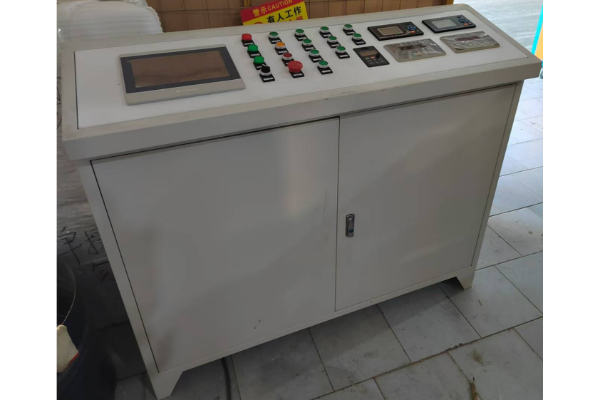

| 4-1 | The platform PLC main control cabinet | HDKZ1-001 Size: 1300*1100*400 | 1 |  | ||

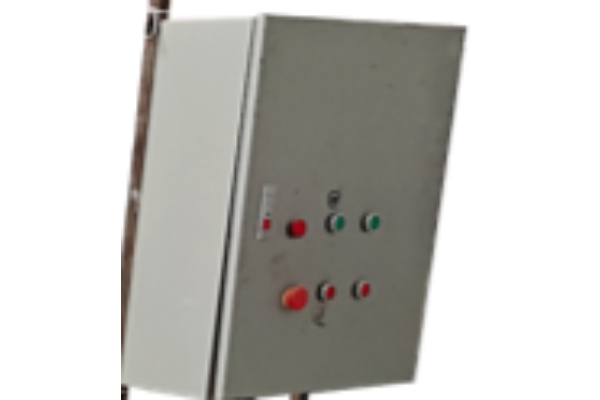

| 4-2 | Foam electromechanical cabinet | HDCBD1-001 size: 700*500*400 | 1 |  | ||
| 4-3 | Remote module | Import data, operate remotely | 1 |  | ||
| 4-3 | Shuttle car electrical cabinet | Size: 600*500*250 | 5 |  | ||

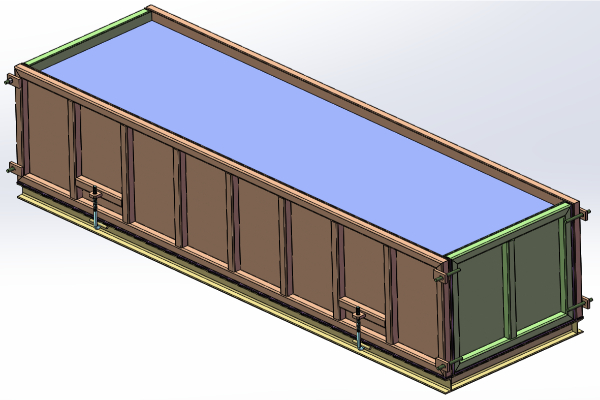

| 4-4 | Mold | HDSD2-001 Size: 3000*840*630 (Complete Set) | 1 |  | ||
| 4-6 | Receiving the base plate | HDSA-001 Size: 3000*640*230 | 1 |  | ||
| 4-7 | Extubation | 5 meters a piece | 36 | |||
| 4-8 | Brazed frame | 1 | ||||
| 4-9 | Braze frame | 1 | ||||
| 4-10 | Braze rod | A set of 24 brazing rods | 1 set | |||

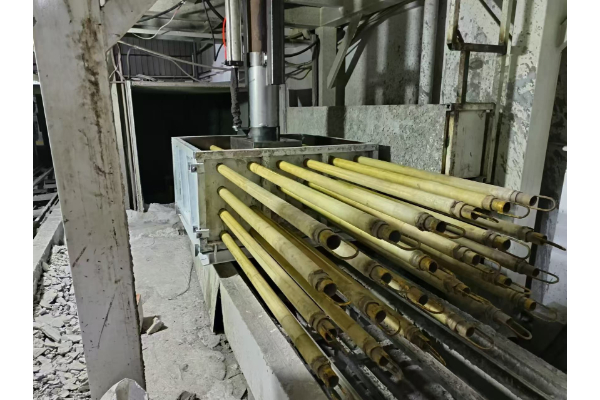

| 4-11 | Brazed frame transfer cart | 1 |
