Scene Description
This high-end version of the 200 cubic meter wall panel equipment is designed for large-scale, continuous wall panel production.

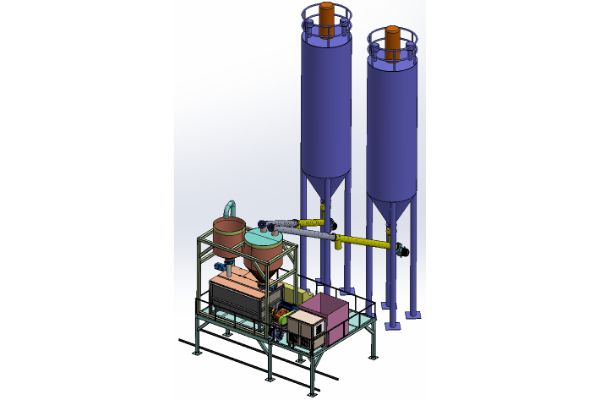

The production line configuration includes: a spiral feeding system, belt conveyor system, powder and water metering system, physical foaming machine, extra-large horizontal mixer, premixer, power storage silo, mud pump, nine-stage horizontal saw, double-mold three-stage gantry vertical saw (CNC), peeling machine, multi-sheet grooving machine, wall panel clamping machine, demolding hoist, turning machine, insertion and extraction machine, and a complete power assembly line system for casting, demolding, mold return, and dual-line cutting.
The entire line is centrally managed by a PLC main control system, with independent partitions for the electrical control system, ensuring stable operation.
This configuration supports parallel operation of multiple molds, with clear division of labor in the cutting process; the combined horizontal and vertical cutting structure is suitable for high-cycle continuous production.
With a daily output of approximately 200 cubic meters, it is suitable for long-term operation of wall panel projects that are either engineering support projects or regional supply projects.
Basic Parameters
| Serial number | Name | Equipment model, specifications and related parameters | Number of devices | Unit power (kw) | Total Power (kw) | Image | Device source |

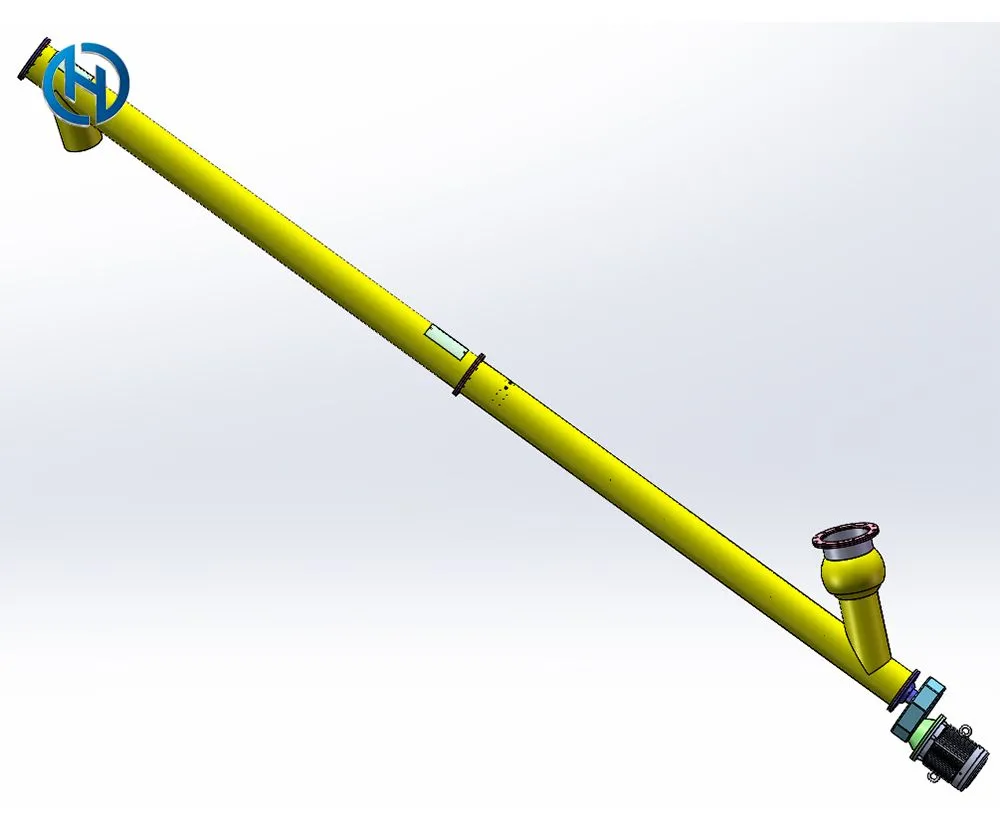

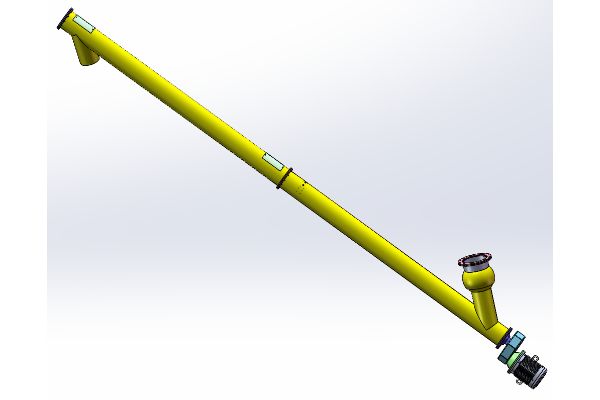

| 1-1 | Screw feeder | HDSL-001: Size: 6640*350*1100 | 2 | 11.00 | 22.00 |  | The glow of the sea |

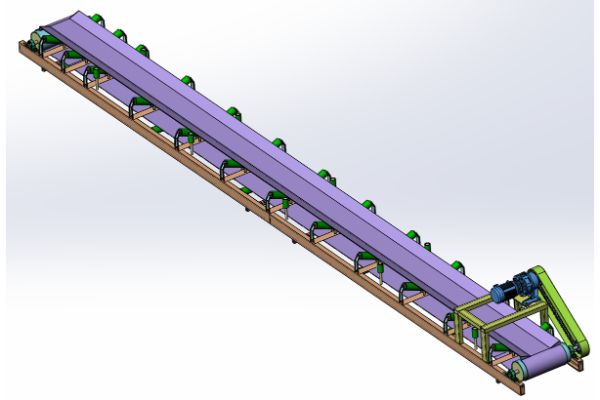

| 1-2 | Belt conveyor | HDPDA-001: Size: 9000*800*800 | 1 | 2.20 | 2.20 |  | The glow of the sea |

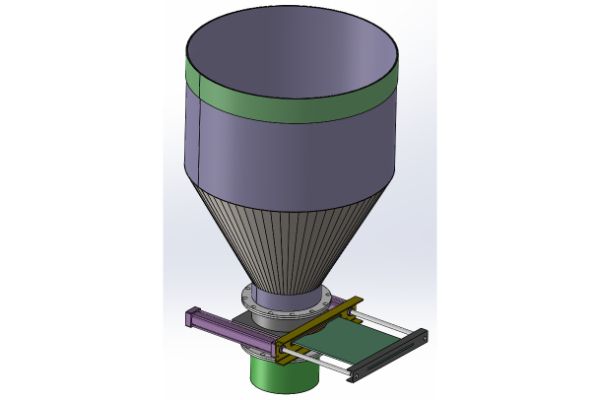

| 1-3 | Powder metering system | HDFL-001 size: 1.2m*1.5m*1.4m | 1 | 0.55 | 0.55 |  | The glow of the sea |

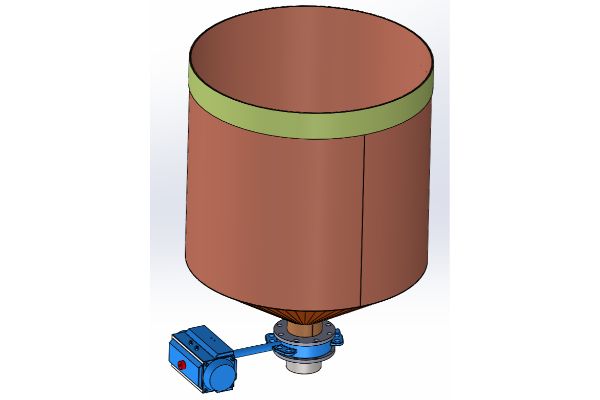

| 1-4 | Conveyor supporting metering | HDFL-001: Size: Diameter 1310*Height 1950 | 1 | 0.55 | 0.55 |  | The glow of the sea |
| 1-5 | Water metering system | HDSL-001: Size: Diameter 1100*Height 1140 | 1 | 0.55 | 0.55 |  | The glow of the sea |

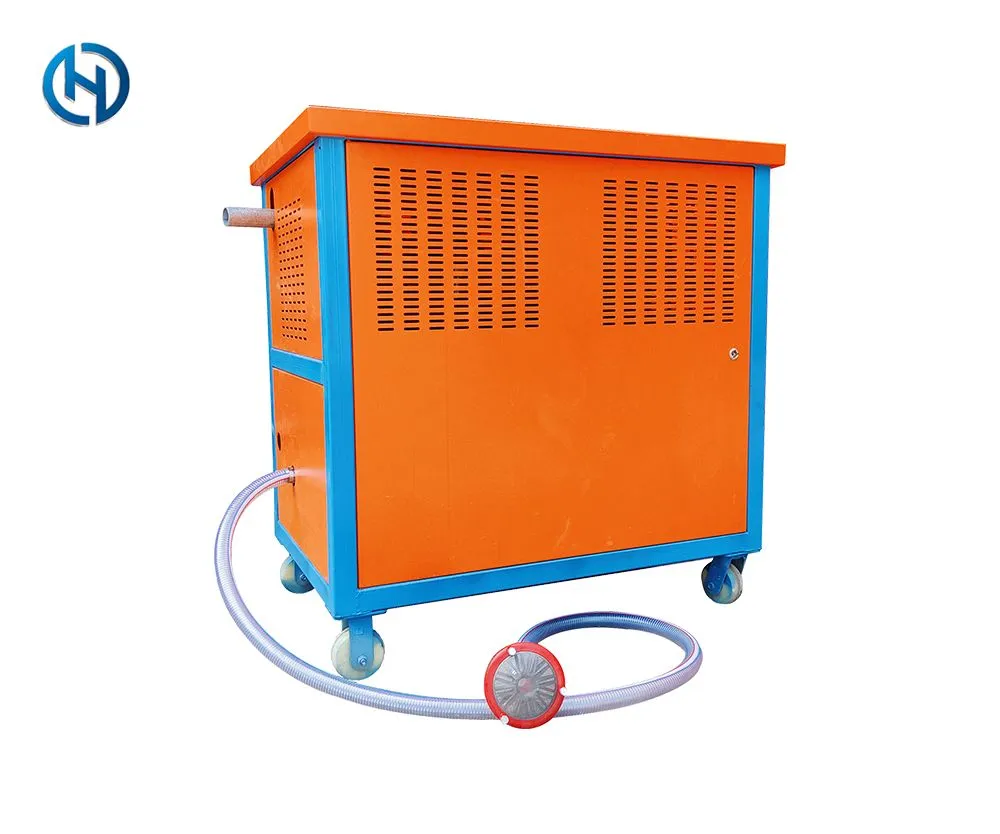

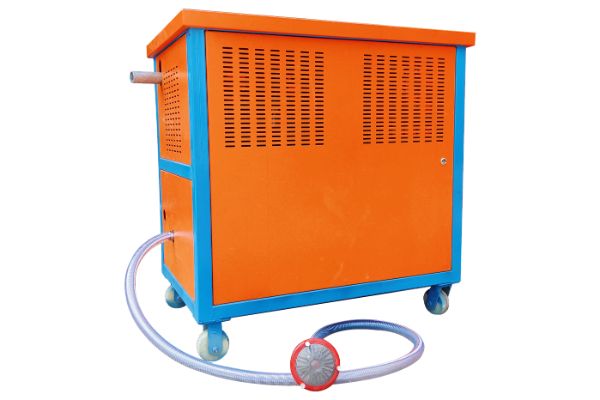

| 1-6 | Physical foaming machine | HDKWF1-001: Size: 1150*750*1140 | 1 | 7.50 | 7.50 |  | The glow of the sea |

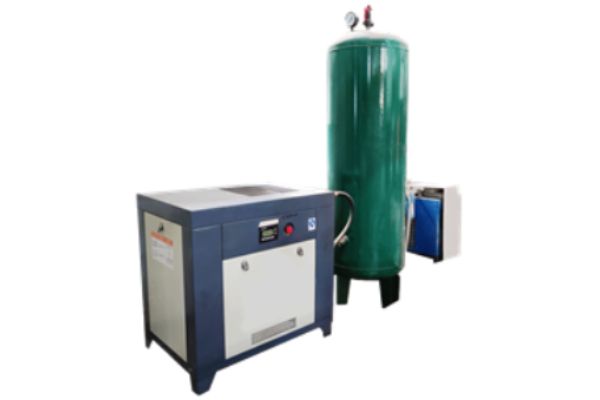

| 1-7 | Screw air compressor | HDKY-001 size: length 1500*width 500*height 2000mm, gas storage tank 0.8 cubic * 1 | 1 | 15.00 | 15.00 |  | The glow of the sea |
| 1-8 | Operating platform | Size: 5000*3500*1500 | 1 |  | The customer provides drawings from the manufacturer | ||

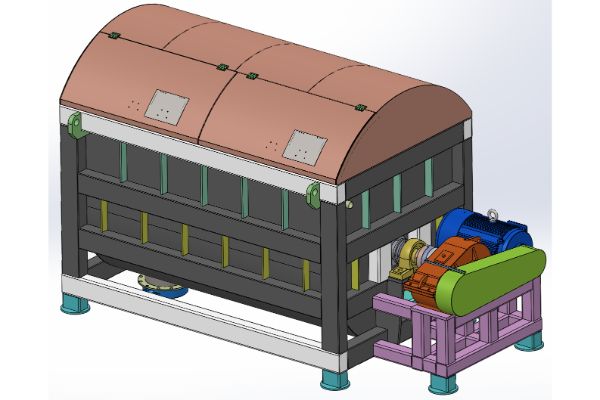

| 1-9 | King-size horizontal mixer | EPSJB-1 size: 3200*1500*1950 | 1 | 22.00 | 22.00 |  | The glow of the sea |

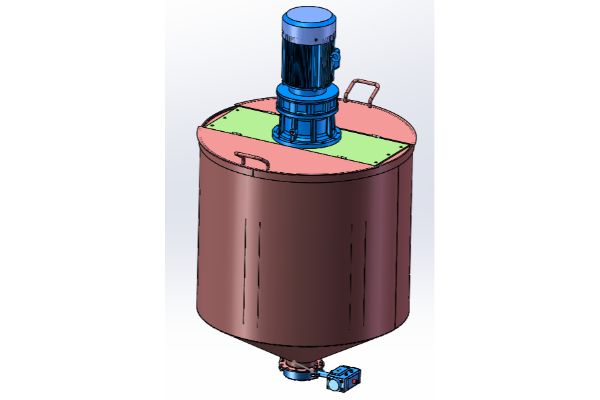

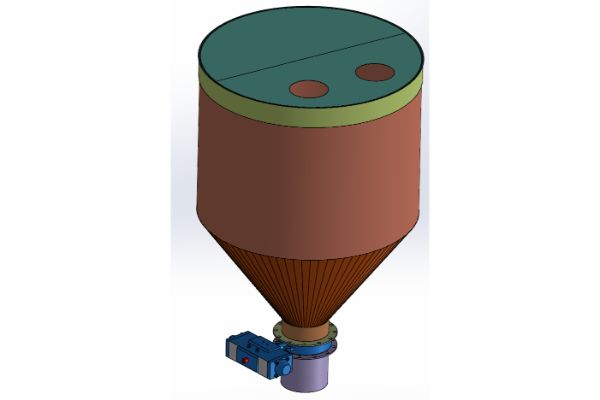

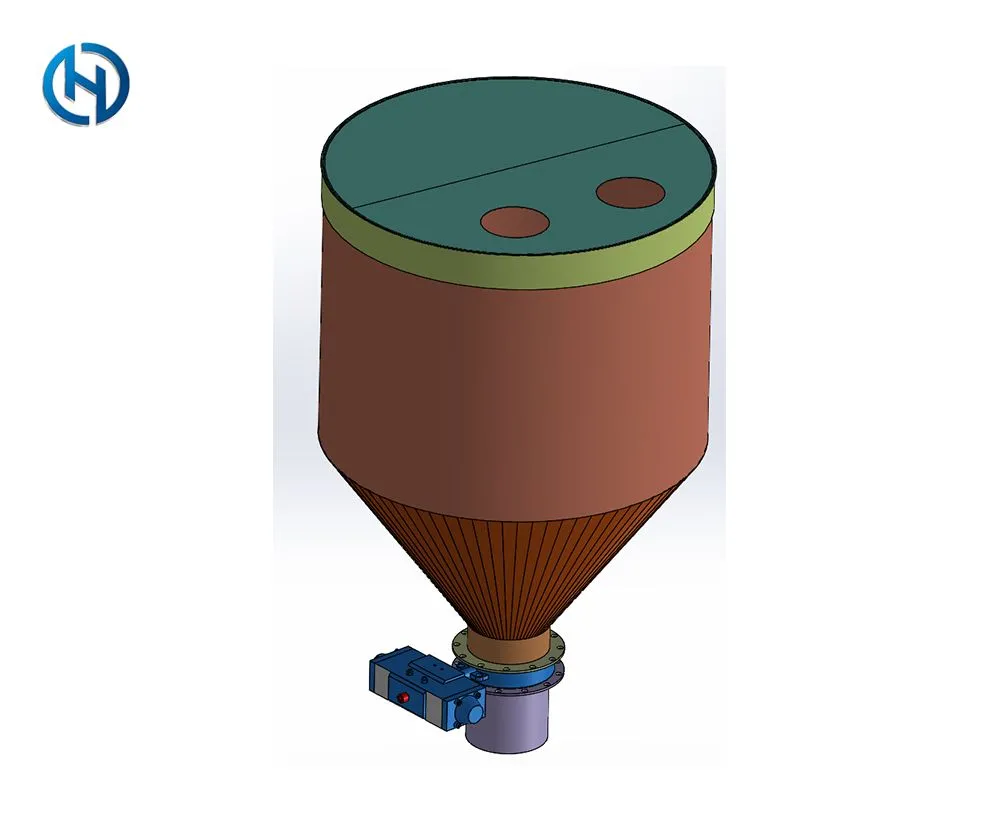

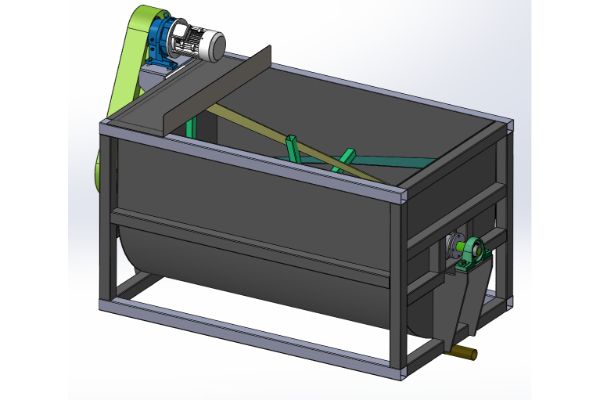

| 1-10 | Premixer | HDLS-002 Dimensions: Diameter 1200*Height 2300 | 1 | 11.00 | 11.00 |  | The glow of the sea |
| 1-11 | Power storage silos | HDSU-2 size: 2700*1400*1700 | 1 | 2.20 | 2.20 |  | The glow of the sea |

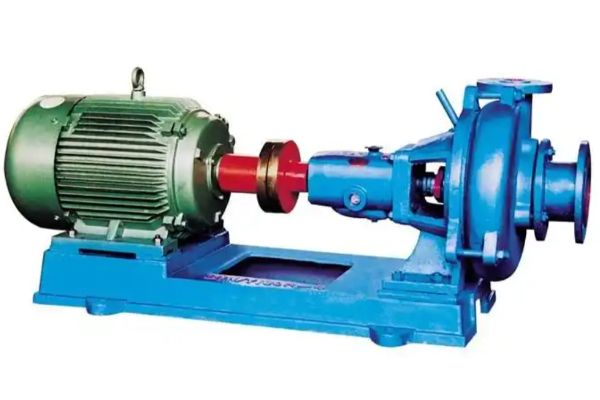

| 1-12 | Mud pump | HDBD2-005 Dimensions: 1700*300*500 | 1 | 7.50 | 7.50 |  | The glow of the sea |

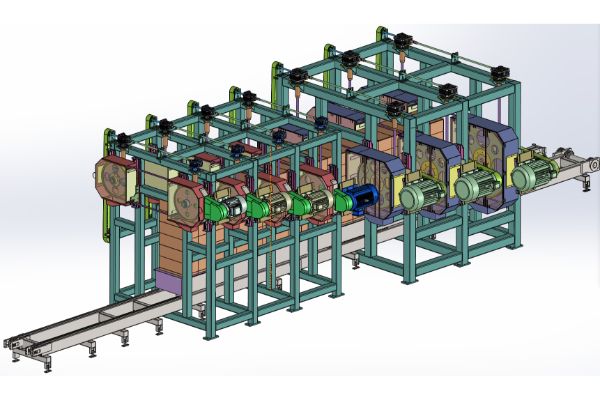

| 2-1 | Nine Flat Cutting Saws | HDSQ-009 Dimensions: 7500*4250*2900 | 1 | 70 | 70 |  | The glow of the sea |

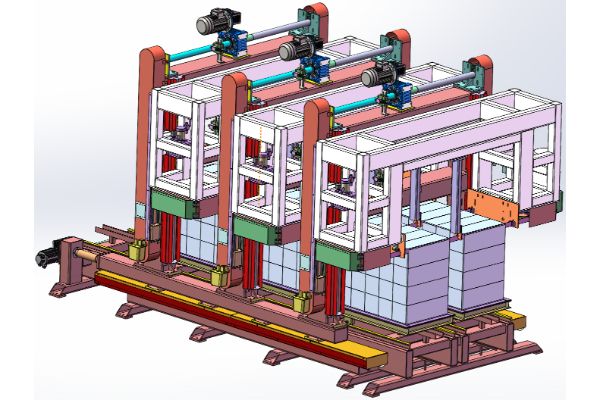

| 2-2 | Dual-mode three-way gantry vertical cutting saw (CNC) | HDSQ-003 Dimensions: 5000*3300*3200 | 1 | 28.1 | 28.1 |  | The glow of the sea |

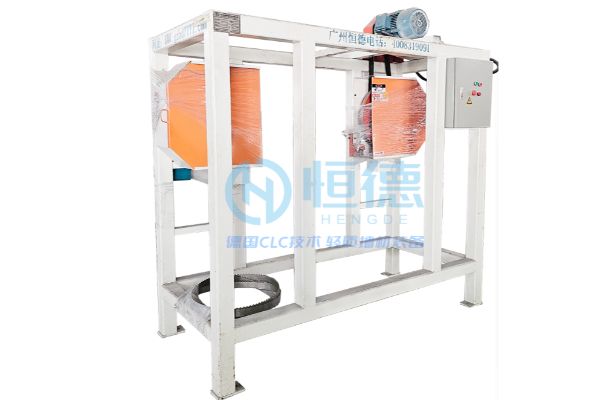

| 2-3 | Peeling machine | HDOSD1-001 Size: 3000*1000*2100 (with power cord) | 1 | 5.00 | 5.00 |  | The glow of the sea |

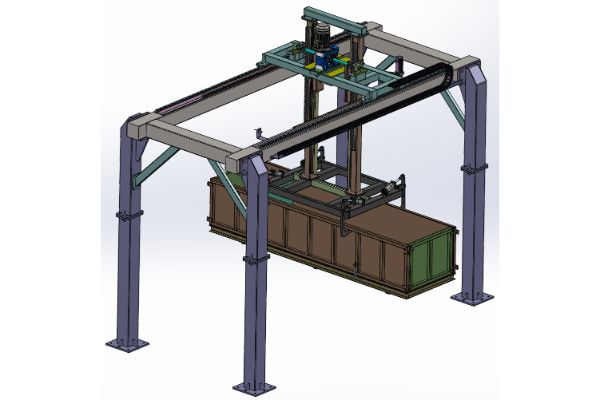

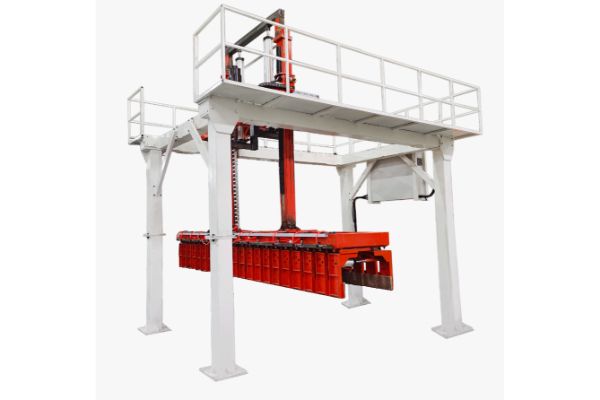

| 2-4 | Release spreader | HDTH-001 Dimensions: 4800*2600*3700 | 1 | 6.20 | 6.20 |  | The glow of the sea |
| 2-5 | Multi-plate slotting machine | HDKG-C01 Dimensions: 9250*3100*2400 | 1 | 22.00 | 22.00 |  | The glow of the sea |

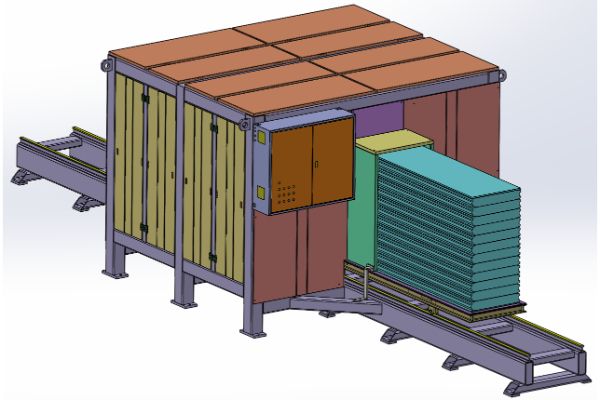

| 2-6 | Wall panel brick clamping machine | HDD-N02 Dimensions: 7000*3600*4700 | 1 | 8.50 | 8.50 |  | The glow of the sea |

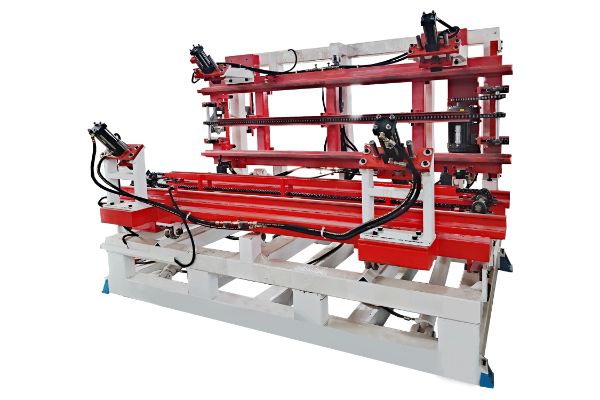

| 2-7 | Flip the machine | HDWEGH1-001 Dimensions: 3800*3350*2250 | 1 | 10.00 | 10.00 |  | The glow of the sea |

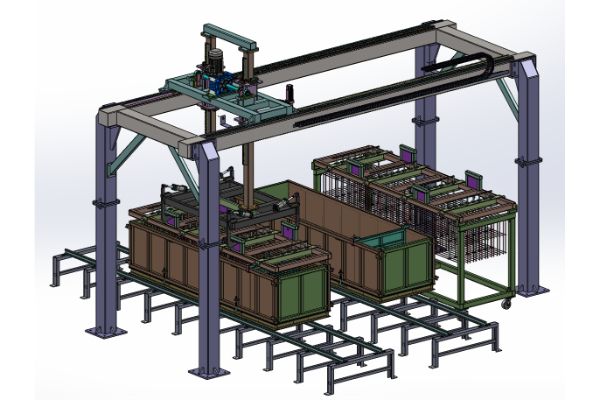

| 2-8 | Plug and unplug brazing machine | HDTH-004 Dimensions: 6000*2600*4100 | 1 | 6.20 | 6.20 |  | The glow of the sea |

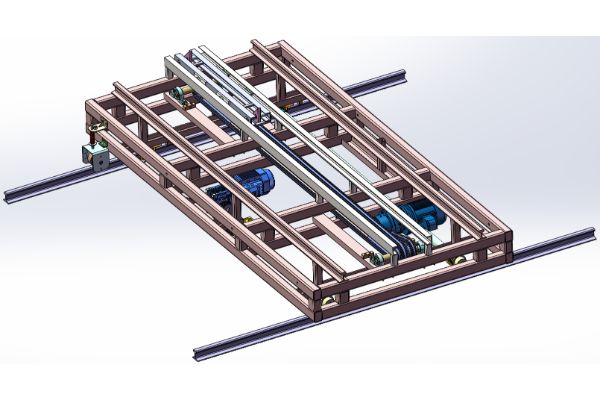

| 3-1 | Shuttle bus (wall panel) | HDBD-001 Size: 3m*1.5m | 7 | 3.00 | 21.00 |  | The glow of the sea |

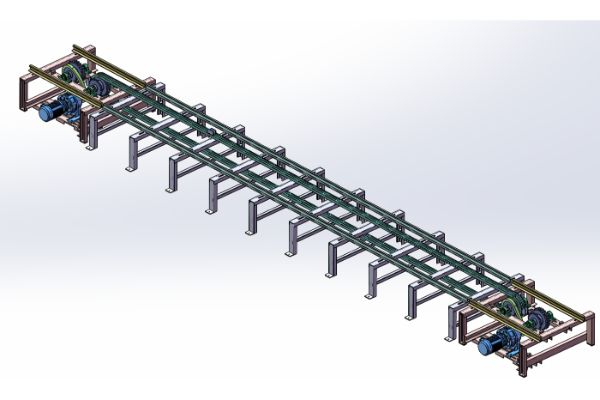

| 3-2 | Release line | TM-001 Size: 12m*1.1m | 1 | 2.20 | 2.20 |  | The glow of the sea |
| 3-3 | Return to the mold assembly line | HM-001 Size: 12m*1.1m | 1 | 2.20 | 2.20 |  | The glow of the sea |
| 3-4 | Pouring assembly line | JZ-001 Size: 12m*1.1m | 1 | 2.20 | 2.20 |  | The glow of the sea |
| 3-5 | Cutting power double wire | HDZD-001 Size: 12m*1.1m | 2 | 3.00 | 6.00 |  | The glow of the sea |

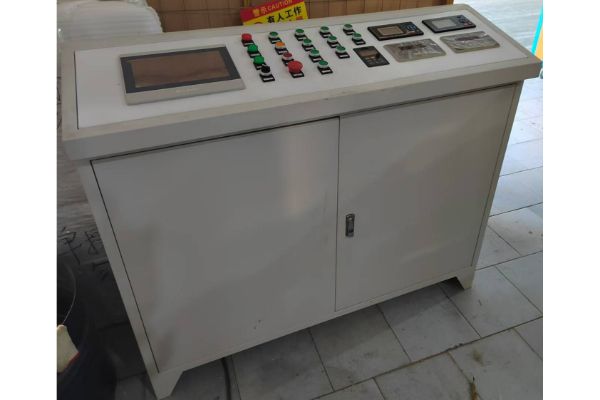

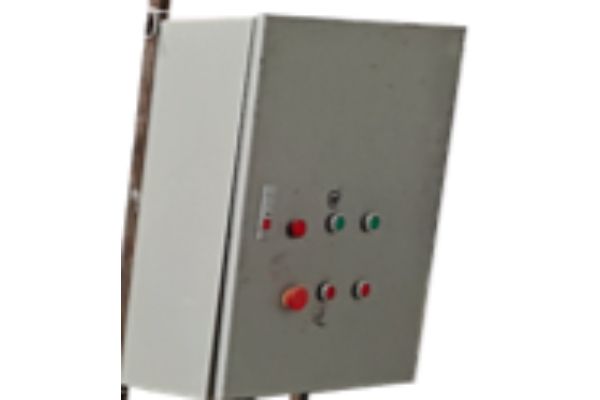

| 4-1 | The platform PLC main control cabinet | HDKZ1-001 Size: 1300*1100*400 | 1 |  | The glow of the sea | ||
| 4-2 | Foam electromechanical cabinet | HDCB-001 size: 700*500*400 | 1 |  | The glow of the sea | ||

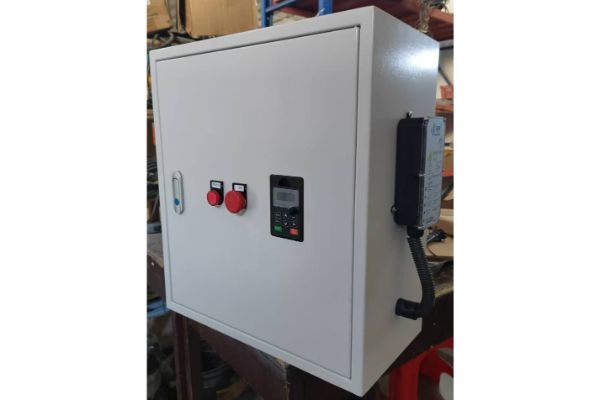

| 4-3 | Shuttle car electrical cabinet | Size: 600*500*250 | 7 |  | The glow of the sea | ||

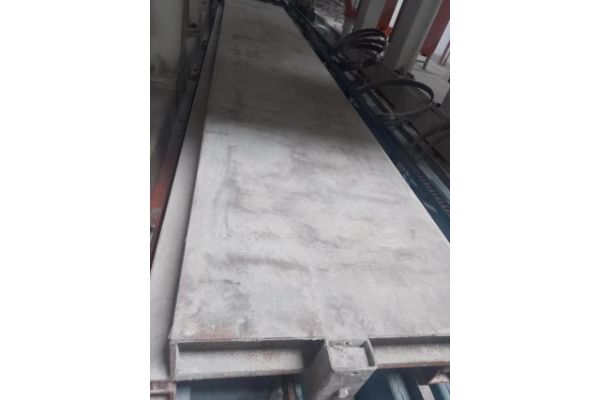

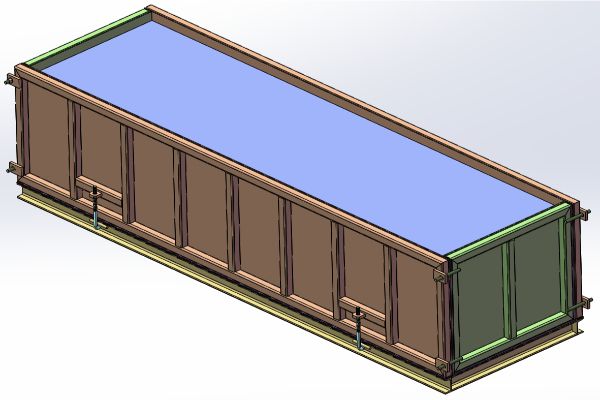

| 4-4 | Mold | HDSD2-001 Size: 3000*840*630 (Complete Set) | 70 |  | The glow of the sea | ||
| 4-5 | Mold bottom | HDS-002 Size: 3000*840*230 | 30 |  | The glow of the sea | ||
| 4-6 | Receiving the base plate | HDSA-001 Size: 3000*640*230 | 20 |  | The glow of the sea | ||
| 4-7 | Brazed frame | 70 | The glow of the sea | ||||
| 4-8 | Braze frame | 70 | The glow of the sea | ||||
| 4-9 | Braze rod | A set of 24 brazing rods | 70 sets | The glow of the sea | |||
| 4-10 | Brazed frame transfer cart | 5 | The glow of the sea | ||||

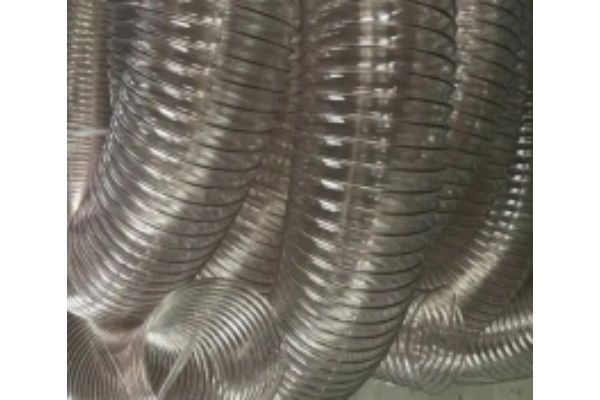

| 4-11 | A blower and an 8-meter gas pipe | 1 | 280KW |
| The glow of the sea |
