Scenario Description
This standard 300 cubic meter block production line is highly automated and suitable for medium to large-scale lightweight block projects. It features stable production capacity, reliable operation, and strong scalability, and is widely used in overseas building materials investment and large-scale production projects.
Basic Parameters
| Configuration Description of 300 Cubic Meter Daily Block Production Equipment | |
| This production line uses a three-gantry rotary vertical cutting system as its core, and is equipped with a complete system for feeding, foaming, mixing, molding, demolding, peeling, cutting, conveying, packaging, and control, realizing continuous production of lightweight blocks from raw materials to finished products. | |
| Designed Capacity | 300 cubic meters/day |
| Applicable Products | CLC foamed concrete blocks, aerated concrete blocks, lightweight blocks, polystyrene particle blocks, etc. |
| Cutting Accuracy | ±1mm, kerf 2mm |
| Production Personnel | 8–10 people |
| Production Workshop Area | 2000–2500㎡ |
| Land Area | 6000㎡ |
| System Structure | Modular design, expandable and upgradeable later |
| 300 Cubic Meter Standard Block List | |||||||||
| Serial Number | Name | Equipment Model, Specifications, and Related Parameters | Number of devices | Single-unit power (kW) | Total Power (kW) | Equipment Source | Image | ||

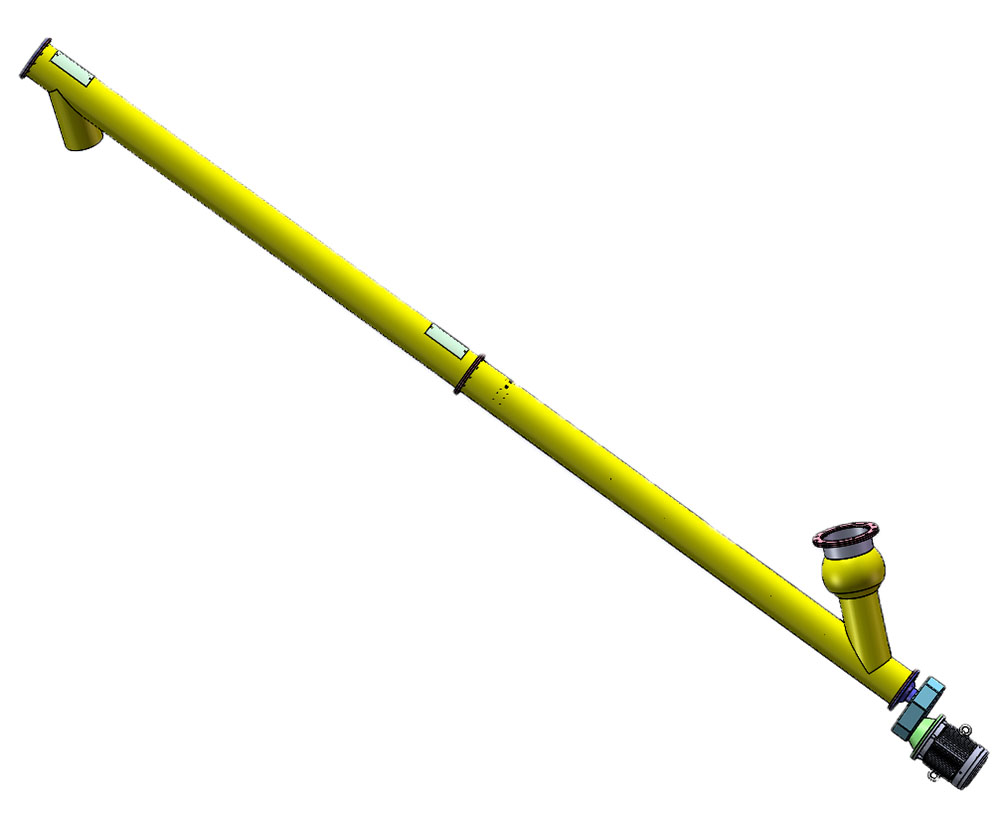

| 1-1 | Screw Feeder | HDSL-001: Dimensions: 8000*350*1100 | 2 | 11.00 | 22.00 | Haizhihui |  | 12000 | 1885.714286 |
| 1-2 | Belt Conveyor | HDPDA-001: Dimensions: 9000*800*800 | 1 | 2.20 | 2.20 | Haizhihui |  | 29400 | 4620 |

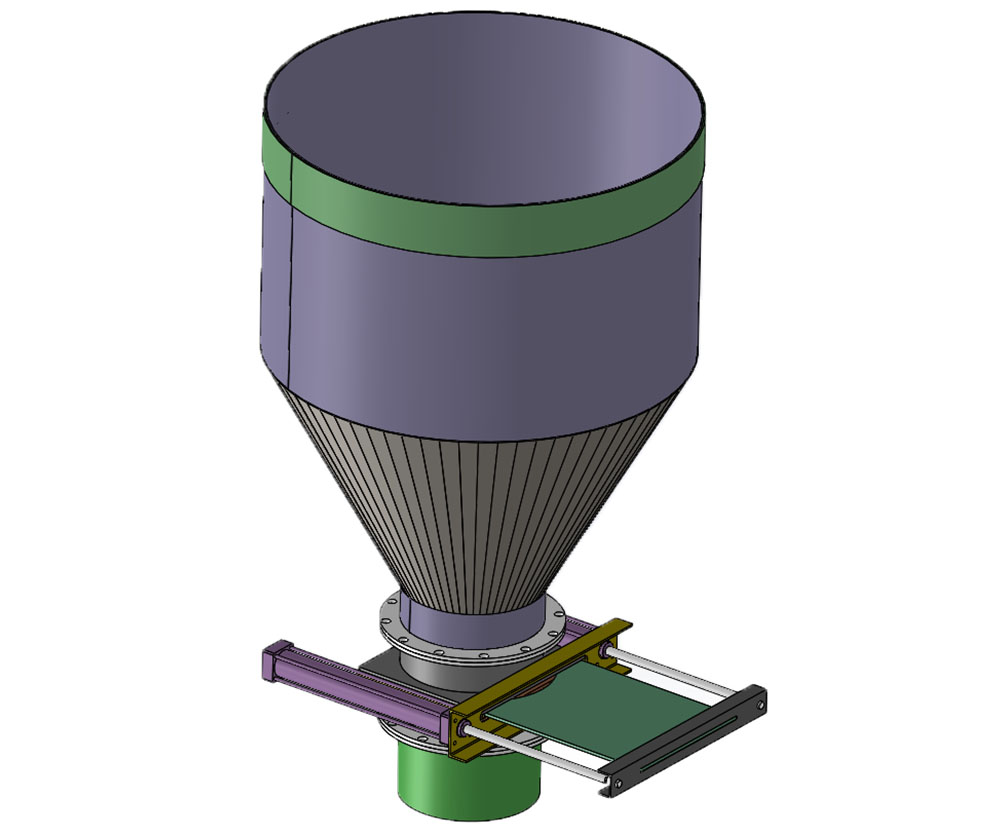

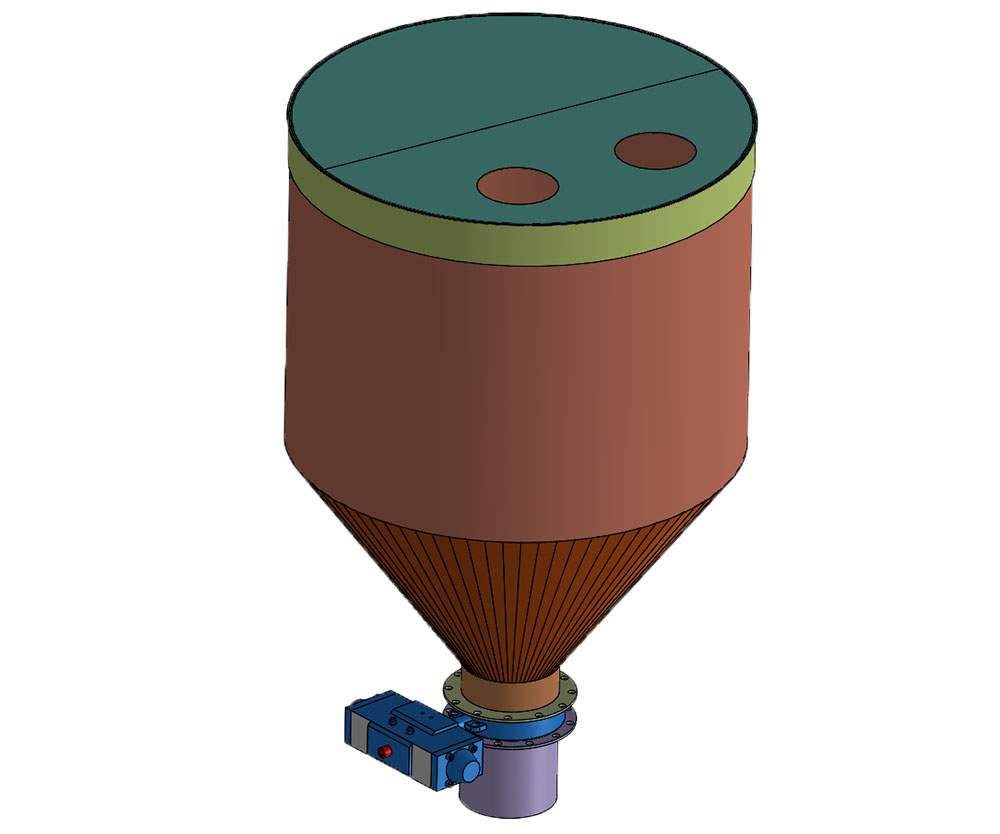

| 1-3 | Powder Metering System | HDFL-001: Dimensions: diameter1310*height1950 | 1 | 0.55 | 0.55 | Haizhihui |  | 16500 | 2592.857143 |
| 1-4 | Conveyor System Metering | HDSS-001: Dimensions: diameter1310*height1950 | 1 | 0.55 | 0.55 | Haizhihui |  | 7500 | 1178.571429 |

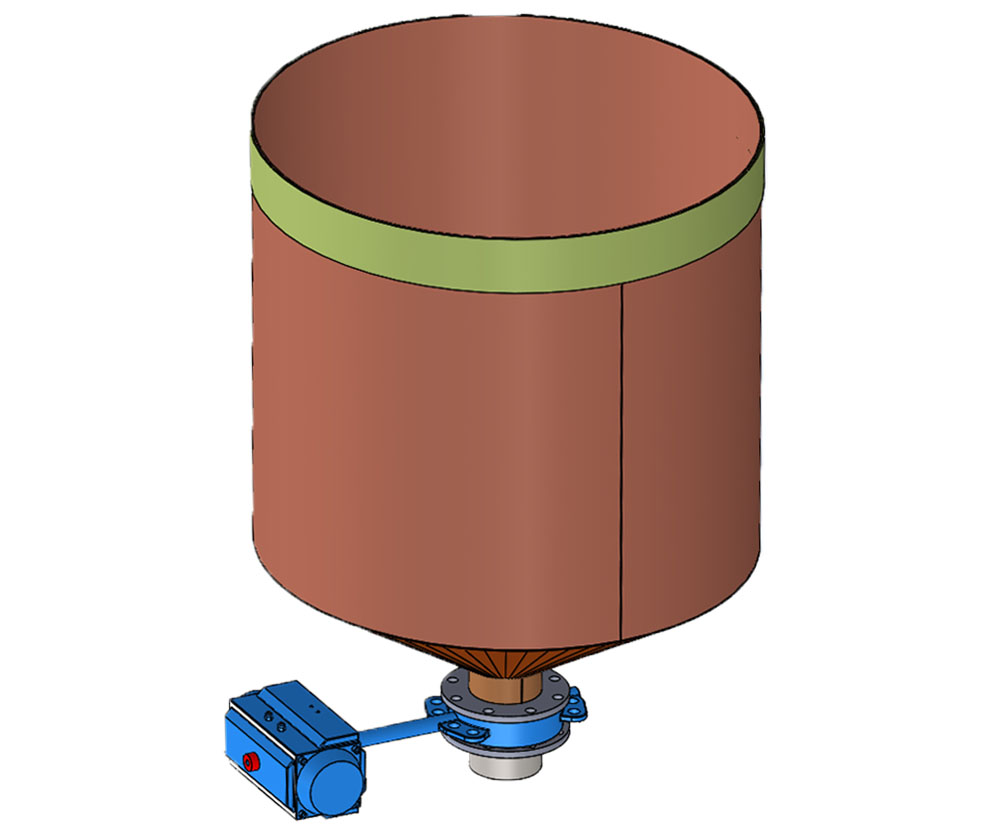

| 1-5 | Water Metering System | HDSL-001: Dimensions: diameter1100*height1140 | 1 | 0.55 | 0.55 | Haizhihui |  | 15600 | 2451.428571 |

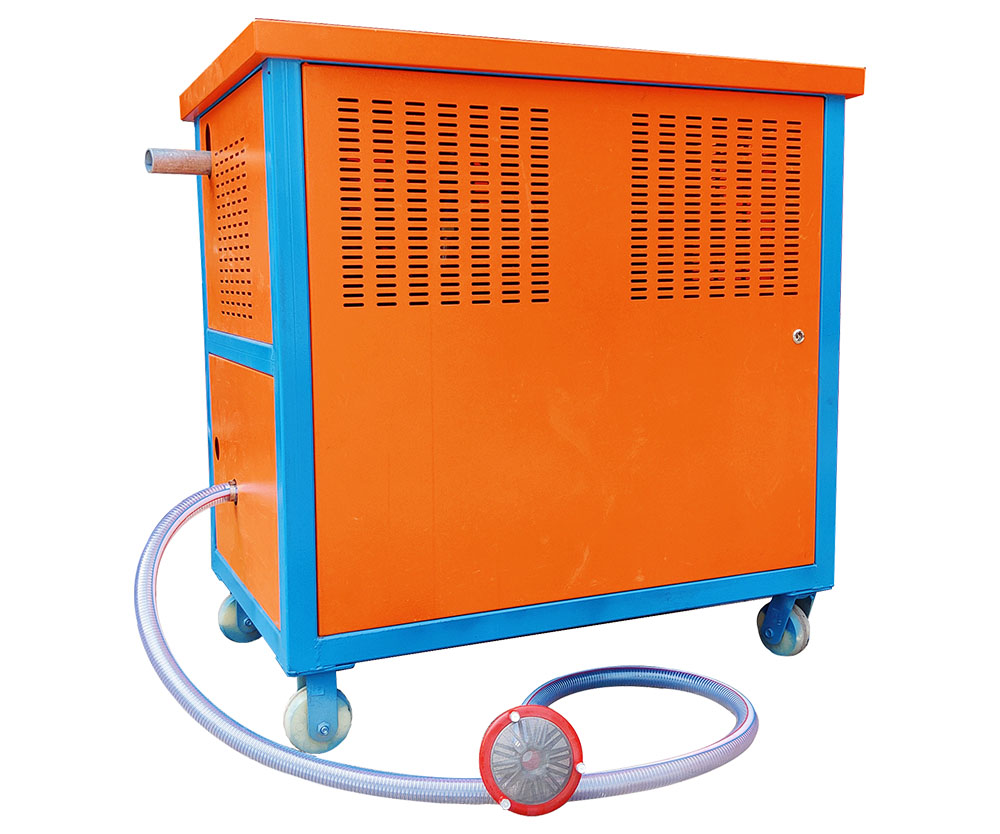

| 1-6 | Physical Foaming Machine | HDKWF1-001: Dimensions: 1150*750*1140 | 1 | 7.50 | 7.50 | Haizhihui |  | 15000 | 2357.142857 |

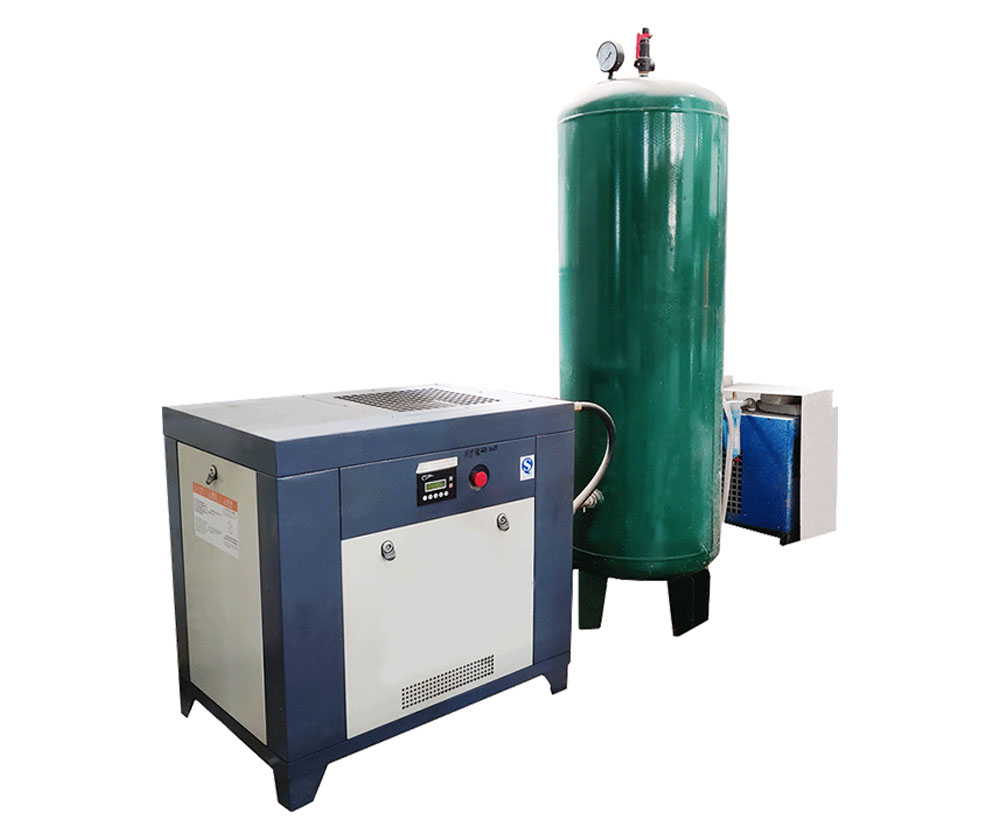

| 1-7 | Screw Air Compressor | HDKY-001 Dimensions: Length 1500 × Width 500 × Height 2000 mm, Air Tank 0.8 m³ × 1 | 1 | 15.00 | 15.00 | Haizhihui |  | 20000 | 3142.857143 |
| 1-8 | Operating Platform | Dimensions: 6000*6400*2600 | 1 | Customer provides materials; manufacturer supplies assembly drawings. |  | 0 | |||

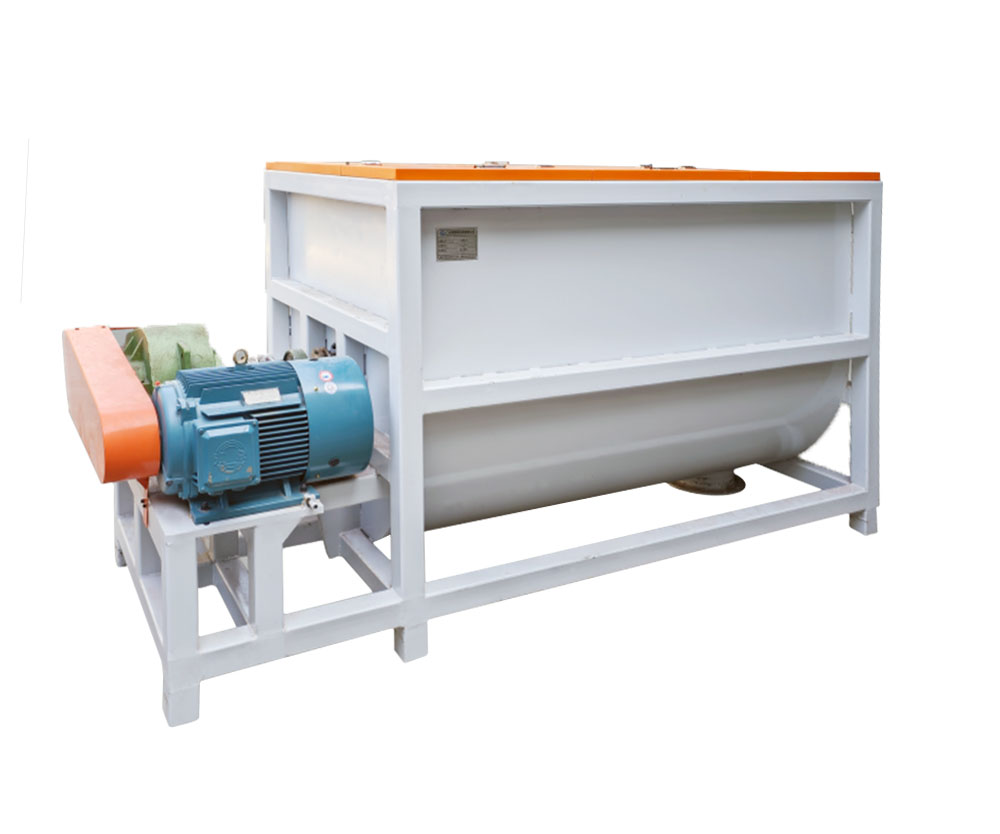

| 1-9 | Specialized Mixer | EPSGF-2 Dimensions: 2000*1300*1400 | 1 | 22.00 | 22.00 | Haizhihui |  | 96000 | 15085.71429 |
| 0 | |||||||||

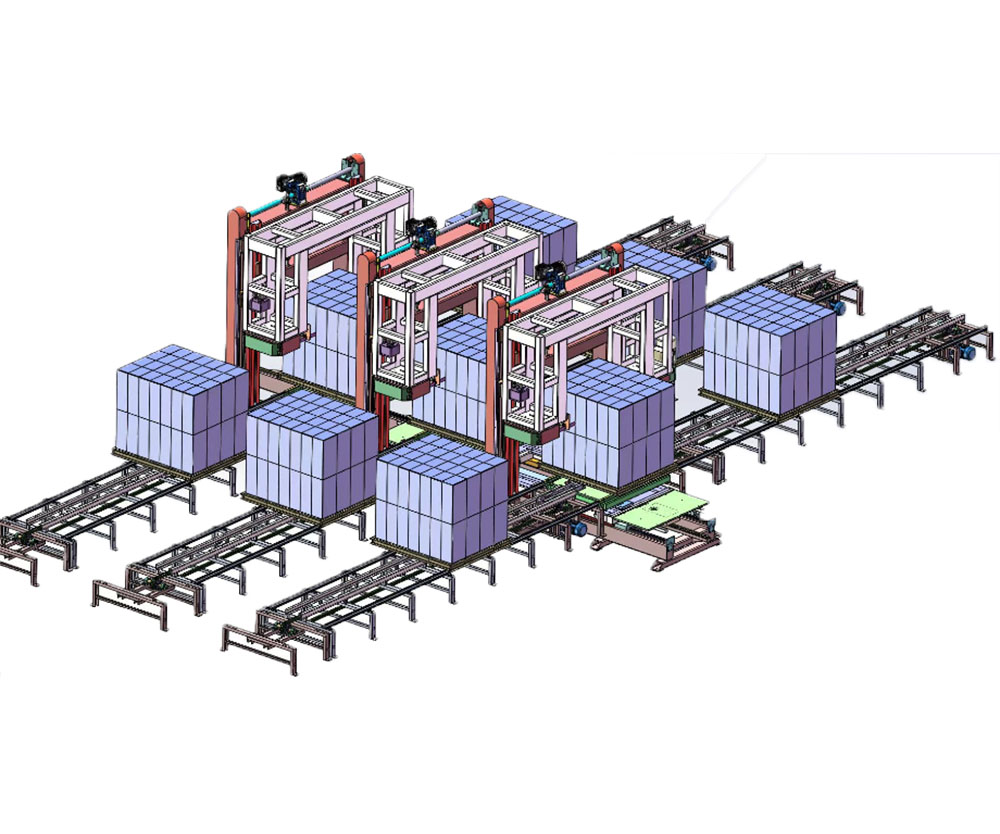

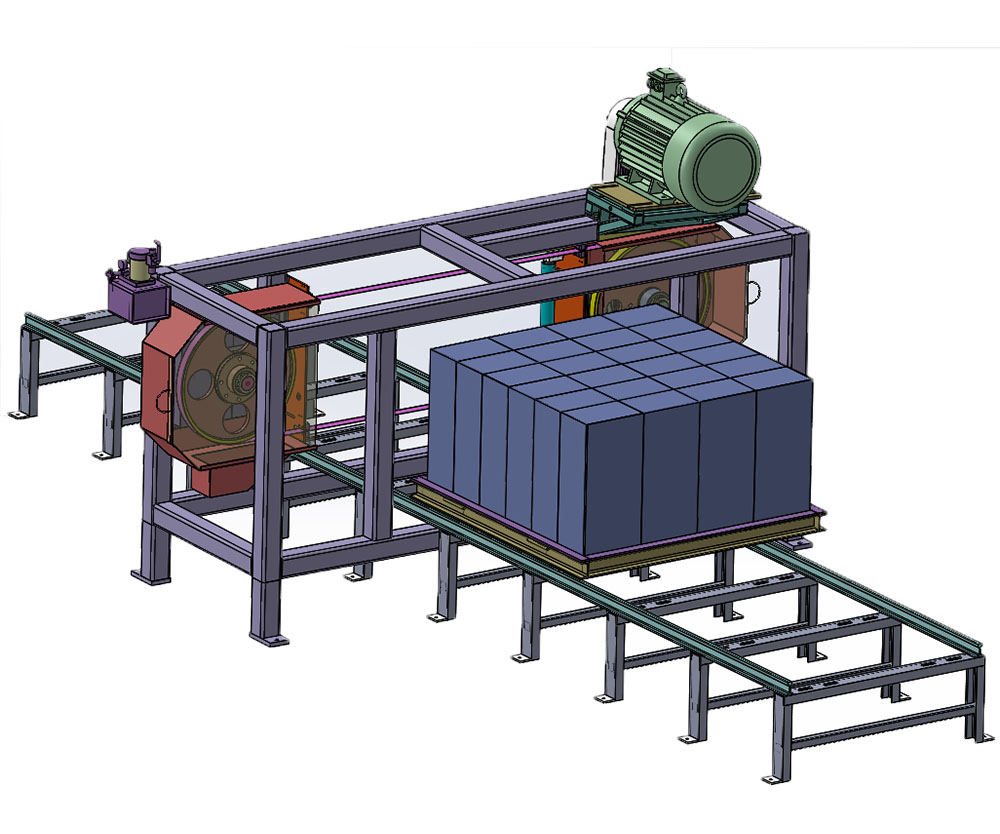

| 2-1 | Three-Gate Rotary Vertical Cutting Saw | HDSQ1-003 Dimensions: 9000*3300*3650 (High Precision with Rotation) (Simultaneously Cuts 3 Blanks) | 1 | 30.80 | 30.80 | Haizhihui |  | 538000 | 84542.85714 |
| 2-2 | Peeling Machine | HDOSD1-001 Dimensions: 3000 × 1000 × 2100 (including power cable) | 1 | 22.00 | 22.00 | Haizhihui |  | 70000 | 11000 |
| 0 | |||||||||

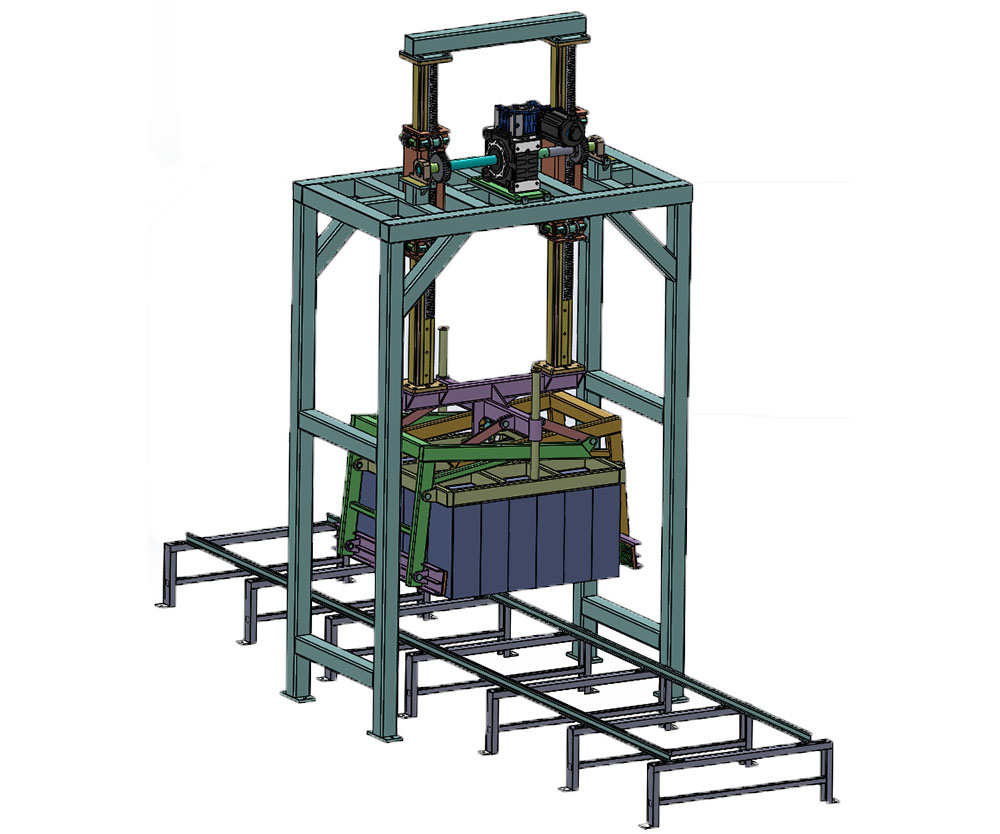

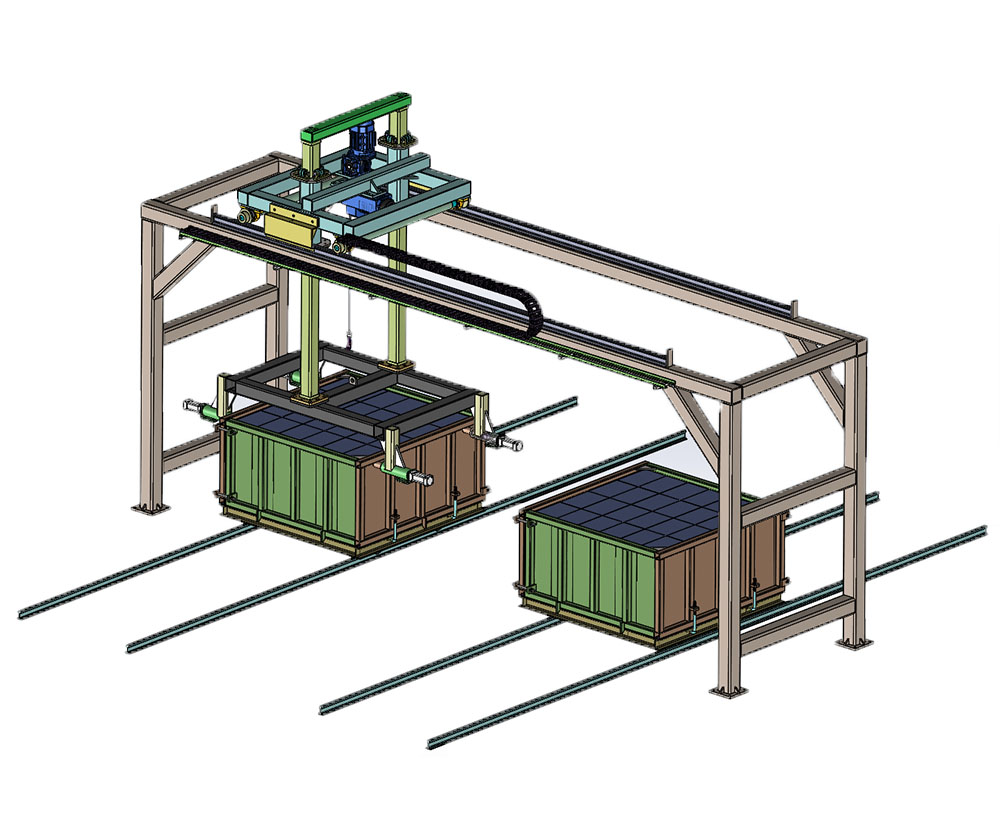

| 3-1 | Demolding Machine (1200mm-wide Block Formwork Box) | HDTH-003: Dimensions: 5600*1530*3100 | 1 | 3.00 | 3.00 | Haizhihui |  | 68000 | 10685.71429 |

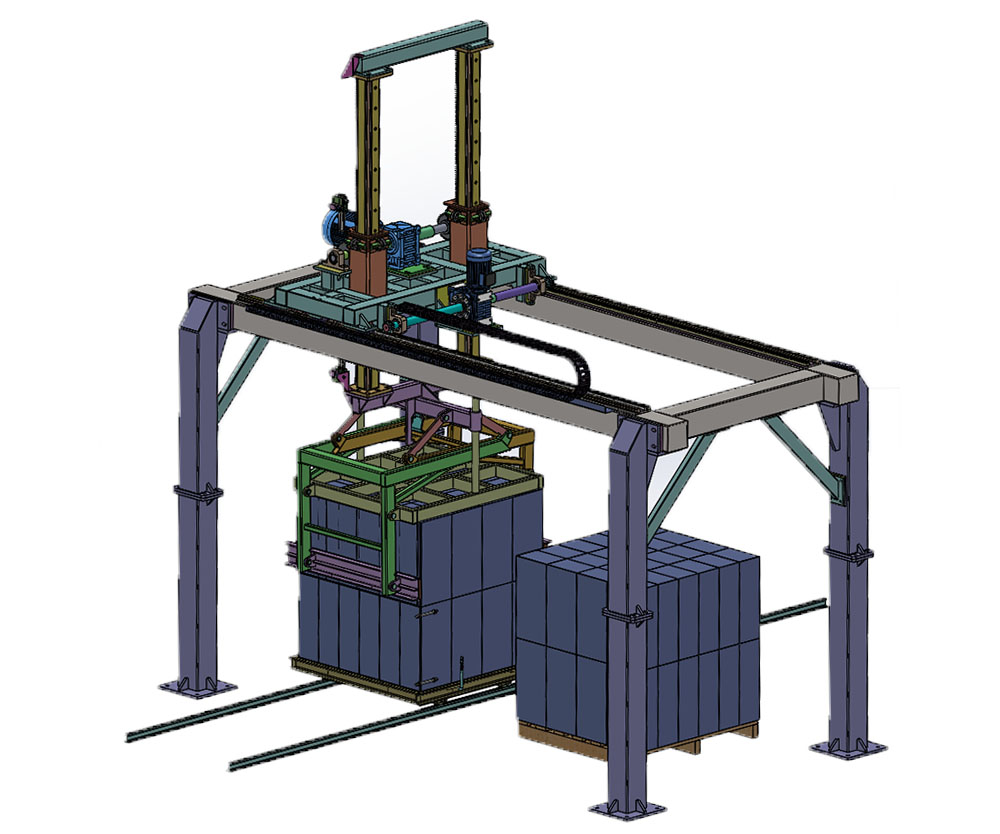

| 3-2 | Palletizer (Mechanical) | HDTH-006: Dimensions: 4800*2600*3800 | 1 | 6.20 | 6.20 | Haizhihui |  | 108000 | 16971.42857 |
| 3-3 | Stacking Machine | HDTH-005: Dimensions: 2430*1330*3900 | 1 | 7.50 | 7.50 | Haizhihui |  | 68000 | 10685.71429 |
| 0 | |||||||||
| 4-1 | Ferry Cart | HDBD2-001 Dimensions: 1800*1080*400 | 6 | 3.00 | 18.00 | Haizhihui |  | 19500 | 3064.285714 |

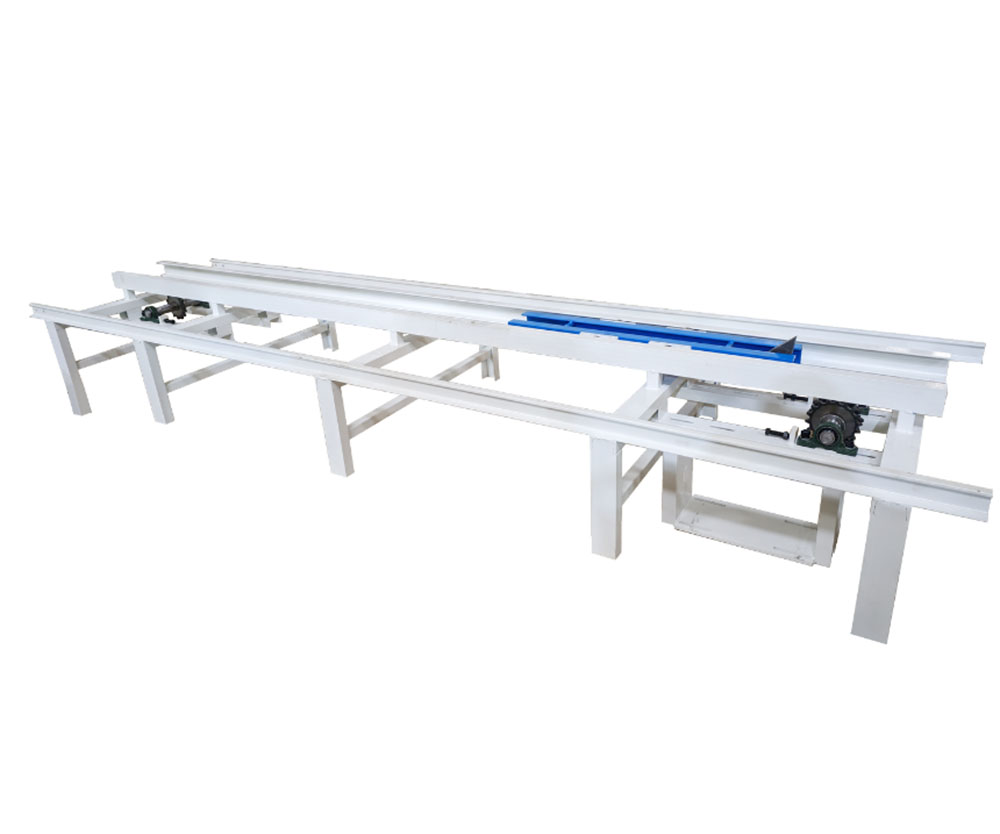

| 4-2 | Demolding Assembly Line | HDSD-001 Dimensions: 6000*1080*470 | 1 | 2.20 | 2.20 | Haizhihui |  | 26500 | 4164.285714 |
| 4-3 | Demolding Assembly Line | HDSD-001 Dimensions: 6000*1080*470 | 1 | 2.20 | 2.20 | Haizhihui |  | 26500 | 4164.285714 |
| 4-4 | Casting Line | HDSD-001 Dimensions: 6000*1080*470 | 1 | 2.20 | 2.20 | Haizhihui |  | 26500 | 4164.285714 |

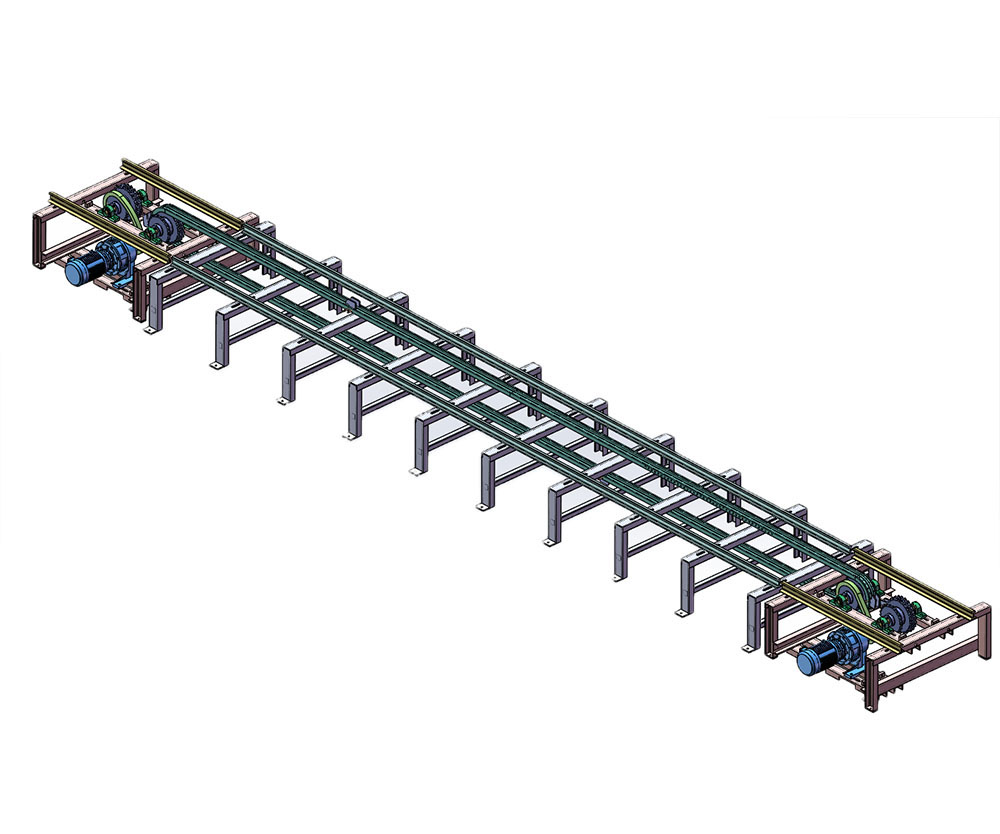

| 4-5 | Automatic Feeding Line | HDZD-001 Dimensions: 4m*1.1m | 3 | 0.30 | 0.90 | Haizhihui |  | 15000 | 2357.142857 |
| 4-6 | Automatic Discharge Line | HDZD-002Dimensions: 4m*1.1m | 3 | 0.30 | 0.90 | Haizhihui |  | 15000 | 2357.142857 |
| 0 | |||||||||

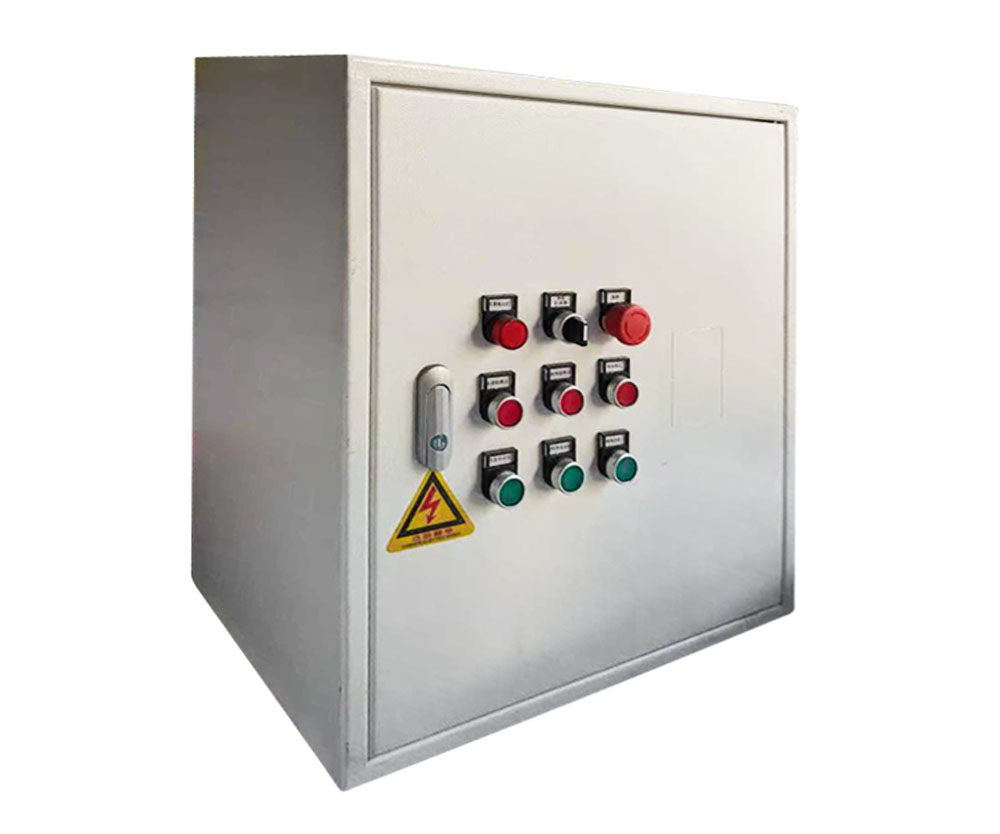

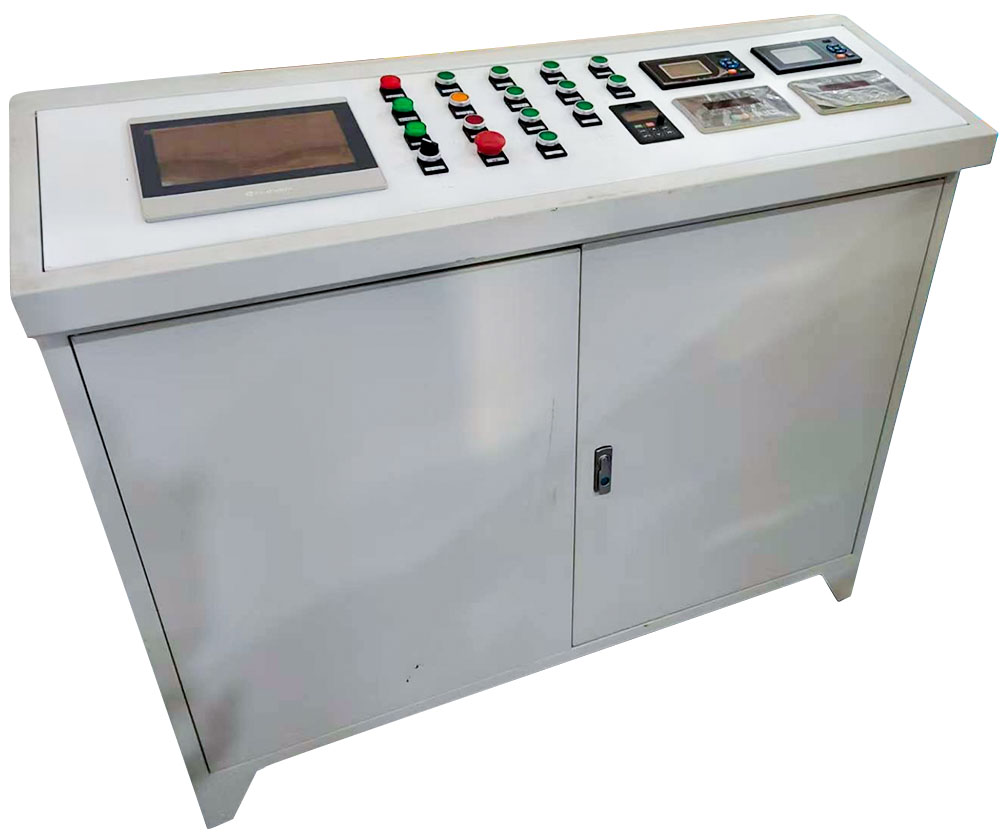

| 5-1 | Platform Main Control Cabinet | HDKZ1-001 Dimensions: 1300*1100*400 | 1 | Haizhihui |  | 50700 | 7967.142857 | ||
| 5-2 | Foam Machine Electrical Cabinet | HDCBD1-001Dimensions: 700*500*400 | 1 | Haizhihui |  | 6800 | 1068.571429 | ||
| 5-3 | Remote Module | Import data, remote operation | 1 | Haizhihui |  | 2000 | 314.2857143 | ||
| 5-4 | Mold | HDCM1-002 Dimensions: 1220*1220*630（set） | 174 | Haizhihui |  | 3500 | 550 | ||
| 166KW | |||||||||
Solution

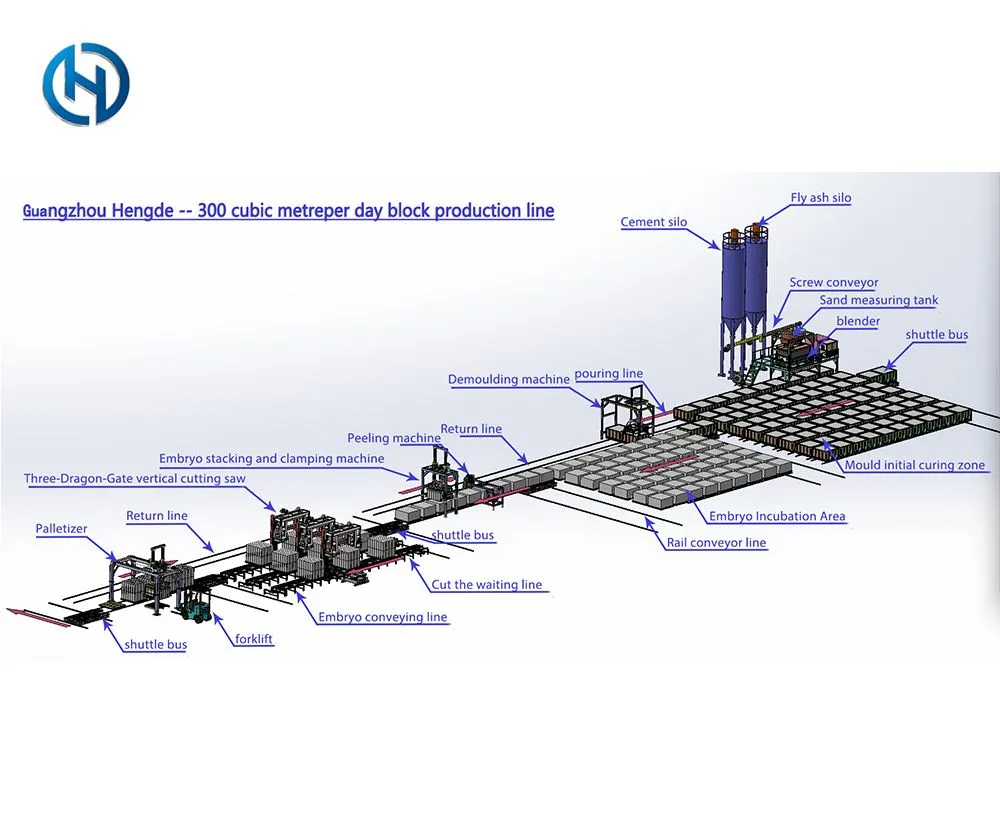

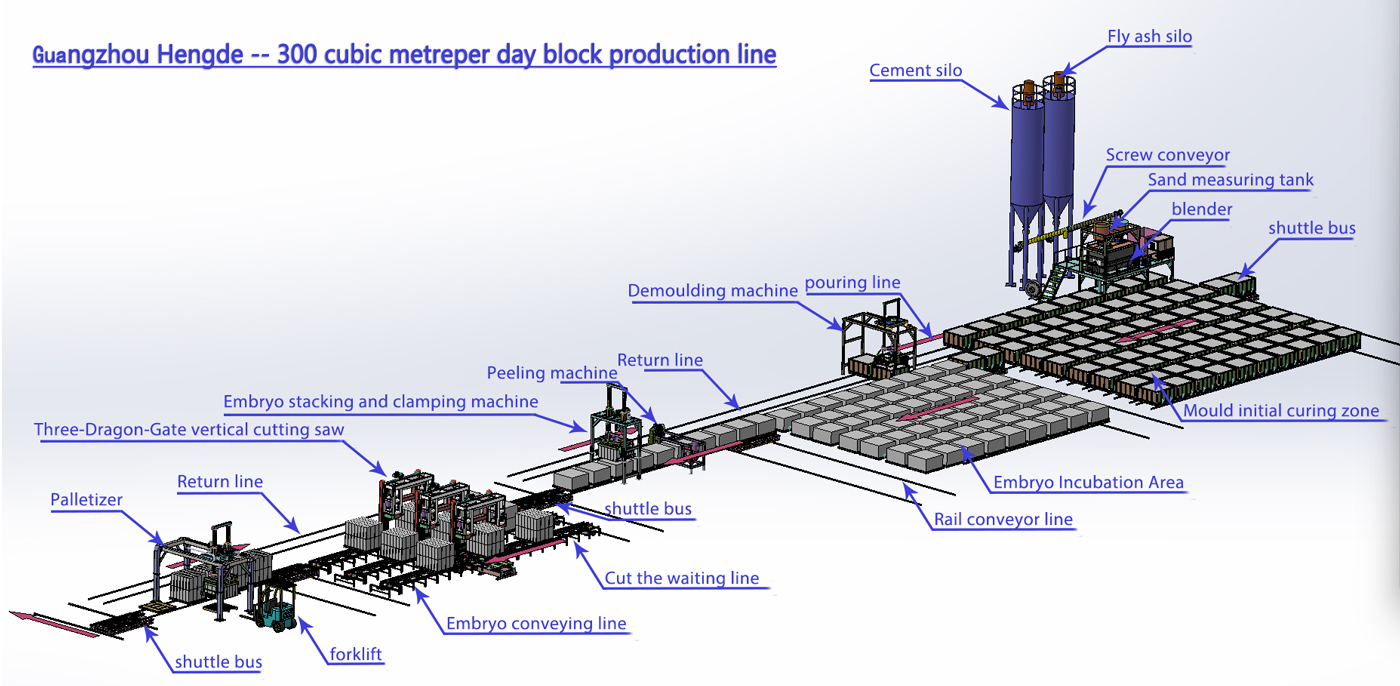

This production line integrates core equipment such as a feeding and metering system, foaming system, automatic mixing system, casting and molding system, demolding and return system, peeling system, three-gantry rotary vertical cutting system, automatic conveying system, and automatic packaging and palletizing system, forming a complete automated lightweight block production solution.
The entire line has a stable production rhythm, requiring only 8–10 workers to meet continuous production needs. The equipment is easy to operate, has low maintenance costs, and is suitable for long-term stable operation.
Actual Results
This production line operates stably, is easy to maintain, and can sustain high-intensity production. The finished blocks have high dimensional accuracy, with tolerances controlled within ±1mm, resulting in neat product appearance and low waste.
It can produce a variety of lightweight wall materials according to customer product plans, meeting diverse market demands.
Based on a stable production capacity of 300 cubic meters, overall output can be further increased by adding a cutting system module.
