Scene Description
The standard version of the 200 cubic meter block production line is suitable for the production needs of small and medium-sized building materials enterprises.
Basic Parameters
| Serial Number | Name | Equipment model, specifications, and related parameters (length, width, height) Unit: MM | Number of devices | Power of a single machine （kw） | Gross power （kw） | Source of equipment | Notes |

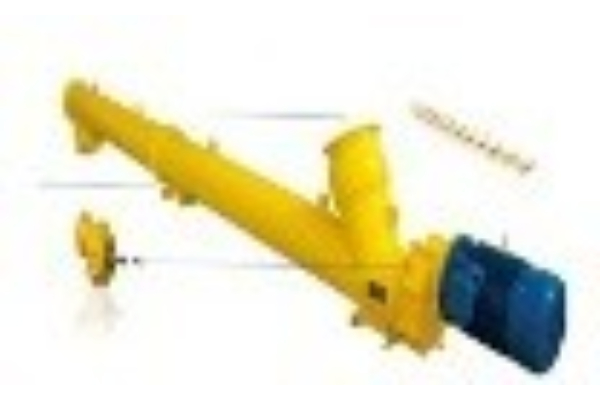

| 1-1 | Screw feeder | HDSL-001 Size: φ219mm*6M | 2 | 11.00 | 22.00 | HaiZhiHui Machine |  |

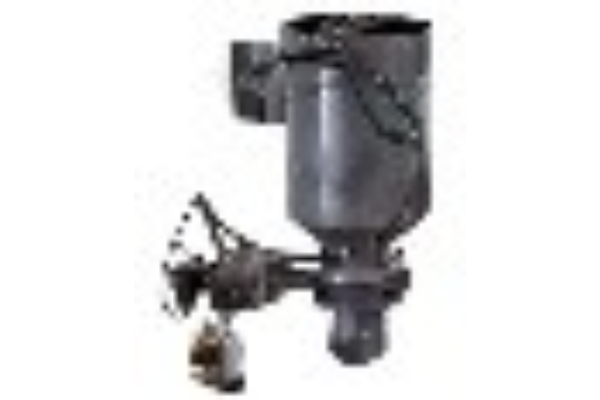

| 1-2 | Power Metering System | HDFL-001Size: 1.2m*1.5m*1.4m | 1 | 0.55 | 0.55 | HaiZhiHui Machine |  |
| 1-3 | Water Metering System | HDSL-001Size: φ1m*1.4m | 1 | 0.55 | 0.55 | HaiZhiHui Machine |  |

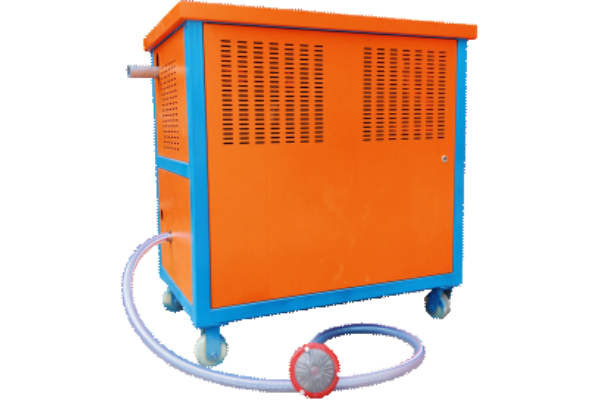

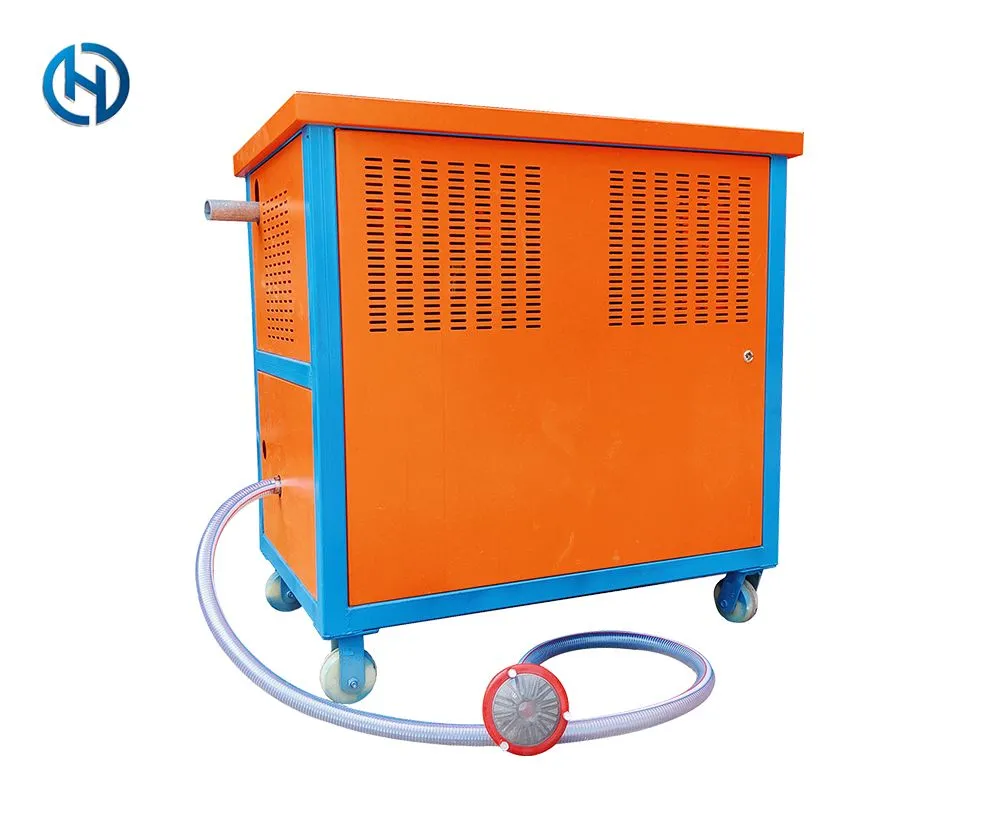

| 1-4 | Physical Foaming Machine | HDWF-001Size: 1100*700*1000 | 1 | 7.50 | 7.50 | HaiZhiHui Machine |  |

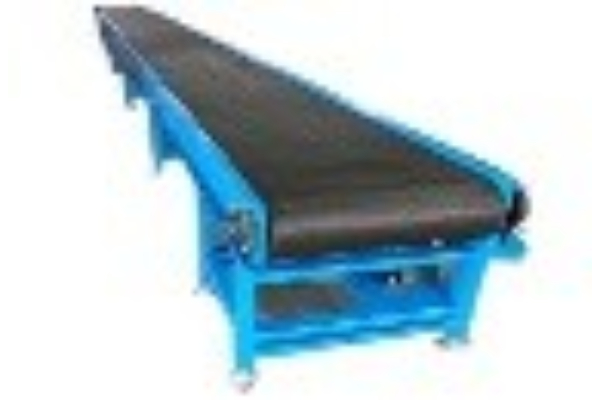

| 1-5 | Belt Conveyor | HDPD-001Length: 9m | 1 | 2.20 | 2.20 | HaiZhiHui Machine |  |

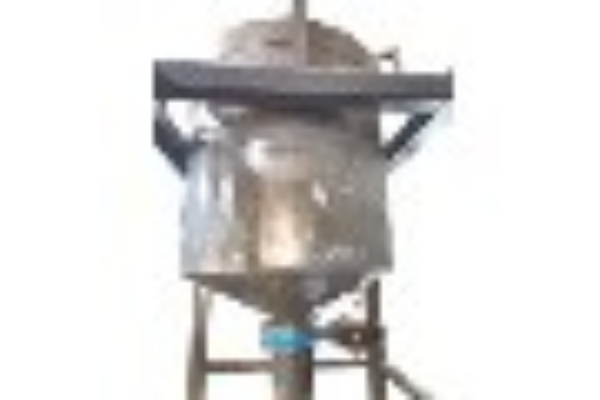

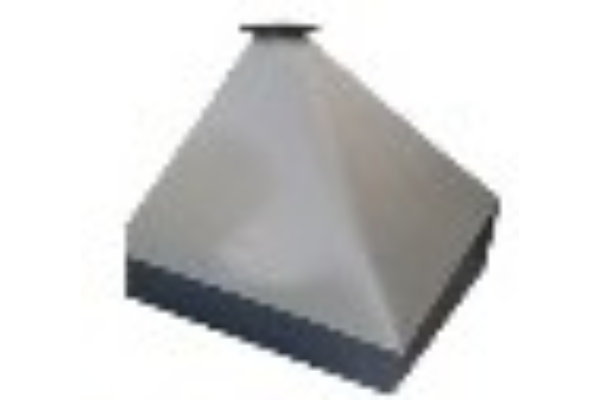

| 1-6 | Matching Metering for Conveyor | HDSS-001Measuring hopper size1000×1000×1000 | 1 | 0.55 | 0.55 | HaiZhiHui Machine |  |

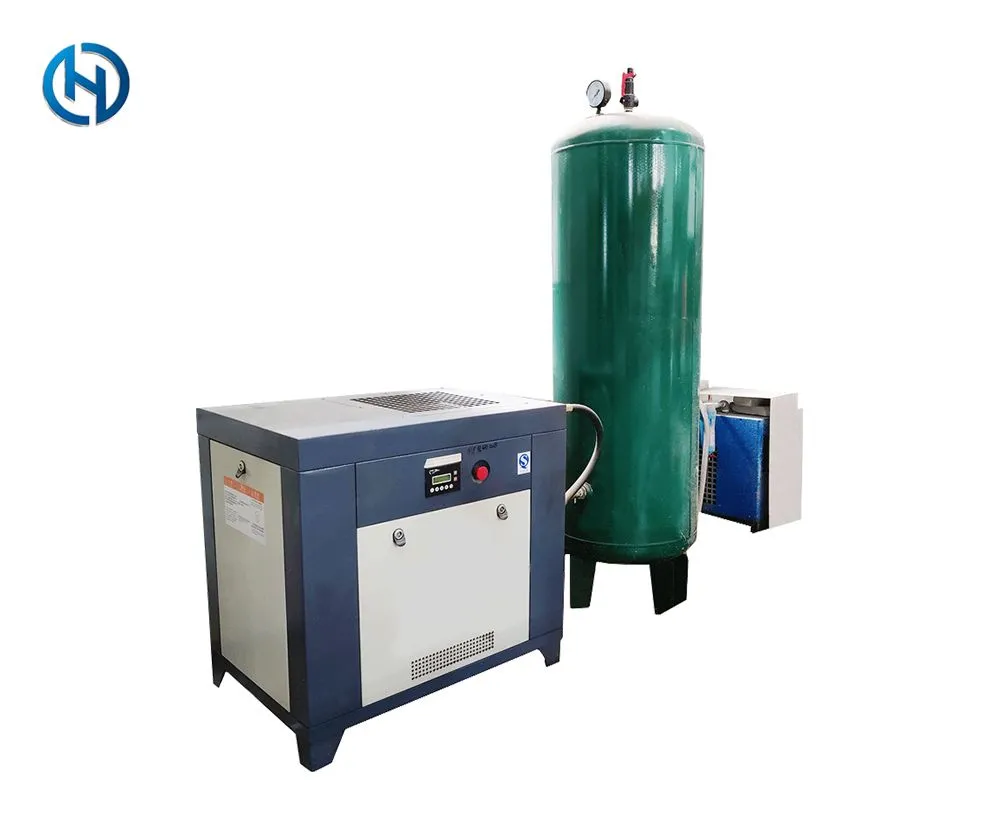

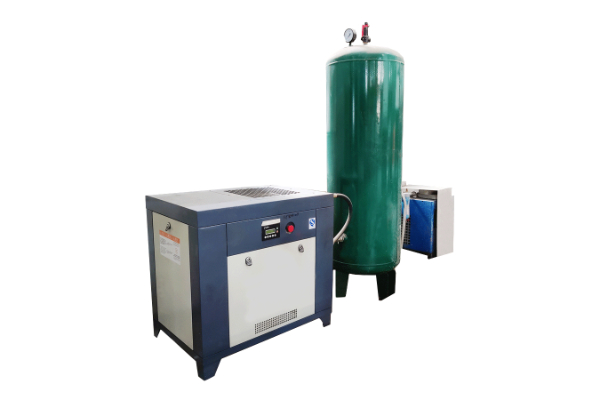

| 1-7 | Screw air compressor | HDKY-001 Size: 1500*500*2000mm, gas tank0.8cubics*1 | 1 | 15.00 | 15.00 | HaiZhiHui Machine |  |

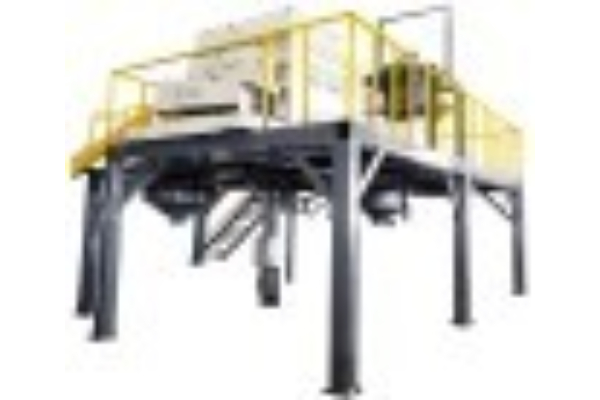

| 1-8 | Operation Platform (DO NOT Supply) | Size: 6000*6400*2600 | 1 | Customers provide drawings from manufacturers |  | ||

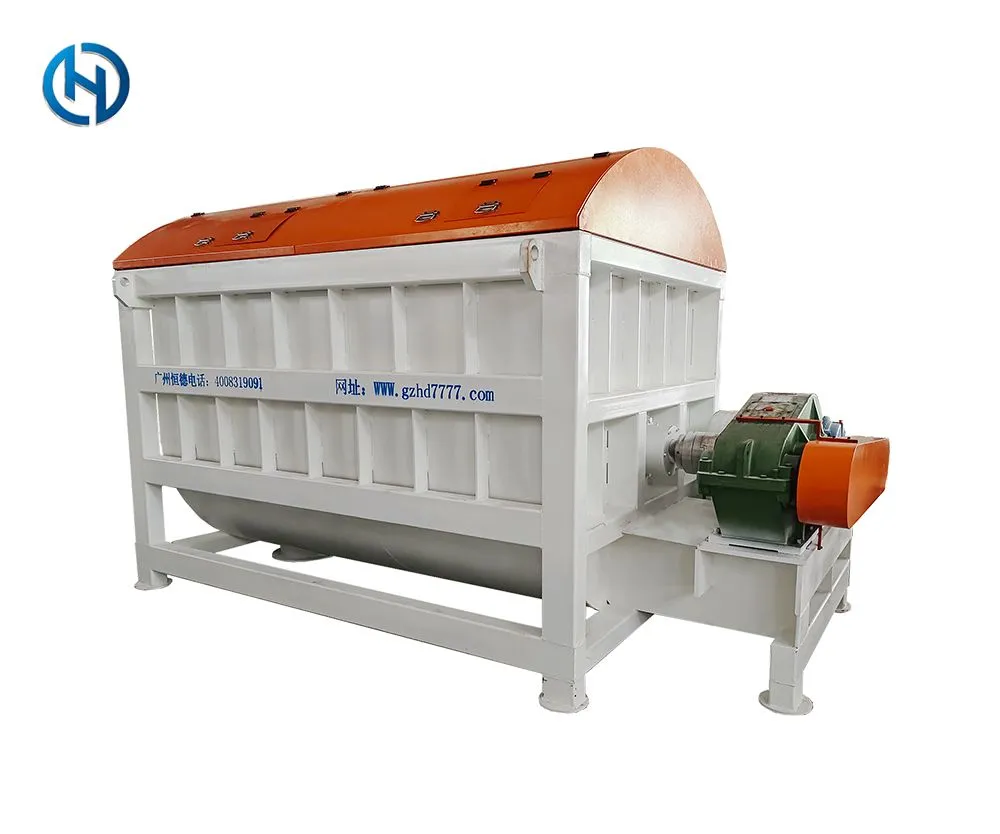

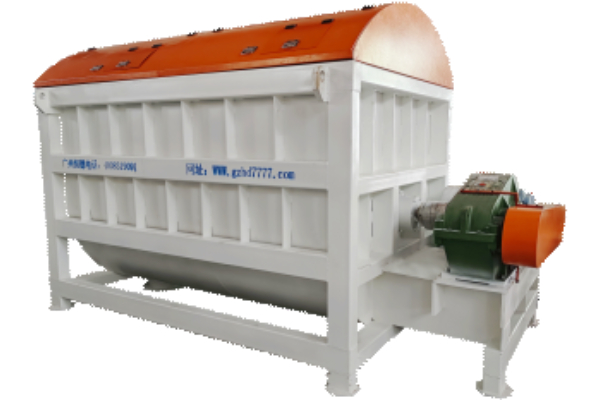

| 1-9 | Special mixer | EPSJB-1 Size: 18000*1200*1200 | 1 | 22.00 | 22.00 | HaiZhiHui Machine |  |

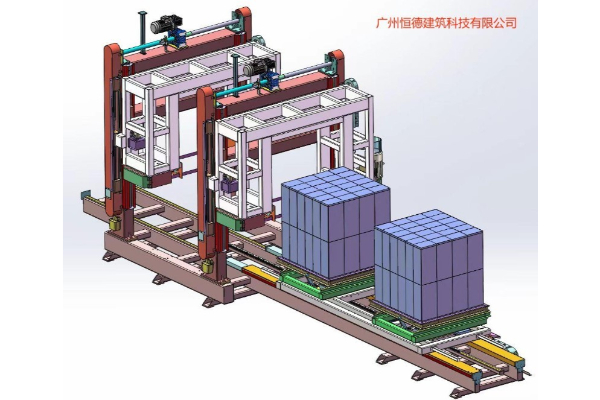

| 2-1 | Double-Heads Gantry Vertical cutting machine | HDAW-002 Size: 8m*3.1m*3.9m | 1 | 20.90 | 20.90 | HaiZhiHui Machine |  |

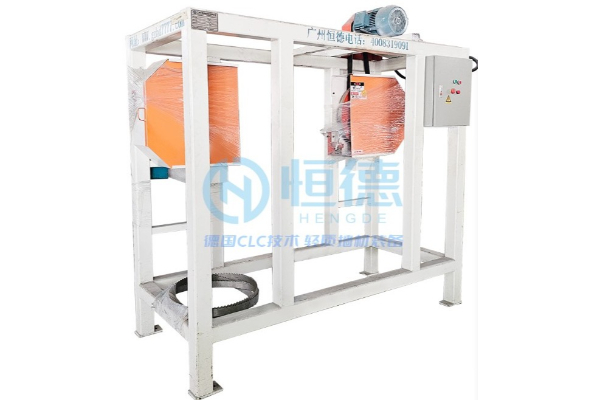

| 2-2 | Peeling Machine | HDQP-001 Size: 2m*1.5m*1.85m | 1 | 22.00 | 22.00 | HaiZhiHui Machine |  |

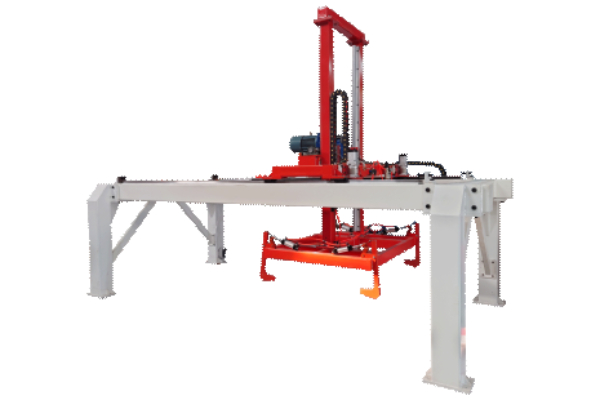

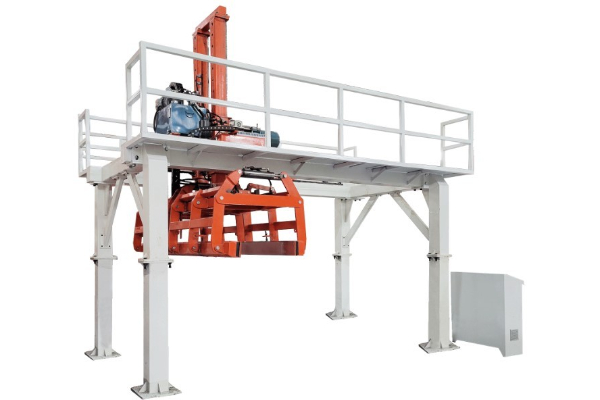

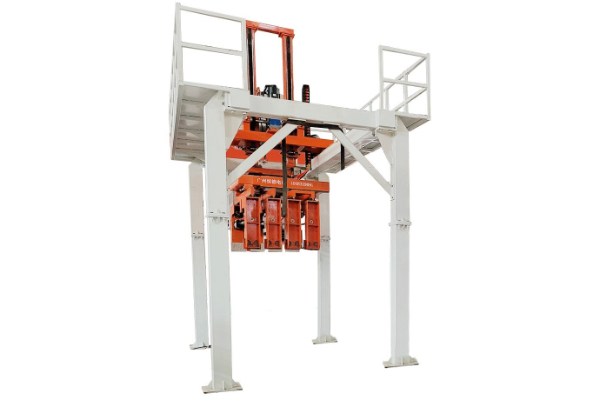

| 3-1 | Demold Hanger Machine | HDFG-001 Size: 4.8m*4.2m*2.5m | 1 | 5.00 | 5.00 | HaiZhiHui Machine |  |
| 3-2 | Auto-Palletizing machine | HDDB Size: 4.8m*3.1m*3.6m | 1 | 5.50 | 5.50 | HaiZhiHui Machine |  |
| 3-3 | Embryo Stacking machine | HDYUK-A01 Size: 4.2m*2.5m*3.2m | 1 | 3.5 | 3.5 | HaiZhiHui Machine |  |

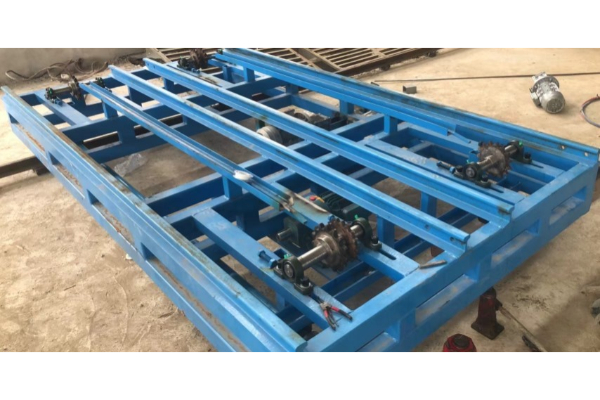

| 4-1 | Ferry car | HDBD-001 Size: 2m*1.5m | 5 | 1.12 | 5.60 | HaiZhiHui Machine |  |

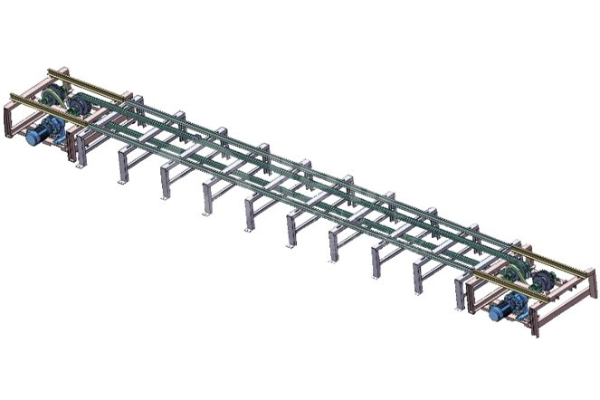

| 4-2 | Demolding line | TM-001 Size: 18m*1.1m | 1 | 2.20 | 2.20 | HaiZhiHui Machine |  |
| 4-3 | Return mold production line | HM-001 Size: 18m*1.1m | 1 | 1.50 | 1.50 | HaiZhiHui Machine |  |
| 4-4 | Pouring line | JZ-001 Size: 18m*1.1m | 1 | 1.50 | 1.50 | HaiZhiHui Machine |  |
| 4-5 | Automatic feeding line | HDZD-001 Size: 4m*1.1m | 2 | 0.30 | 0.60 | HaiZhiHui Machine |  |
| 4-6 | Automatic discharging line | HDZD-002Size: 4m*1.1m | 2 | 0.30 | 0.60 | HaiZhiHui Machine |  |
| 5-1 | Platform PLC main control cabinet | HDKZ1-001 Size: 1300*1100*45 | 1 | HaiZhiHui Machine |  | ||

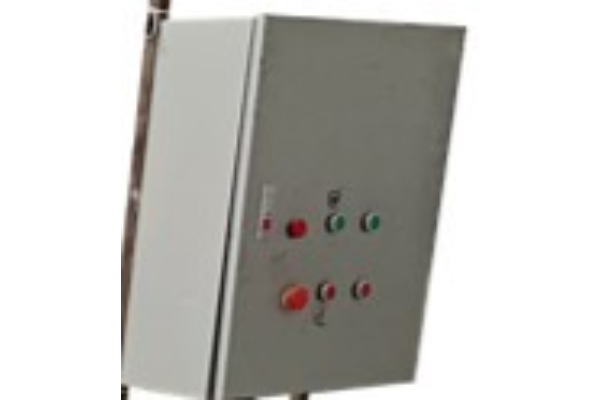

| 5-2 | Foaming Electrical cabinet | HDCB-001 Size: 700*500*400 | 1 | HaiZhiHui Machine |  | ||

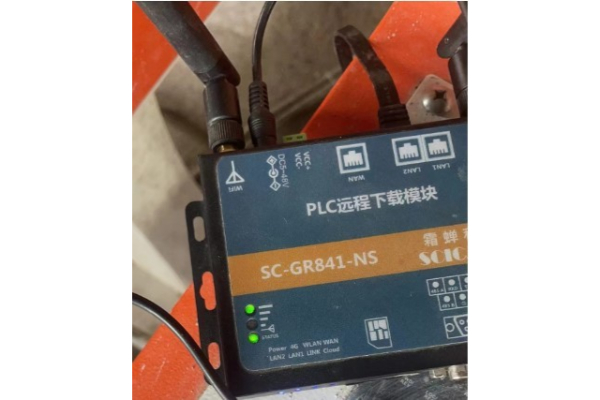

| 5-3 | Remote moudule | Pouring raw material into the square container. | 1 | HaiZhiHui Machine |  | ||

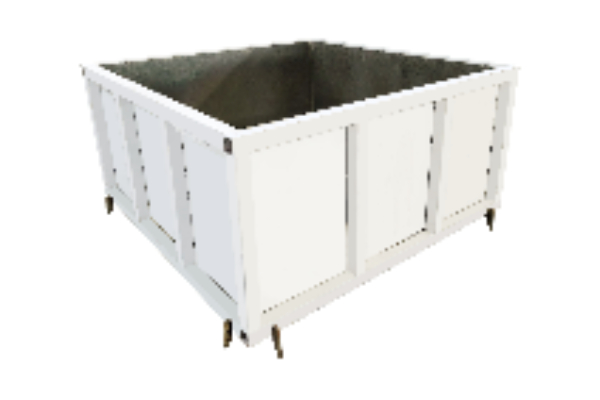

| 5-4 | Mold | HDCM1-002 Size: 1.2m*1.2m*0.62m | 1 | HaiZhiHui Machine |  |
Solution

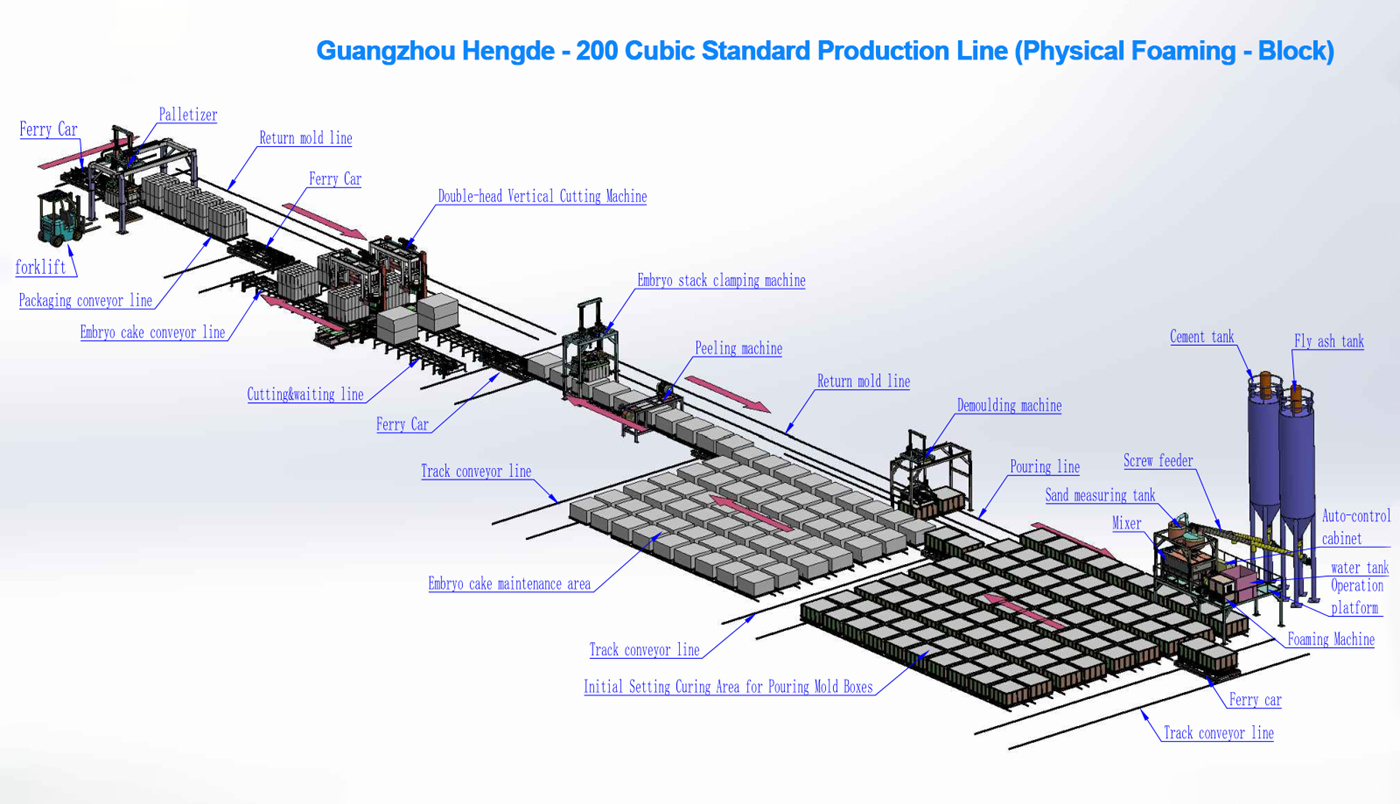

The production line includes core equipment such as a feeding and metering system, a foaming and mixing system, an automatic demolding device, and a double-track rotary vertical cutting machine. It is easy to operate, requiring only 8 workers to complete production. The equipment is simple to operate and maintain. This production line can produce various products such as aerated concrete blocks, homogeneous self-insulating blocks, and ceramsite blocks.

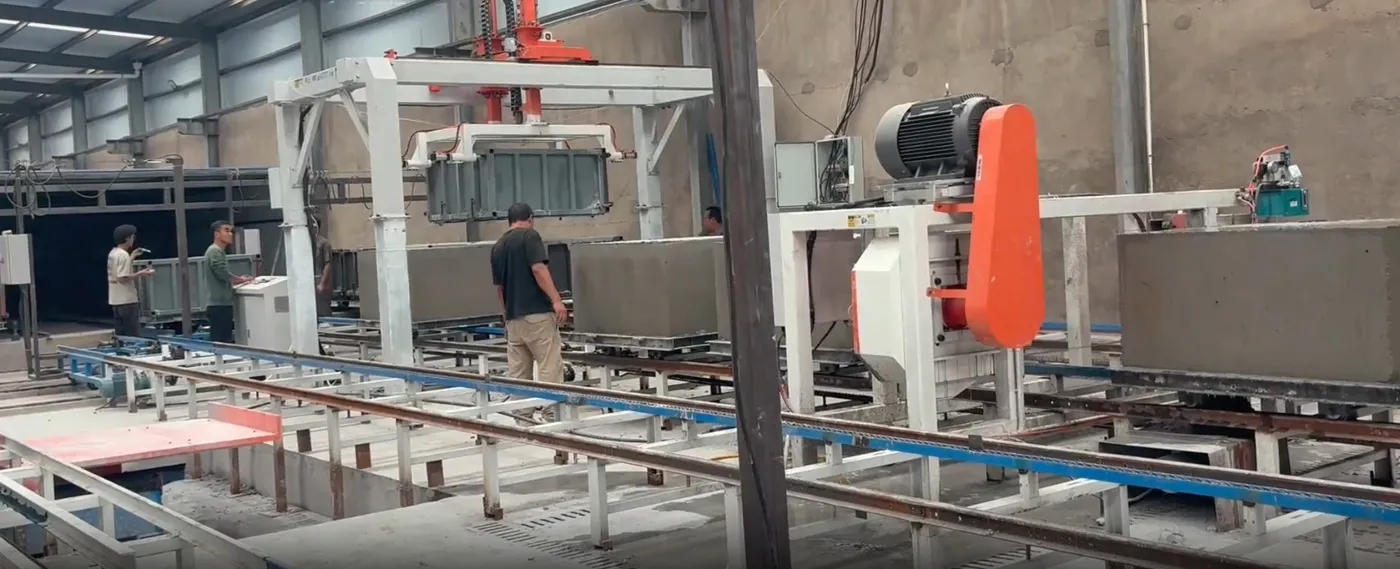

Actual Effect
Daily output is 200 cubic meters, with high product dimensional accuracy and a tolerance of only about 1mm. It occupies approximately 5 acres of land, requiring a production workshop of 1500-1800 square meters. A cutting system can be added later to increase output. It is the first choice for small and medium-sized scale production.
HOW CAN WE HELP YOU?
We can provide free design and research of different solutions based on your detailed needs. If you need any assistance before making a final decision, please feel free to contact us at any time. We are happy to add value to you!
