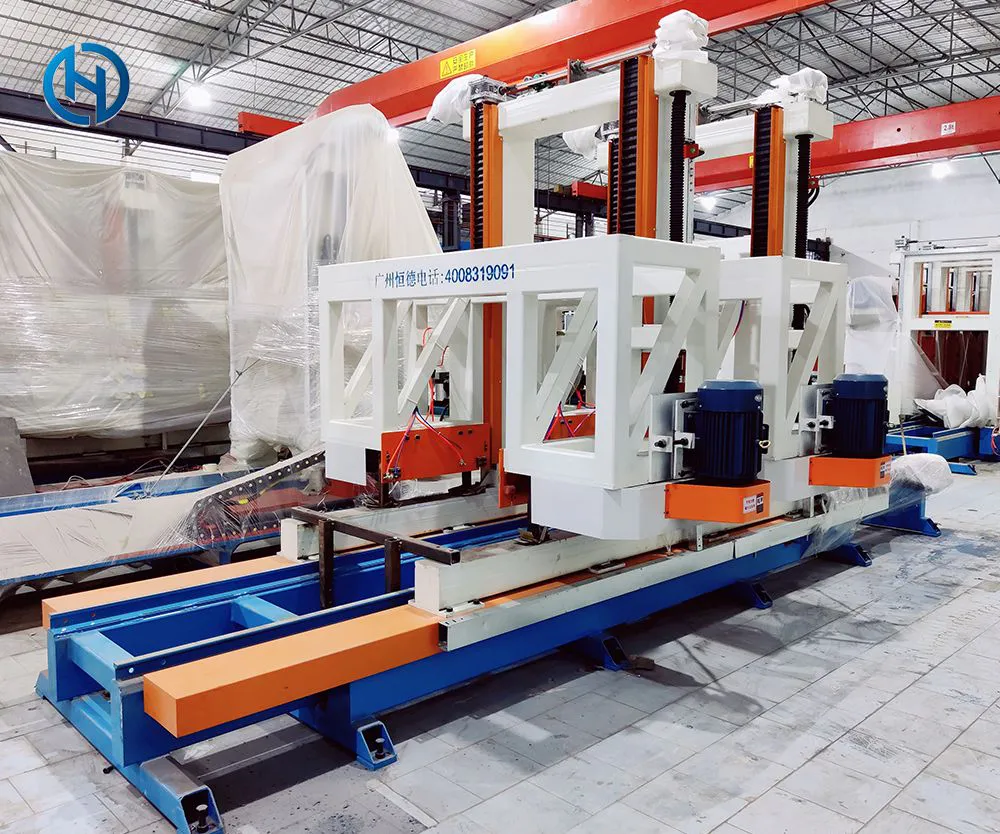

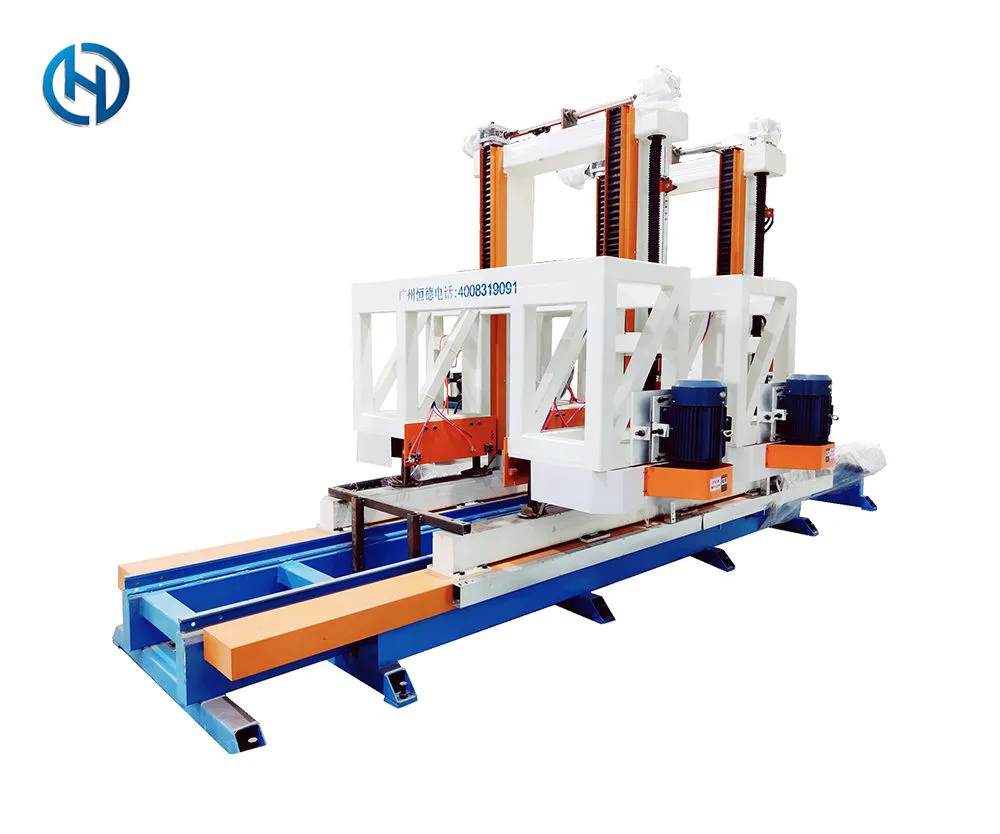

Double-Track Gantry Vertical Concrete Cutter

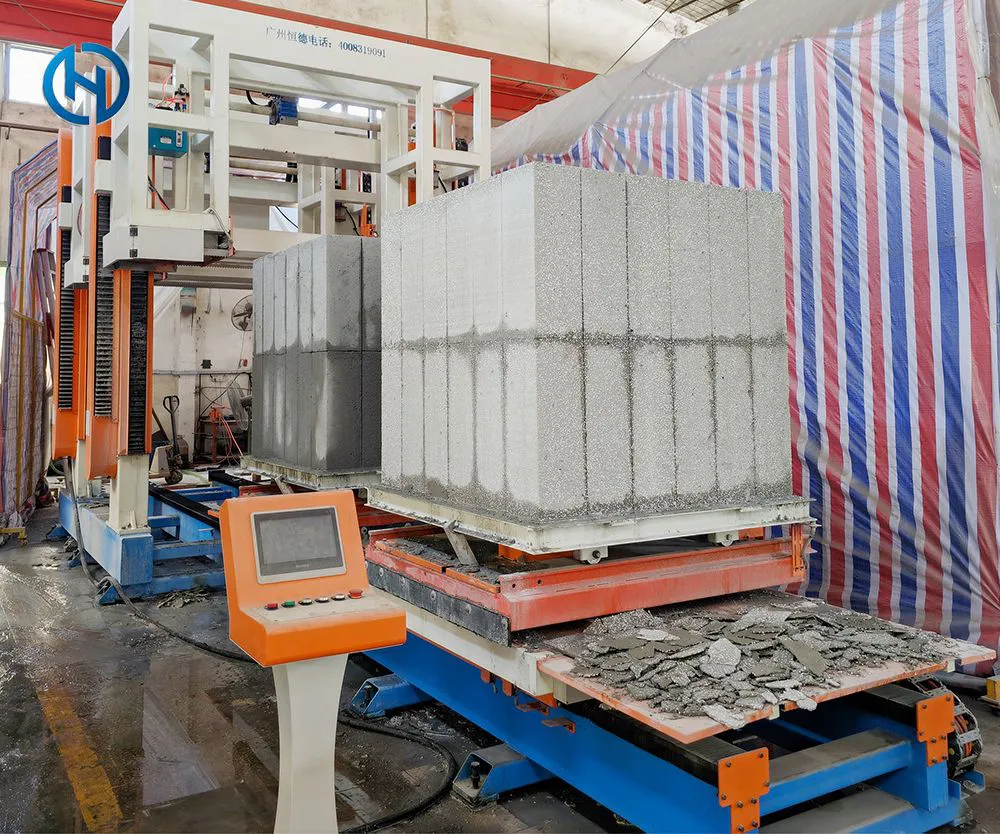

The double-track gantry vertical concrete cutter with rotary table is designed for high-efficiency cutting in lightweight concrete block production. It features two synchronized vertical cutting saws, allowing four moulded blocks each measuring 1.2m × 1.2m × 0.6m to be processed simultaneously, with a total cutting volume of up to 3.44m³ per cycle. The mould base includes a 90° rotary table, enabling smooth two-directional cutting in a single setup.

This cutter delivers both vertical and horizontal cuts in one operation, dramatically reducing equipment and labor costs. Its fully PLC-controlled system allows easy adjustment of cutting sizes (within 600mm) with outstanding precision achieving dimensional errors of less than 1mm. The entire process is automated without removing the concrete cake from the bottom plate, ensuring smooth surfaces and clean edges. Contact us to integrate this high-performance concrete cutter into your production line for optimal results and cost savings.
