Cutting output: Up to 100 cubic meters per shift
Equipment Parameters
Model: HDSMSQ-001
Function: Vertical cutting (dual-mode)
Dimensions: 6150*3300*3850 mm
Power: 36.60 kW
Cutting dimensions: 20*20*20
Description

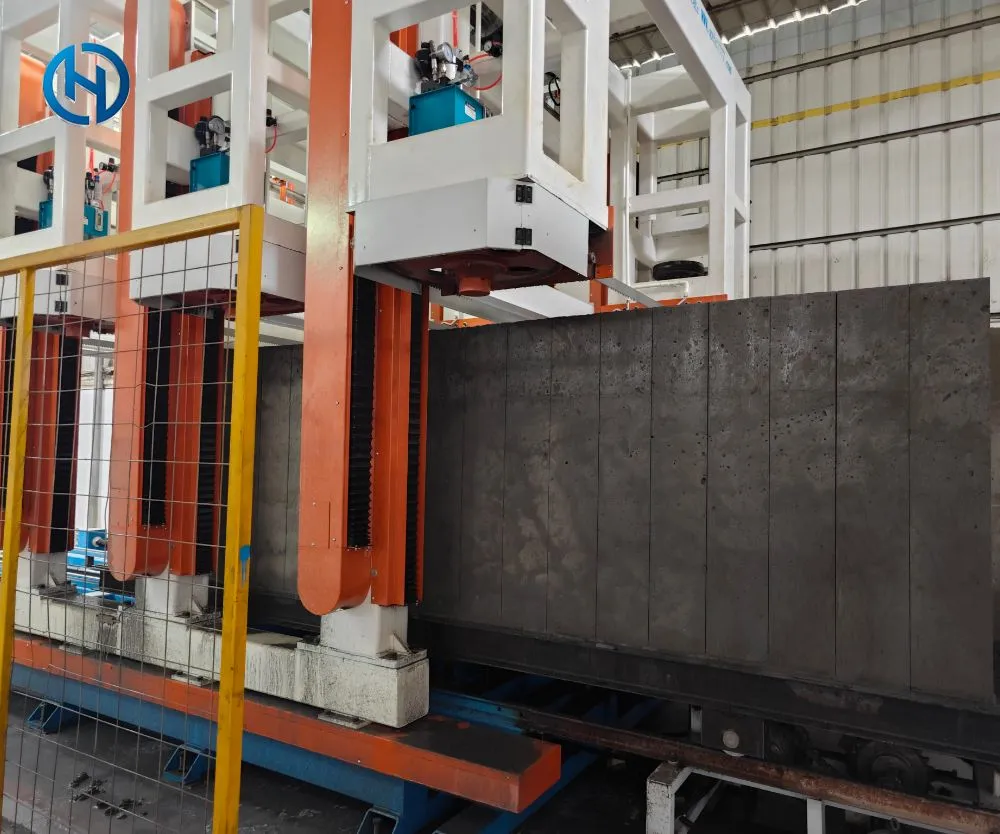

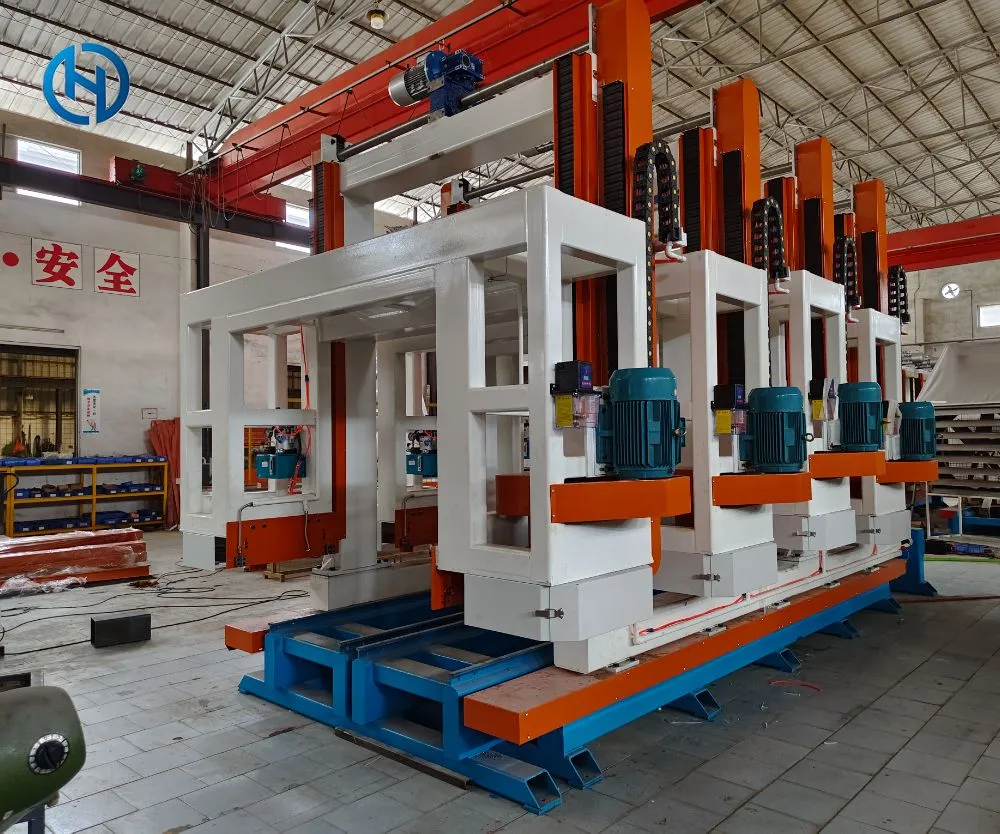

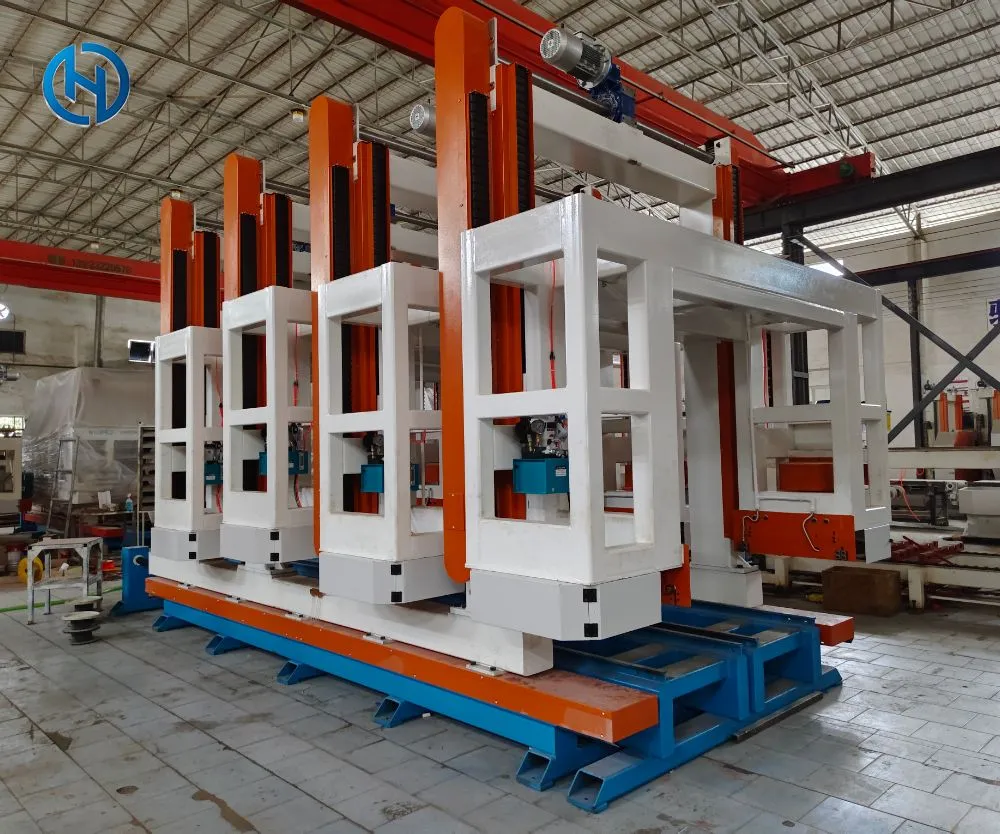

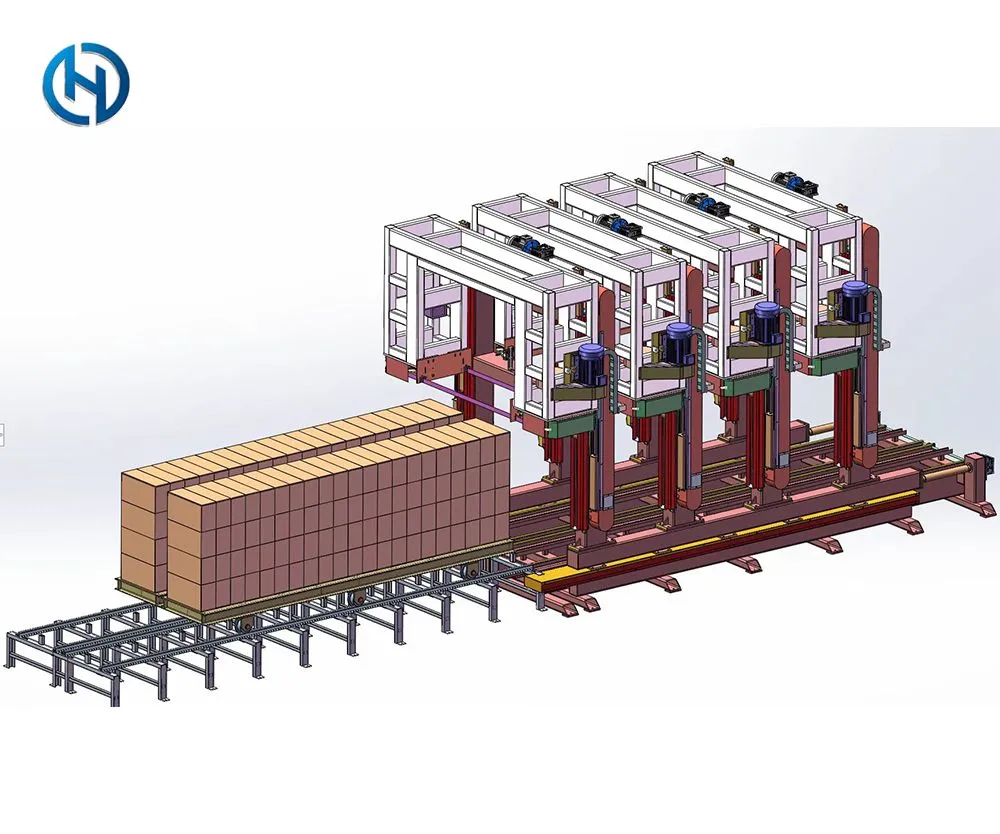

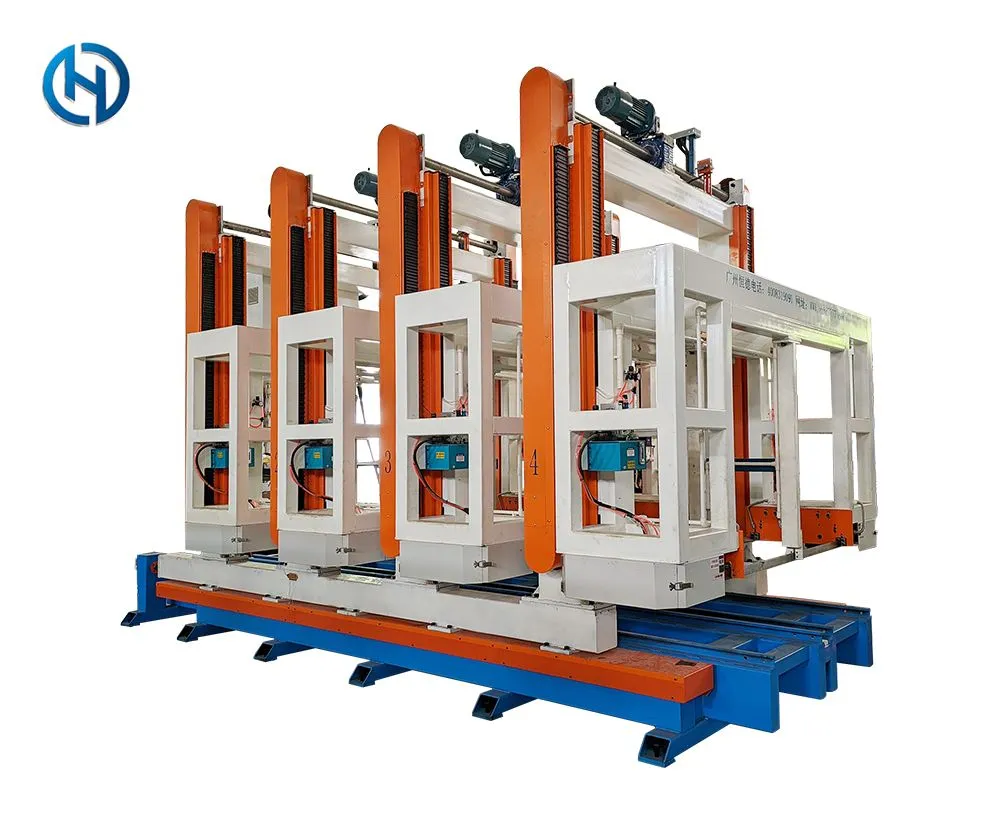

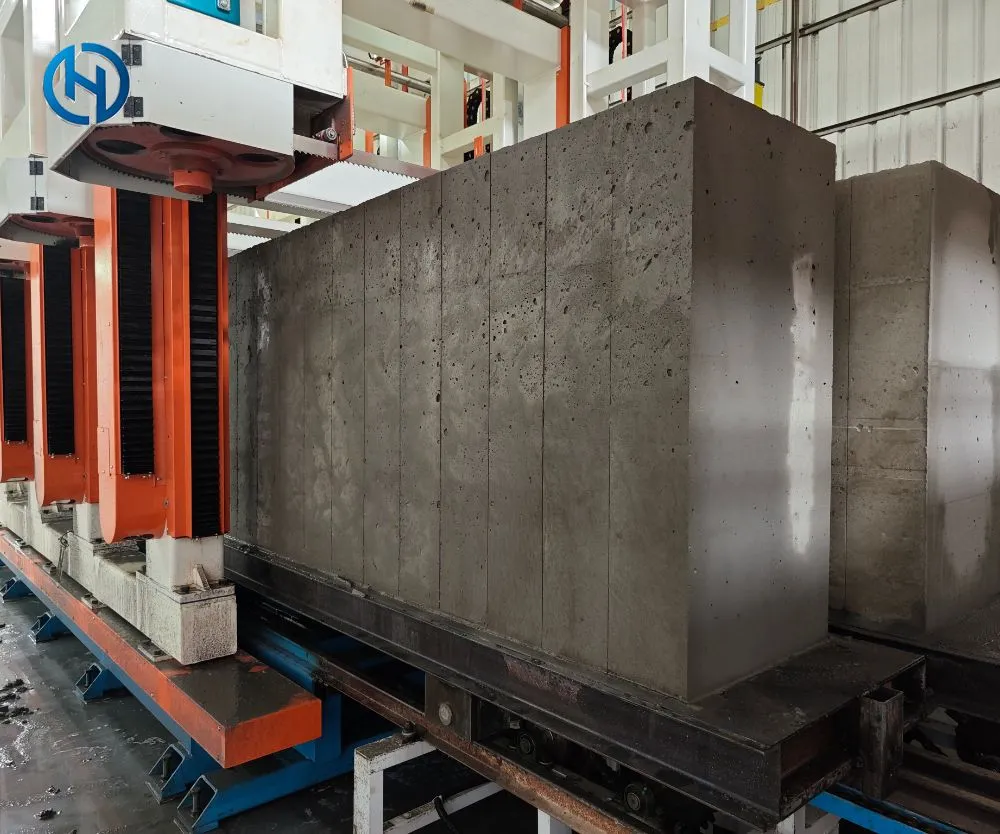

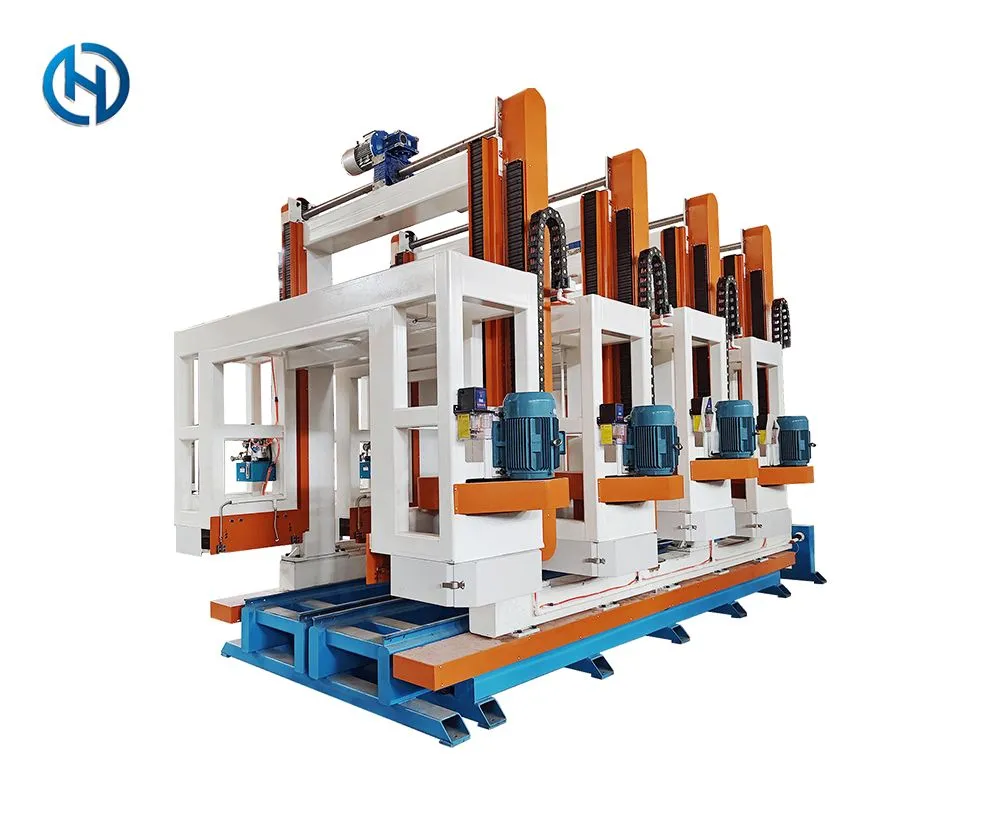

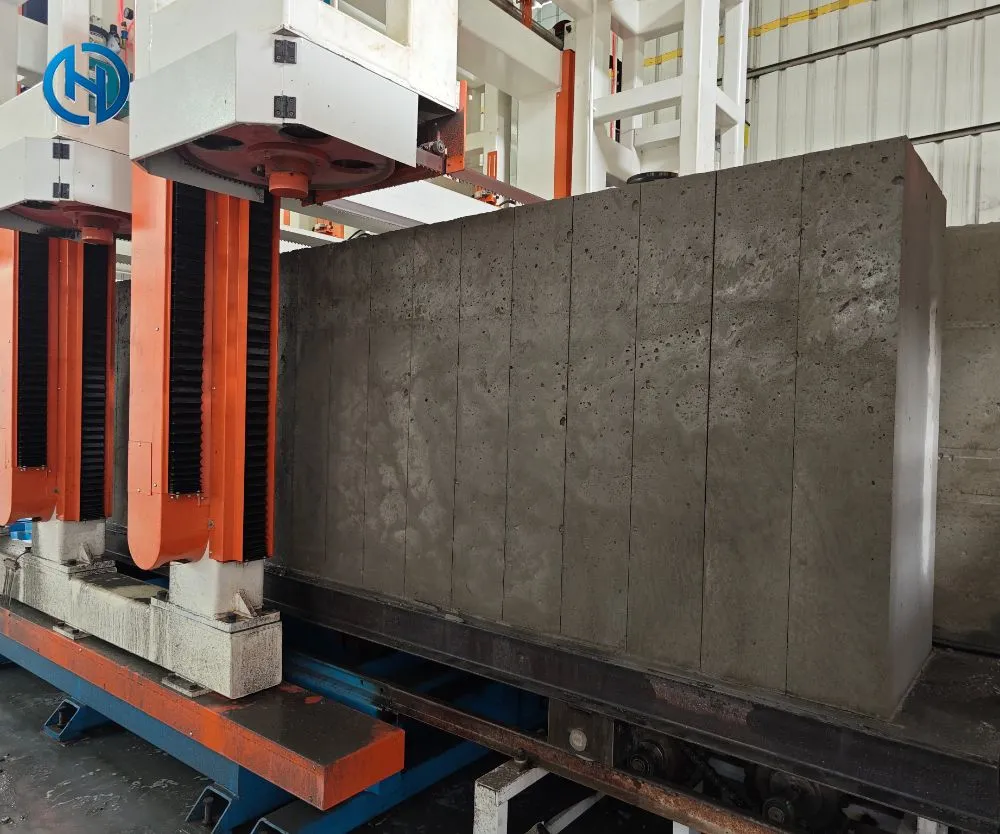

The double-mould four-head gantry vertical cutter is designed to cut two concrete cakes simultaneously, greatly improving production efficiency. Equipped with four vertical cutting heads, it supports cake dimensions of 2.4m × 0.8m × 0.6m, 3.0m × 0.8m × 0.6m, or customized lengths.
The system allows fast two-directional cutting with precise saw blade synchronization, making it ideal for lightweight wall panel and block production lines requiring higher throughput.
Machines in the Concrete Block Production Lines
