Lightweight Wall Panel Production Guide

Lightweight wall panels are used in residential, commercial, industrial and prefabricated construction projects where manufacturers and builders require factory-produced wall components with controlled dimensions.

However, “lightweight wall panel” is a broad product category. It may refer to CLC foamed concrete panels, EPS cement composite panels, lightweight concrete partition panels, reinforced wall panels or other non-load-bearing wall products.

These panels do not necessarily use the same raw materials, molds, reinforcement systems or curing methods. Before selecting a lightweight wall panel production line, manufacturers must first define the finished product they want to supply.

This guide explains the main production stages, equipment requirements, quality-control points and project information needed when planning a lightweight wall panel factory.

What Is a Lightweight Wall Panel?

A lightweight wall panel is a factory-manufactured wall component designed to provide a larger installation unit than an individual masonry block.

Depending on its formulation and construction, a lightweight wall panel may contain:

• Cementitious materials

• Sand or selected mineral fillers

• Fly ash or other approved supplementary materials

• Water

• Foaming agents

• Preformed foam

• EPS particles

• Additives

• Steel wire reinforcement

• Mesh or other reinforcing components

Lightweight wall panels may be considered for applications such as:

• Interior partition walls

• Non-load-bearing infill walls

• Residential buildings

• Apartment projects

• Hotels

• Offices

• Schools

• Hospitals

• Industrial facilities

• Warehouses

• Modular and prefabricated buildings

The suitability of a panel for a specific project must be confirmed through product testing, wall-system evaluation and applicable local standards.

Manufacturers should avoid describing every lightweight panel as load-bearing, fireproof, waterproof, soundproof or highly insulated unless those claims are supported by relevant test results.

Common Types of Lightweight Wall Panels

CLC Foamed Concrete Wall Panels

CLC means cellular lightweight concrete.

CLC wall panels are generally produced by introducing controlled foam into a cement-based slurry. The foamed material is poured into molds and allowed to develop sufficient stability before demolding, cutting, finishing and curing.

A CLC wall panel production system may include:

• Raw material feeding

• Powder and water metering

• Physical foaming equipment

• Mixing equipment

• Panel molds

• Reinforcement positioning

• Demolding equipment

• Cutting and sizing equipment

• Grooving equipment

• Transfer and stacking systems

The final panel properties depend on the formula, foam stability, density, reinforcement, curing and production control.

EPS Cement Wall Panels

EPS cement wall panels contain expanded polystyrene particles or beads distributed within a cement-based matrix.

This production process requires appropriate EPS particle:

• Storage

• Conveying

• Metering

• Feeding

• Mixing

EPS particles and preformed CLC foam are not the same material. The equipment supplier must understand which system the manufacturer plans to use before recommending the feeding and mixing configuration.

Some wall panel formulas may combine several lightweight components, but this should be confirmed through product development and testing.

Lightweight Concrete Partition Panels

Lightweight concrete partition panels may use different mineral aggregates, fillers and additives according to the required density, strength and application.

These panels may be produced with or without reinforcement. Their mold structure, cutting method and curing process should be selected according to the product formulation.

Reinforced Lightweight Wall Panels

Some lightweight wall panels contain steel wire ribs, mesh or other reinforcing components.

Reinforcement may be used to support:

• Panel handling

• Dimensional stability

• Connection details

• Product-specific mechanical requirements

The reinforcement arrangement must be designed for the actual product. Manufacturers should not add reinforcement without considering cover, corrosion protection, panel thickness and applicable standards.

Define the Finished Panel Before Selecting Equipment

The production line should be designed from the finished product backward.

Before requesting an equipment proposal, manufacturers should define:

• Panel length

• Panel width

• Panel thickness

• Panel density

• Panel weight

• Edge profile

• Internal structure

• Reinforcement type

• Required surface condition

• Target daily capacity

• Applicable product standard

• Intended wall application

The factory should also confirm whether the panels will be:

• Cast to final dimensions

• Cast as larger bodies and cut

• Produced in individual mold cavities

• Reinforced before pouring

• Grooved after demolding

• Finished on one or both surfaces

These decisions directly affect the mold, cutting, demolding, handling and automation systems.

Raw Material Evaluation

Raw material evaluation should be completed before the production line configuration is finalized.

Possible materials include:

• Cement

• Sand

• Fly ash

• Mineral powder

• Approved industrial by-products

• Water

• Additives

• Foaming agents

• EPS particles

• Reinforcement materials

Important evaluation factors include:

• Chemical composition

• Particle size

• Moisture content

• Bulk density

• Water demand

• Supply stability

• Storage conditions

• Compatibility with foaming agents

• Compatibility with EPS particles

• Effect on pre-curing

• Effect on demolding

• Effect on cutting

• Effect on final product performance

A locally available material should not be selected only because it is inexpensive. It must also support stable production and the required panel quality.

When a major raw material source changes, the formula and production parameters may need to be adjusted.

Main Lightweight Wall Panel Production Process

1. Raw Material Storage and Feeding

Powder materials, aggregates, lightweight fillers and additives must be stored separately and protected from unsuitable moisture or contamination.

Feeding equipment may include:

• Screw conveyors

• Belt conveyors

• Powder silos

• Hoppers

• EPS particle feeding systems

• Water tanks

• Additive tanks

• Slurry pumps

The exact equipment depends on the materials used.

CLC foaming components and EPS particles should not be treated as the same feeding material. Each requires a suitable storage, conveying and metering arrangement.

2. Batching and Metering

The production formula must be converted into controlled material quantities for each batch.

A batching system may measure:

• Cementitious materials

• Mineral fillers

• Water

• Additives

• Foaming solution

• Preformed foam

• EPS particles

Batching accuracy supports more consistent density, workability and finished-panel quality.

The factory should establish acceptable tolerances and calibration procedures for each metering device.

3. Foaming or Lightweight Material Preparation

For CLC panels, a physical foaming machine may be used to prepare controlled foam before it is introduced into the slurry.

Foam quality can affect:

• Fresh slurry density

• Pore distribution

• Mixture stability

• Surface condition

• Finished-panel consistency

The foaming-agent concentration, water quality, air pressure and foam output should be adjusted according to the selected formula.

For EPS panels, the process instead requires EPS particle storage, feeding and controlled mixing. The particles must be distributed without excessive segregation or damage.

Manufacturers should define whether they are using CLC foam, EPS particles or another lightweight material system before selecting this part of the production line.

4. Mixing

The mixer combines cementitious materials, water, fillers and lightweight components into a suitable slurry.

The mixing sequence is important because inappropriate mixing may cause:

• Foam collapse

• EPS particle flotation

• Material segregation

• Uneven density

• Poor mold filling

• Unstable setting

Mixer volume should be selected according to:

• Batch size

• Mold capacity

• Pouring cycle

• Planned output

• Material characteristics

The largest available mixer is not necessarily the most suitable. The mixing and pouring cycle must match the number of molds and the required production rhythm.

5. Mold Preparation

Wall panel molds determine the basic dimensions and surface condition of the product.

Before pouring, the factory should check:

• Mold cleanliness

• Dimensional condition

• Joint sealing

• Release system

• Side plates

• End plates

• Edge-profile components

• Reinforcement position

• Mold alignment

Mold configurations may be customized for different panel:

• Lengths

• Widths

• Thicknesses

• Tongue-and-groove edges

• Connection profiles

• Reinforcement systems

Frequent changes between many panel specifications can reduce production organization. Manufacturers should plan their principal product sizes before ordering molds.

6. Reinforcement Placement

When reinforcement is required, steel wire ribs, mesh or other components are positioned before or during mold preparation.

A probe insertion and removal system or another positioning device may be used for reinforced panel production.

The reinforcement process should control:

• Position

• Spacing

• Alignment

• Cover

• Stability during pouring

• Removal of temporary positioning components

Reinforcement requirements should come from the panel design and testing process, not simply from the availability of a machine.

Hengde’s wall panel configurations can include specialized reinforcement-positioning, panel clamping and finishing equipment where required by the product.

7. Slurry Pouring

The prepared mixture is transferred into the panel molds.

During pouring, operators should monitor:

• Slurry condition

• Flowability

• Filling uniformity

• Segregation

• Foam stability

• Mold leakage

• Reinforcement movement

• Filling height

The pouring method should minimize unnecessary disturbance to the lightweight structure.

Batch identification should be maintained so finished panels can be traced to the relevant formula and production conditions.

8. Pre-Curing and Initial Setting

After pouring, the panels remain in the molds until the material develops sufficient stability for demolding or further processing.

Pre-curing conditions depend on:

• Raw material formula

• Panel thickness

• Product density

• Ambient temperature

• Humidity

• Mold design

• Curing method

Demolding too early may cause deformation, damaged edges or surface defects.

Waiting too long may reduce mold utilization and make certain cutting or finishing operations more difficult.

The correct timing should be established through production trials.

9. Demolding

Demolding equipment separates the panel from the mold while limiting product damage.

The system may include:

• Demolding hoists

• Spreaders

• Clamping equipment

• Mold-opening systems

• Flipping machines

• Transfer carts

The equipment must match the panel:

• Dimensions

• Weight

• Strength at demolding

• Reinforcement

• Mold structure

A handling system designed for blocks may not be suitable for long wall panels without modifications to the lifting points and clamping arrangement.

10. Cutting and Sizing

Some wall panels are produced in molds close to their final dimensions. Others require cutting or trimming after demolding.

Cutting equipment may be used to control:

• Panel length

• Panel width

• Panel thickness

• Edge condition

• Irregular shapes

• Opening preparation

The cutting system should be selected according to:

• Panel dimensions

• Material density

• Green-body strength

• Reinforcement arrangement

• Required accuracy

• Production capacity

Cutting equipment must not damage reinforcement or cause excessive cracking and edge loss.

Hengde’s available wall panel configurations include CNC flat-cutting equipment and other cutting systems selected according to the required panel format and production arrangement.

11. Edge Grooving and Finishing

Wall panel edges may require tongues, grooves or other connection profiles.

A wall panel grooving machine can process panel edges according to the selected joint design.

The required profile should be confirmed before equipment manufacturing because it affects:

• Cutter arrangement

• Panel positioning

• Connection method

• Installation tolerance

• Finishing requirements

Grooving equipment is primarily a wall panel machine. It should not be described as a universal machine for every lightweight block product.

Additional finishing may include:

• Surface trimming

• Edge repair

• Cleaning

• Dimensional inspection

• Marking

12. Controlled Curing

Lightweight wall panels require suitable curing after forming and demolding.

The curing method depends on the product system and may involve:

• Controlled ambient curing

• Moisture-controlled curing

• Temperature-controlled curing

• Other project-specific arrangements

The curing schedule should be developed according to:

• Raw materials

• Formula

• Panel thickness

• Density

• Local climate

• Required product performance

Manufacturers should not assume that one curing period applies to every product.

Panels should not be packaged or shipped until they have reached a condition suitable for handling and transportation.

13. Inspection

The factory should establish routine inspection for:

• Panel length

• Panel width

• Panel thickness

• Density

• Weight

• Surface condition

• Edge profile

• Straightness

• Reinforcement position

• Visible cracks

• Corner damage

• Product strength

• Moisture condition

Additional testing may be required for:

• Thermal performance

• Acoustic performance

• Fire performance

• Water absorption

• Shrinkage

• Connection strength

• Impact resistance

• Complete wall assemblies

Performance claims should be based on the actual panel specification and applicable test method.

14. Handling, Stacking and Storage

Wall panels require careful handling because their length and geometry differ from ordinary blocks.

The handling system should prevent:

• Excessive bending

• Impact damage

• Edge breakage

• Unstable stacking

• Damage to connection profiles

• Damage to exposed reinforcement

Manufacturers should define:

• Lifting points

• Clamping positions

• Stacking orientation

• Spacer arrangement

• Maximum stack configuration

• Storage surface requirements

• Weather protection

• Loading method

Panels should be packaged according to their dimensions, destination and transportation conditions.

Essential Equipment for a Wall Panel Factory

A complete production line may include:

Raw Material Equipment

• Storage silos

• Hoppers

• Screw feeders

• Belt conveyors

• Water systems

• Additive systems

• EPS particle feeding systems

Batching and Mixing Equipment

• Powder metering system

• Water metering system

• Additive metering

• Physical foaming machine

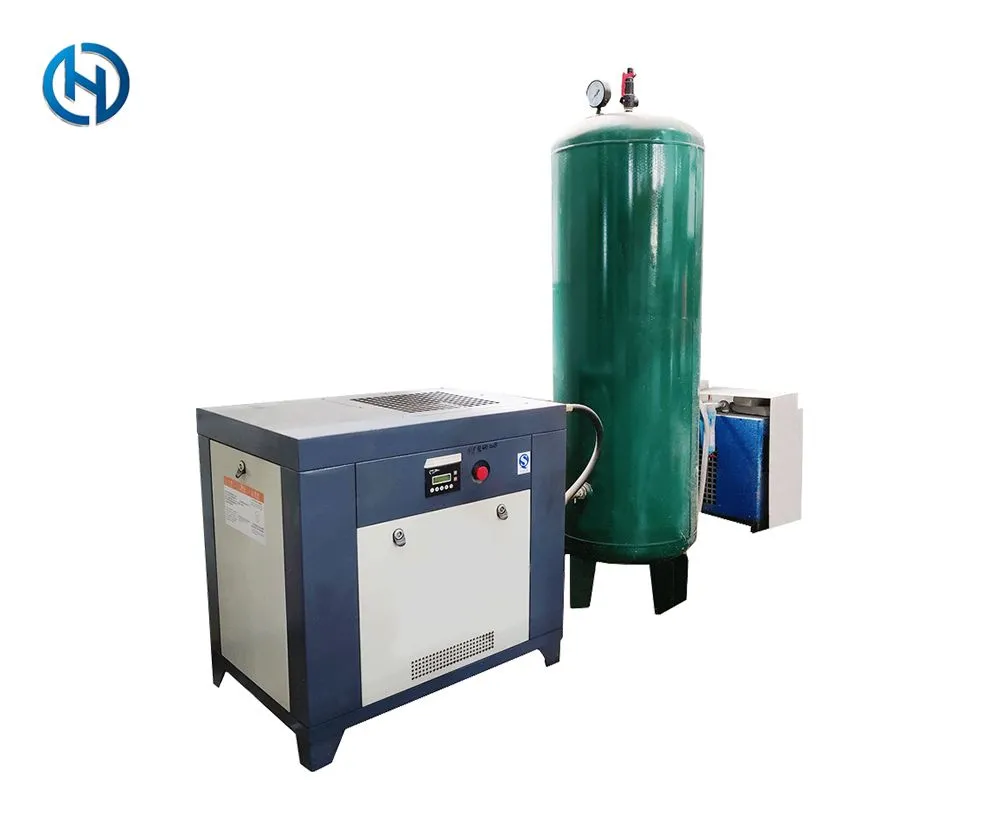

• Air compressor

• Lightweight concrete mixer

• Operating platform

• Slurry transfer system

Forming Equipment

• Wall panel molds

• Pouring system

• Reinforcement positioning equipment

• Mold circulation system

Demolding and Handling Equipment

• Demolding hoist

• Panel clamping machine

• Flipping machine

• Transfer cart

• Conveyor

Cutting and Finishing Equipment

• Panel cutting machine

• CNC flat-cutting saw

• Grooving machine

• Edge-finishing equipment

Control Equipment

• PLC control cabinet

• Electrical control system

• Remote monitoring modules, where required

• Production data and alarm functions, depending on configuration

The equipment list should be developed around the actual panel. Manufacturers should not purchase every available machine without confirming whether it is required by their production process.

How to Select the Right Production Capacity

Production capacity should be based on realistic market demand rather than only the maximum theoretical equipment output.

Evaluate:

• Expected annual sales

• Regular order quantities

• Number of product specifications

• Working days

• Number of shifts

• Mold cycle

• Pre-curing time

• Curing space

• Finished-product storage

• Transportation capacity

• Future expansion plan

A production line with a large mixer but insufficient molds, curing area or handling equipment may not achieve a balanced workflow.

Hengde provides different wall panel production-line configurations and can adjust equipment selection according to capacity, factory size, automation requirements and product type.

Factory Layout Planning

The layout should support a clear flow from raw material arrival to finished-panel shipment.

Important areas include:

• Raw material unloading

• Powder storage

• Lightweight material storage

• Batching

• Mixing

• Mold preparation

• Pouring

• Pre-curing

• Demolding

• Cutting

• Grooving

• Final curing

• Inspection

• Finished-product storage

• Maintenance

• Laboratory testing

The factory should avoid unnecessary crossing between raw materials, molds, green panels and finished products.

Planning should also consider:

• Equipment maintenance access

• Forklift routes

• Crane coverage

• Drainage

• Dust control

• Electrical supply

• Water supply

• Operator safety

• Future expansion

Common Production Problems

Unstable Panel Density

Possible causes include:

• Inaccurate batching

• Unstable foam

• Poor mixing

• EPS segregation

• Changes in raw materials

• Incorrect water content

Panel Deformation

Possible causes include:

• Premature demolding

• Uneven mold support

• Improper lifting

• Insufficient green strength

• Unstable curing

• Reinforcement movement

Cracks and Edge Damage

Possible causes include:

• Incorrect formula

• Rapid moisture loss

• Rough demolding

• Improper clamping

• Unsuitable cutting timing

• Poor stacking

Uneven Dimensions

Possible causes include:

• Worn molds

• Incorrect mold assembly

• Cutting-machine calibration

• Panel movement during processing

• Inconsistent pre-curing

Poor Groove Quality

Possible causes include:

• Incorrect cutter profile

• Weak panel edges

• Improper panel positioning

• Excessive processing speed

• Worn tooling

Production problems should be investigated through material, process and equipment checks rather than attributed to one machine immediately.

Questions to Answer Before Requesting a Quotation

Provide the equipment supplier with:

1. What type of wall panel will be produced?

2. Will the formula use CLC foam, EPS particles or another lightweight material?

3. What raw materials are locally available?

4. What panel dimensions are required?

5. What panel density is targeted?

6. Will reinforcement be used?

7. What edge profile is needed?

8. What daily capacity is planned?

9. How many working shifts are expected?

10. What factory space is available?

11. What utilities are available?

12. What automation level is preferred?

13. Which product standards apply?

14. Is future expansion planned?

15. Is the project a new factory or an upgrade?

Without this information, an equipment quotation may not reflect the actual production requirements.

Hengde Lightweight Wall Panel Production Solutions

Hengde provides customized Lightweight Wall Panel Production Line solutions for manufacturers planning CLC wall panels, EPS lightweight panels and other non-autoclaved lightweight concrete panel products.

Depending on the product and project requirements, a Hengde production solution can include:

• Raw material feeding and metering

• Physical foaming

• EPS particle feeding

• Lightweight material mixing

• Panel molds

• Reinforcement positioning

• Mold pouring

• Pre-curing

• Demolding

• Panel flipping

• CNC cutting

• Wall panel clamping

• Edge grooving

• Transfer systems

• Controlled curing support

• PLC control

Customers who already operate a factory can also select individual Block and Wall Panel Manufacturing Machines to upgrade feeding, mixing, cutting, demolding, grooving or material-handling processes.

Hengde can support production-line planning, equipment selection, factory layout, installation, commissioning preparation and operator training. The final solution is developed according to the customer’s panel specification, raw materials, production capacity and factory conditions.

Plan a Lightweight Wall Panel Factory with Hengde

A stable lightweight wall panel factory begins with a clearly defined product.

Before purchasing equipment, manufacturers must determine:

• Which panel will be produced

• Which lightweight material system will be used

• Whether reinforcement is required

• Which dimensions and edge profiles are needed

• How the panel will be cured

• What capacity the market can support

• Which tests and standards apply

Hengde develops wall panel production solutions according to the actual product rather than applying one standard equipment list to every project.

To prepare a suitable proposal, provide Hengde with:

• Available raw materials

• Target panel type

• Required panel dimensions

• Target density

• Reinforcement design

• Planned daily capacity

• Factory drawings

• Available utilities

• Required automation level

• Applicable product standards

Hengde can then recommend an appropriate lightweight wall panel manufacturing process, equipment configuration and factory layout for your project.

The Lightweight Wall Panel Production Line is an integrated industrial system used to manufacture wall panel production line products such as AAC panels, gypsum boards, and lightweight concrete panels through a fully automated process.

It is widely used in the modern construction materials industry, enabling factories to produce high-strength, lightweight, and energy-efficient wall panels for residential and commercial buildings.

In large-scale production environments, this system combines mixing, molding, curing, and cutting technologies to ensure consistent quality and high output efficiency.

FAQ

What is a Lightweight Wall Panel Production Line?

It is an automated system used to manufacture lightweight construction wall panels such as AAC and gypsum boards.

What materials are used in wall panel production?

Common materials include cement, gypsum, fly ash, and foaming agents.

Is the production line fully automated?

Yes, modern systems use PLC control and automated molding technology.

What is the production capacity?

Capacity ranges from 30,000 m² to over 200,000 m² per year depending on configuration.

Data Insight and Performance Overview

Industrial production data shows:

• Automation efficiency improves output by up to 40%

• Material waste is reduced by 15–25%

• Energy savings reach 20–35% compared to traditional systems

These indicators make the system highly competitive in global construction manufacturing.

Request a Custom Quote

Email: hengdegz@gmail.com

Hengde provides advanced Lightweight Wall Panel Production Line systems, including AAC, gypsum, and cement composite panel manufacturing solutions for global construction industries.

You May Also Like

Why Invest in a Lightweight Wall Panel Production Line?

Best AAC Production Solution Guide
